£300
OFF
14% off

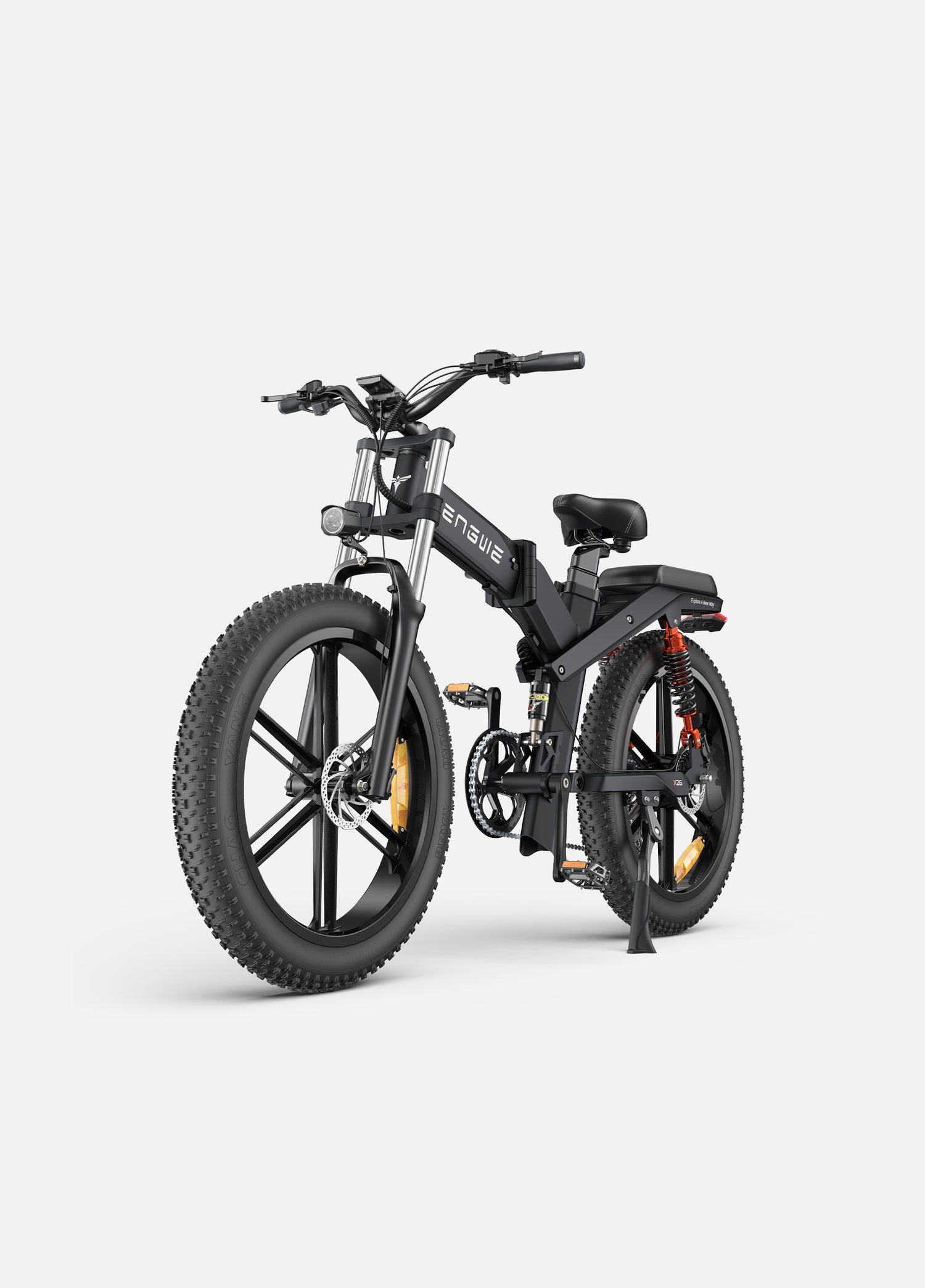

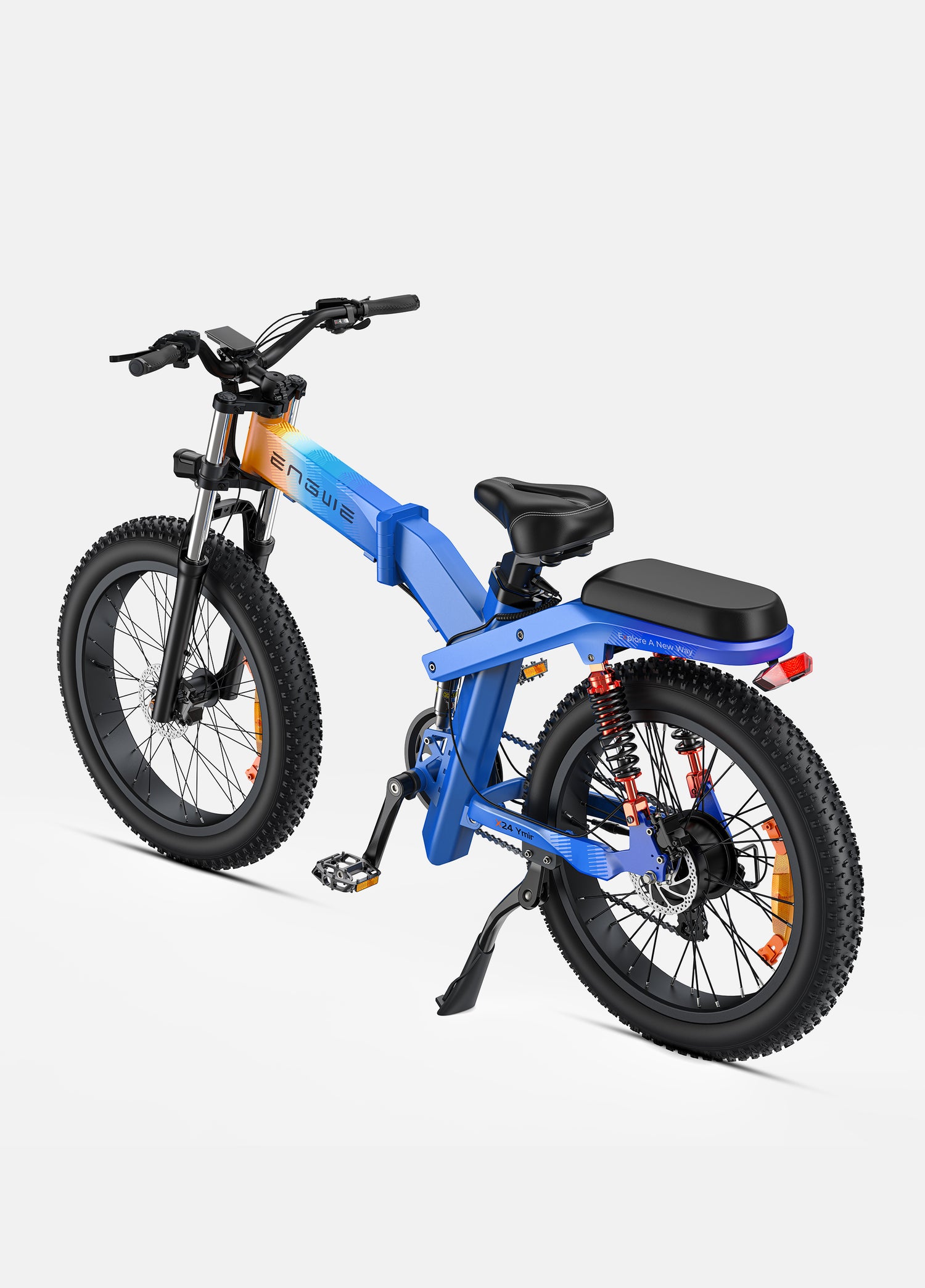

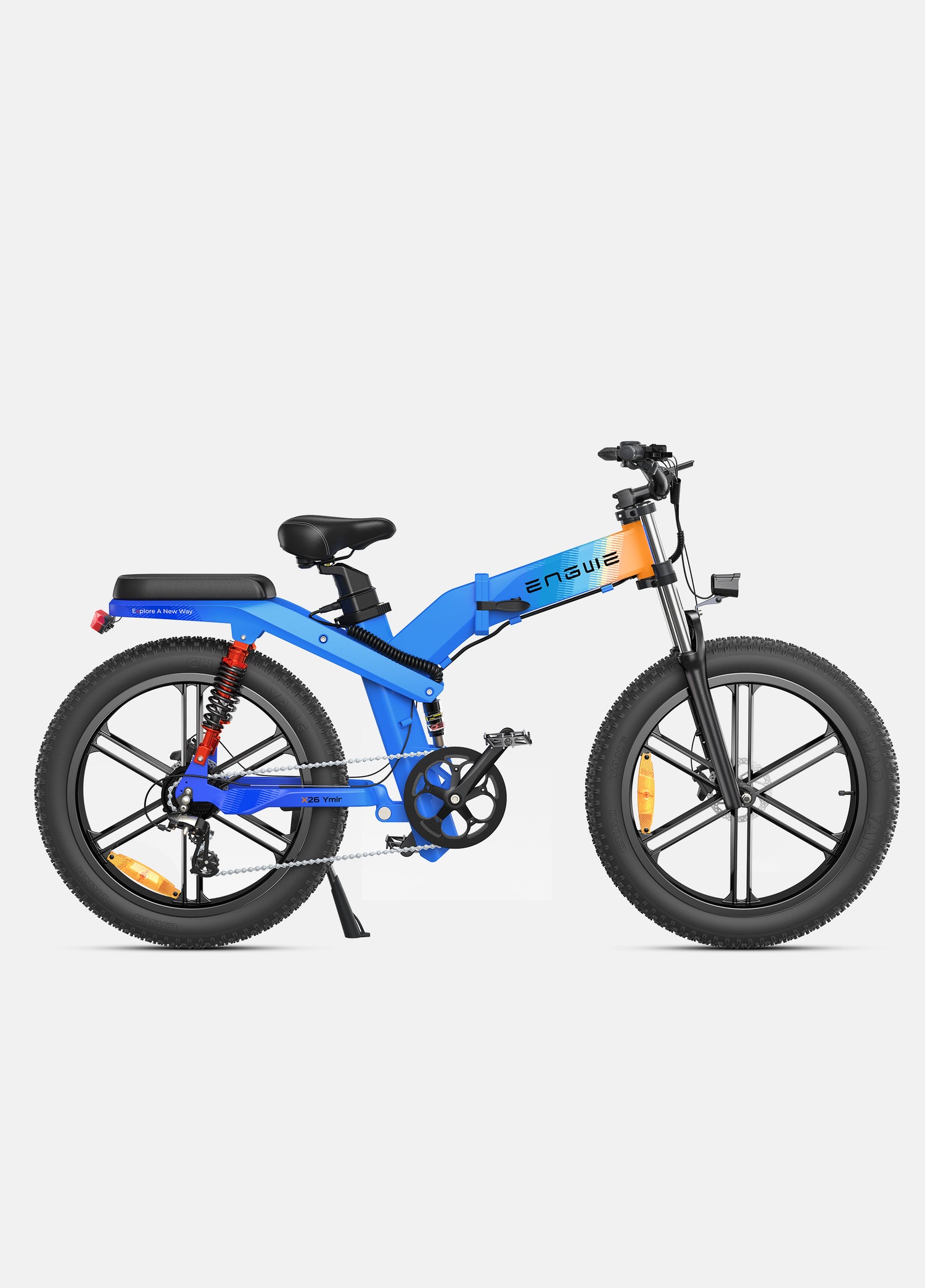

X26/X24/X20

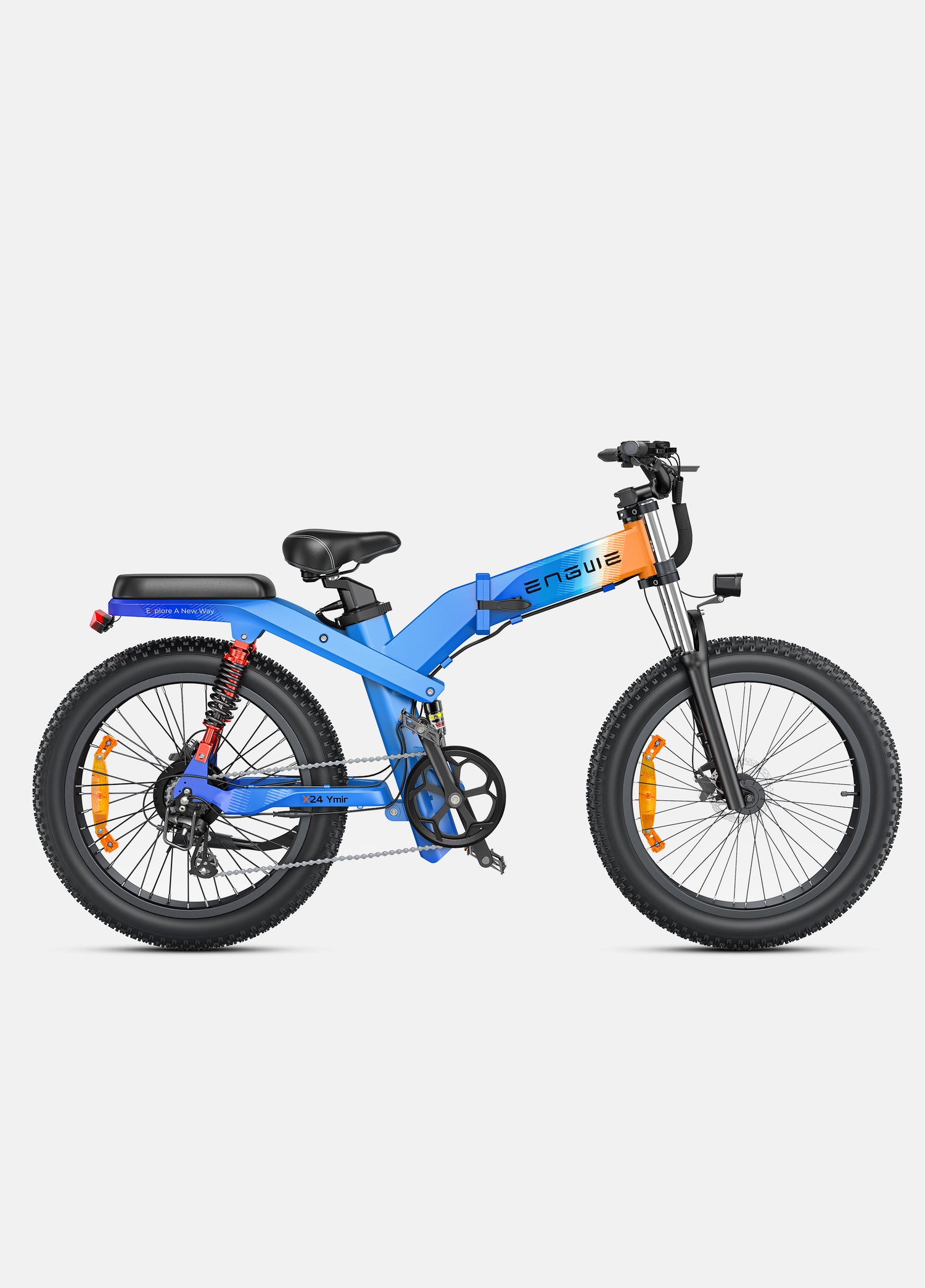

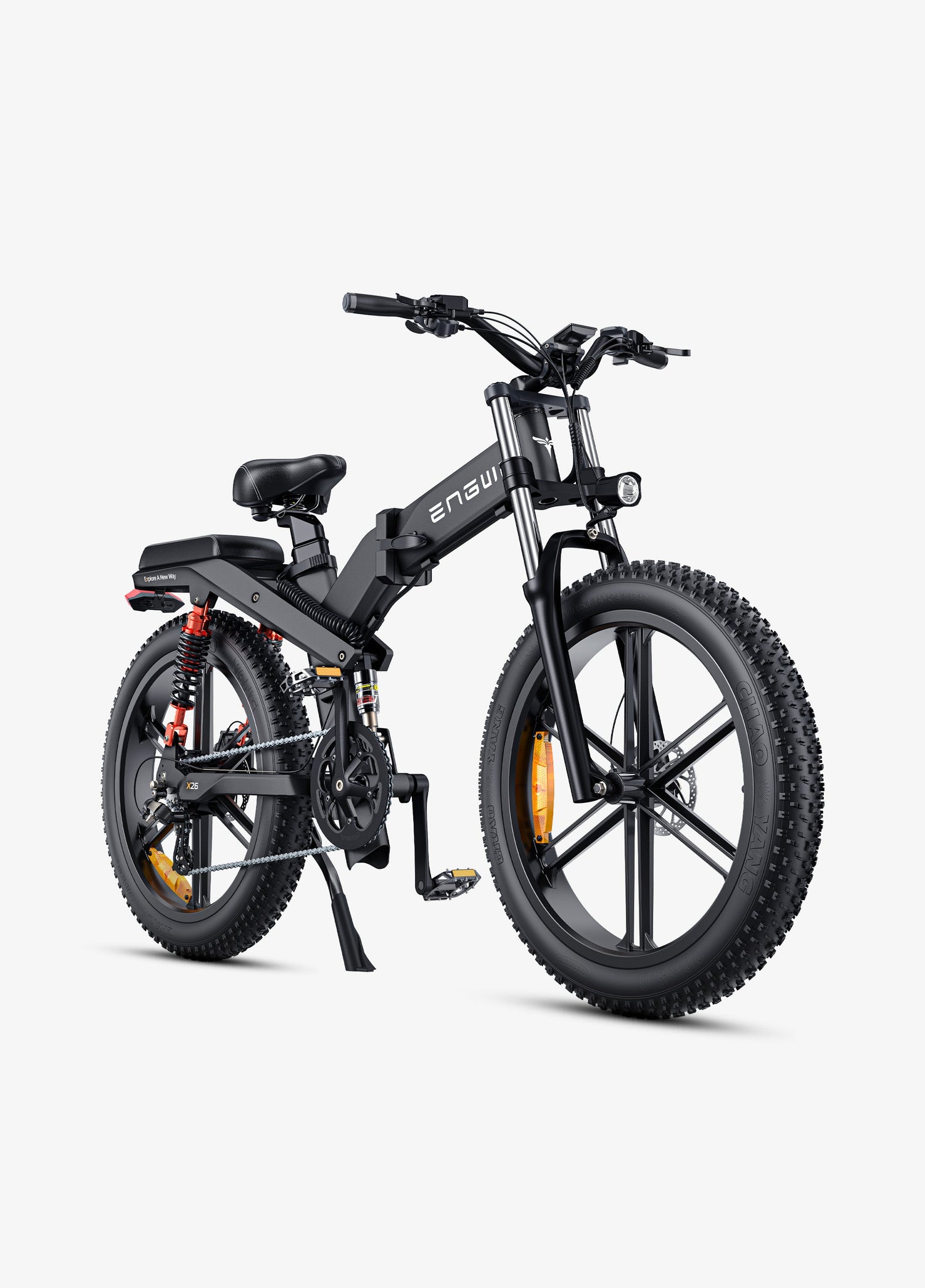

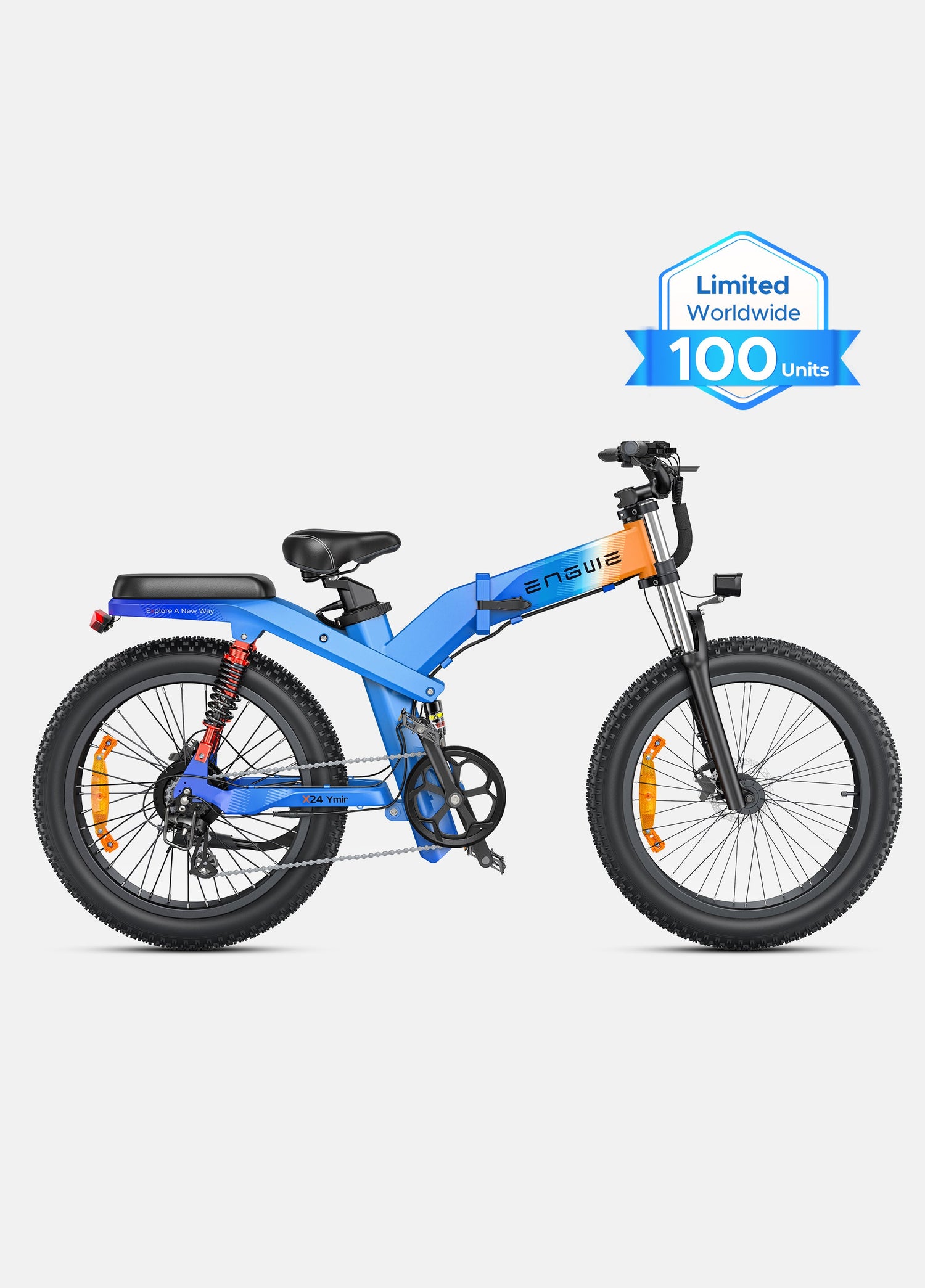

1000W 150KM Triple Suspension Foldable E-bike

£1,799.00 £2,099.00
In Stock

2% OFF For New Customers

Code: Newengweuk

Copy Code
Coupon Copied
Color
Style
Frequently Bought Together
In Cart
Rack Bag
£35.00
In Cart
Bicycle Lock
£28.50
In Cart
Covers
£30.00
In Cart
Inflator Por...
£68.00
Minus Plus
Minus Plus

X26/X24/X20
X - Series Specs
Material：
6061 Aluminum Alloy
Tire Size：
26 X 4.0 Inches

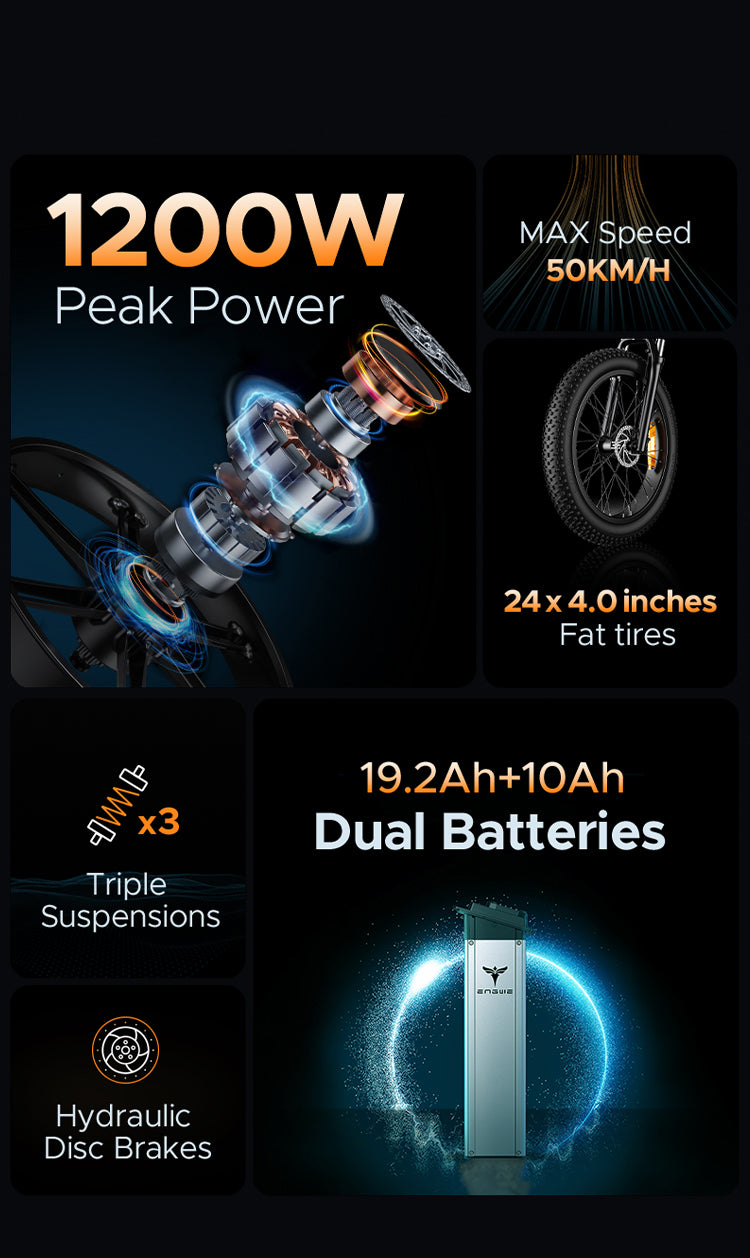

Motor：
1200w(peak) High-Speed Brushless Motor
Torque:
70 N.m
Battery 1:
48v 19.2ah Lithium-Ion Battery
Battery 2:
48v 10ah Lithium-Ion Battery
Mileage:
100 Km (Electric Mode)
150 KM (Pas Mode)
Charging Time:
About 8h
Maximum Climbing Degree:
30°
Brake:
Hydraulic Disc Brakes

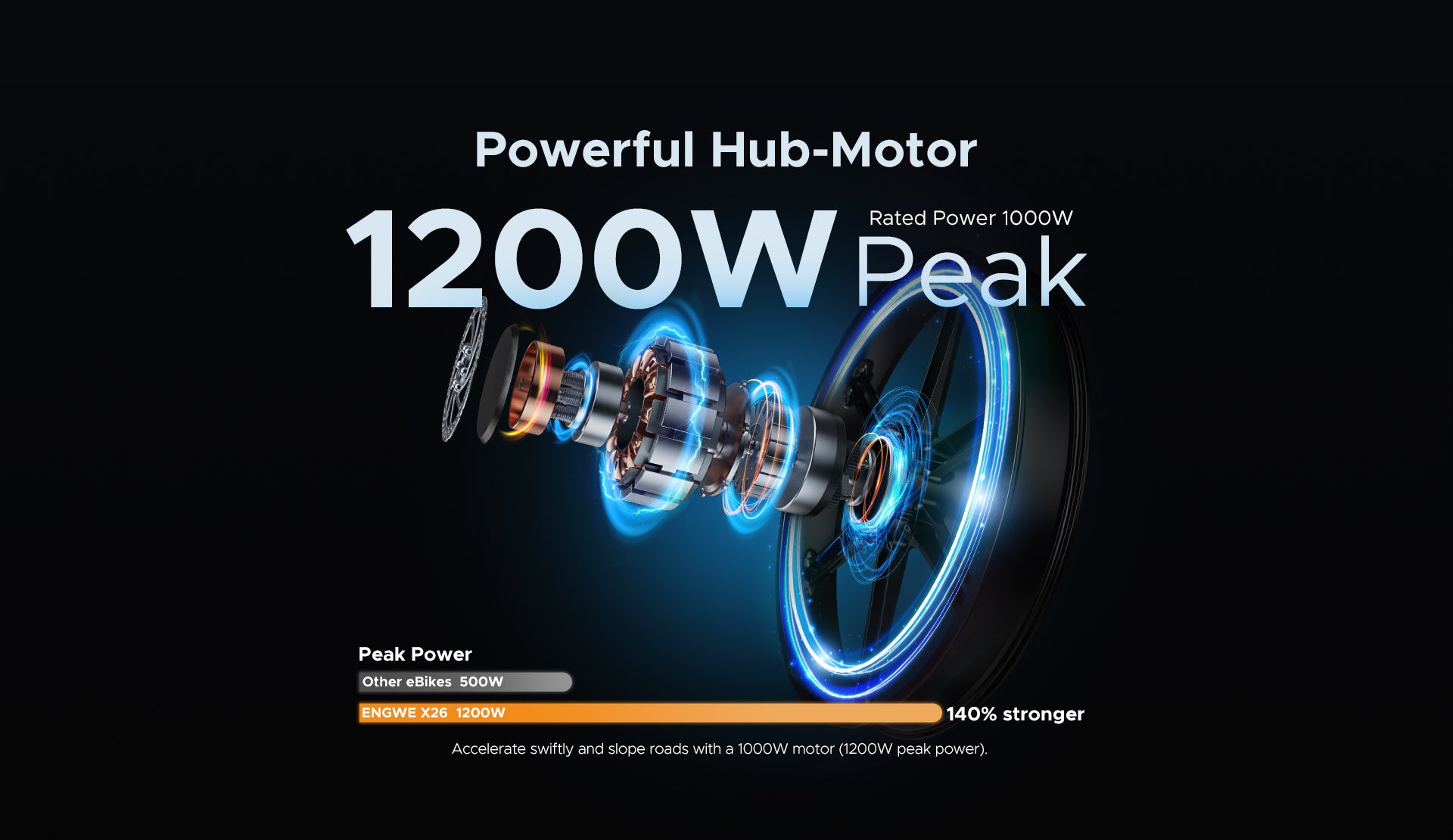

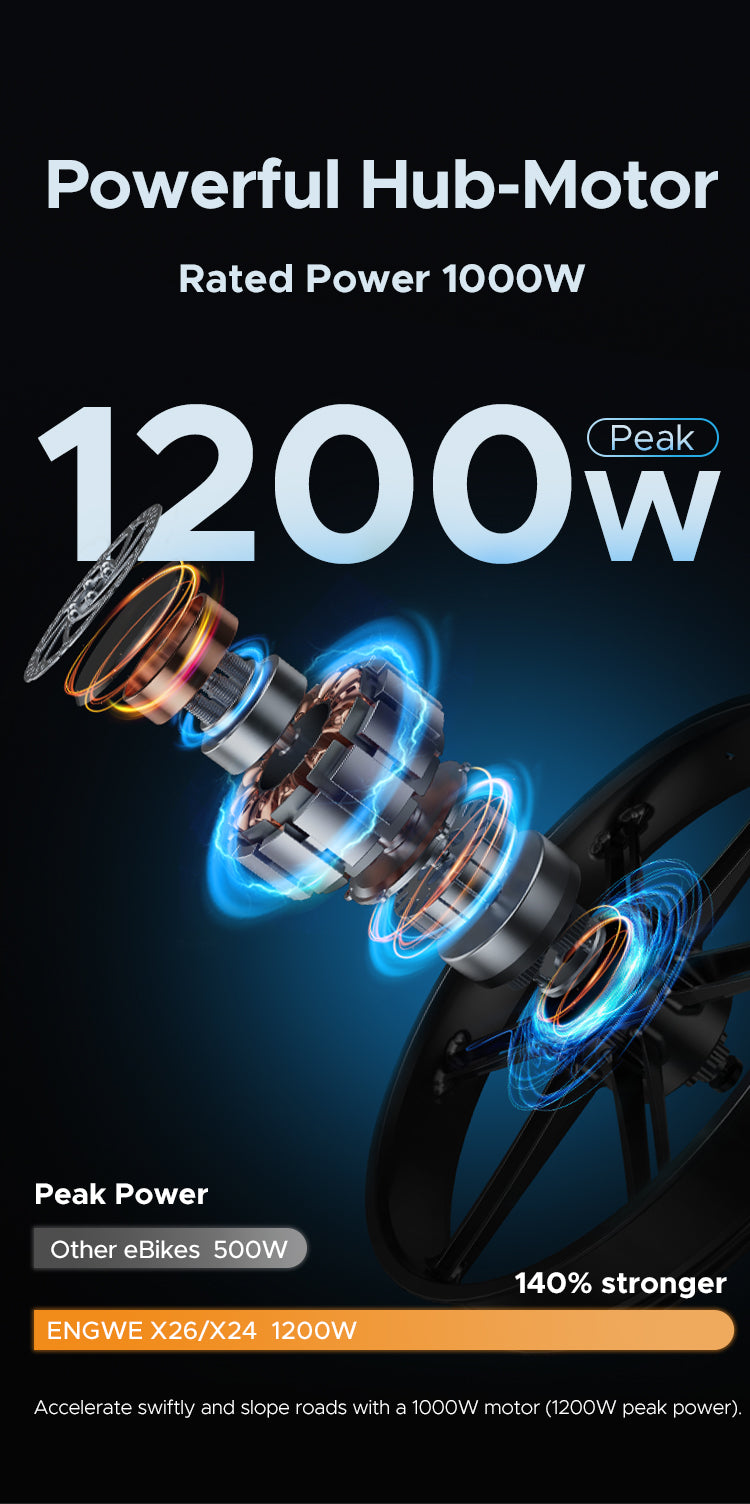

Hub & Power：
Integrated Hub Motor with 1000W power
Transmission System:
Shimano 8 Gears
Bike Weight:
90.39LBS (41KG)
Gross Weight:
112.44LBS (51KG)
Maximum Load:
330lbs (150kg)

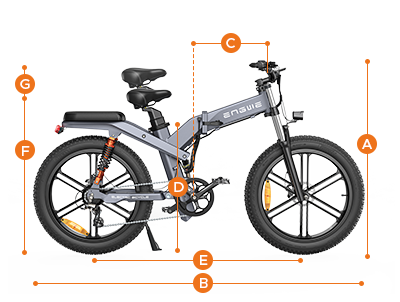

X - Series Size

Rider Height:5.5 (ft) -6.5 (ft)
Payload Capacity: 150KG (330lbs)
Package Dimensions (LWH): 158*35*87CM

A -- Height
114.7CM
B -- Total Length
196.1CM
C -- Reach
41.1CM
D -- Standover Height
76.1CM
E -- Wheelbase
122.1CM
F -- Minimum Saddle Height
93.8CM
G--Maximum Saddle Height
127CM
Please note: There may be a difference of 0~5 CM between measured and actual data.

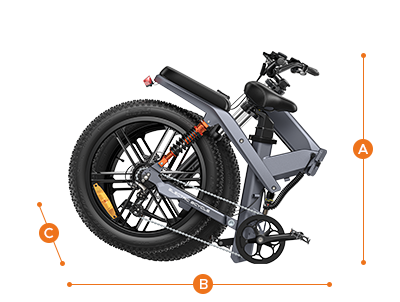

Folded Size: 110*72*120CM

A--Height
120CM
B--Length
110CM
C--Width
72CM
Please note: There may be a difference of 0~5 CM between measured and actual data.
What's the Box ?

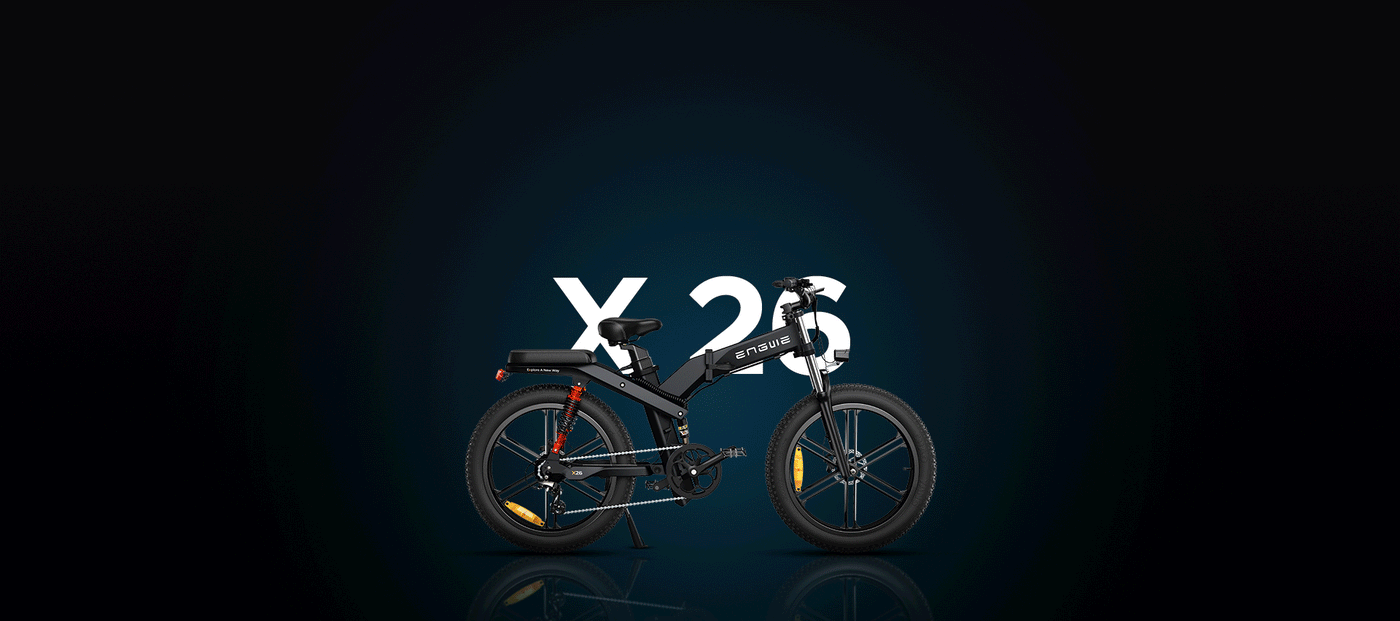

X26

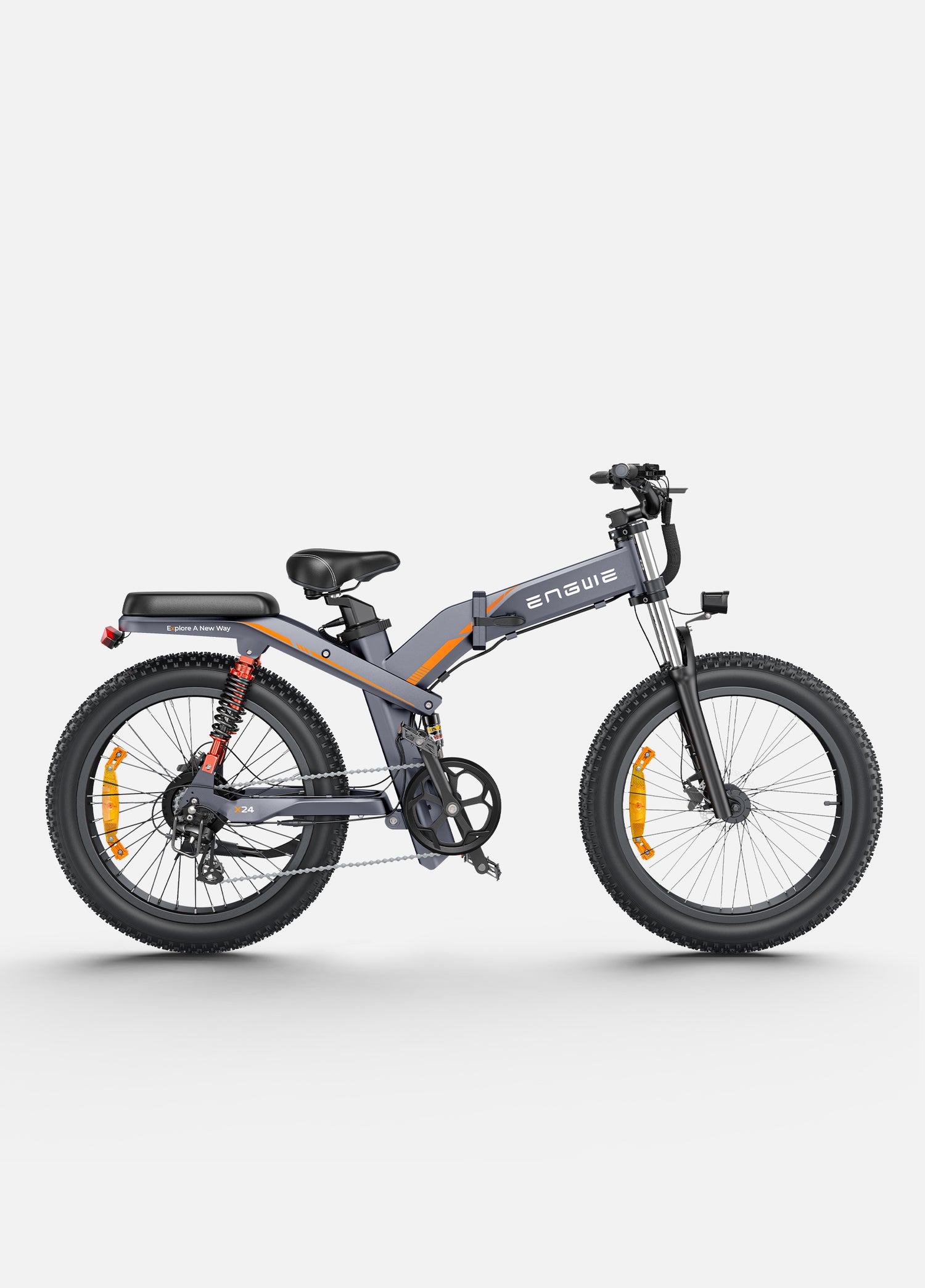

X24

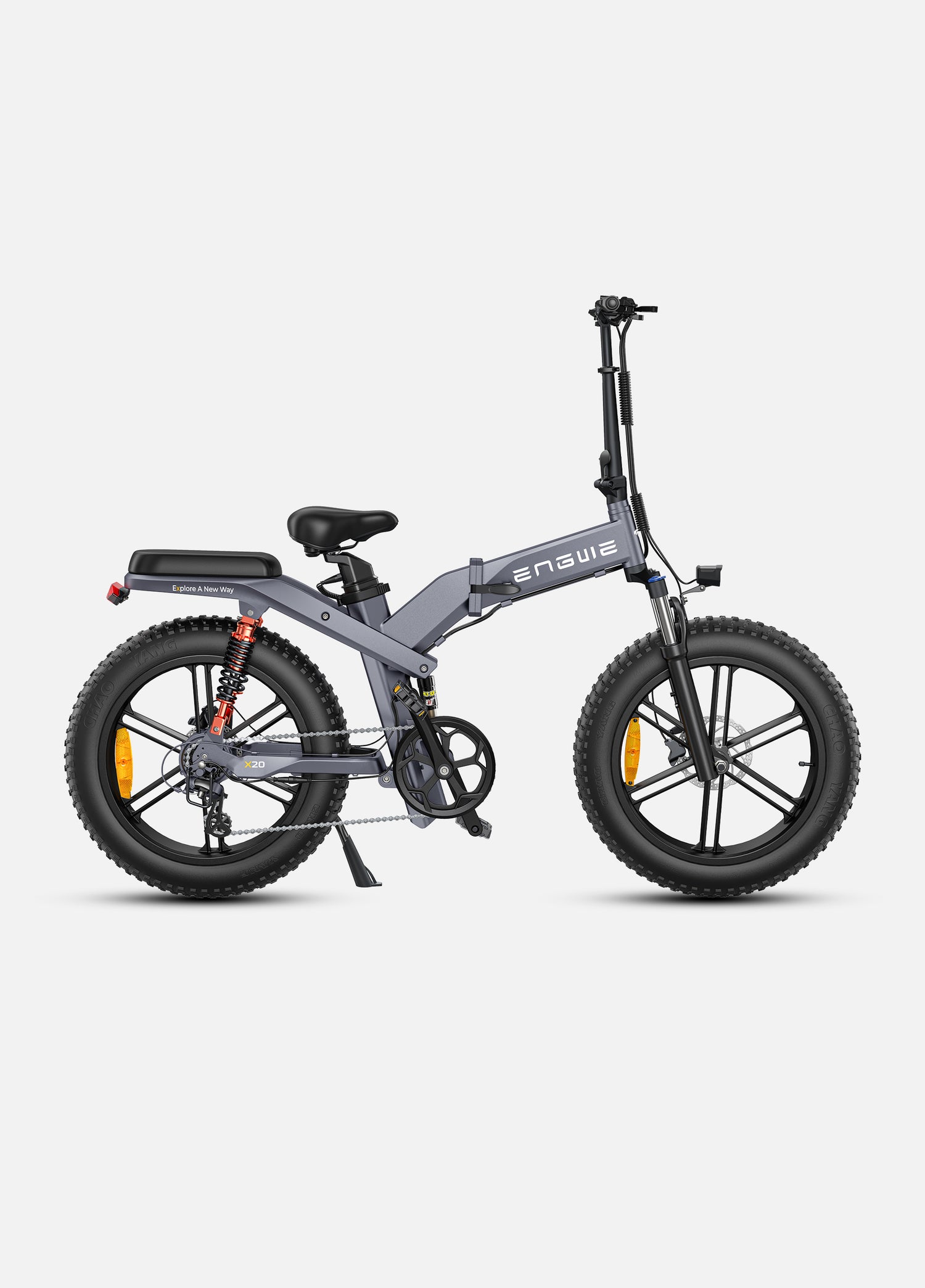

X20
X26 E-bike*1
X24 E-bike*1
X20 E-bike*1
48V 19.2 Ah Battery*1
48V 19.2 Ah Battery*1
48V 14.4 Ah Battery*1
48V 10Ah Battery*1
48V 10Ah Battery*1
48V 7.8Ah Battery*1
Battery Charger*1
Battery Charger*1
Battery Charger*1
Assembly Tools*1
Assembly Tools*1
Assembly Tools*1
Pedals*2
Pedals*2
Pedals*2
Handle Bars Shipped Installed On Bike*1
Handle Bars Shipped Installed On Bike*1
Handle Bars Shipped Installed On Bike*1
English User Manual*1
English User Manual*1
English User Manual*1
English Display Manual*1
English Display Manual*1
English Display Manual*1
Tool Kit*1
Tool Kit*1
Tool Kit*1
FAQ

Q1: About shipping
*In Stock: Once your order confirmation is complete, we will begin shipping within the next 2 business days. This means that your item will start shipping on the 3rd business day after your order is confirmed.
*Pre Sale: Please refer to the product page for detailed pre-order shipping times.
*No Stock: Please see product page for detailed pre-order shipping times.

*Shipped from UK warehouse, it takes approximately 5-7 working days to receive your e-bike. (Remote areas and islands are excluded from delivery.)
*If you have other special requirements or urgent delivery date, please communicate with our customer service team when placing your order, we will try our best to meet your needs.

Q2: X26 User Manual
Please click here to view the user manual.

Q3: X24 User Manual
Please click here to view the user manual.

Q4: X20 User Manual
Please click here to view the user manual.

Q5: How to install X26 e-bike?
Please click here to view the video steps.

Q6: Are there any unboxing or common setup videos?
Here are videos of Common Setup Questions for your reference(Please click the words to watch the video):
Uboxing of X26
Reset to factory of X26
Activate the throttle of X26
Deactivate throttle of X26
Change KM to Mile(Or change mile to KM) of X26
Lift the speed limit 50km/h (31 mph) of X26
Setting the speed limit 25km/h (15.53 mph) of X26
Dual battery installation sequence of X26

Uboxing of X20
Reset to factory of X20
Activate the throttle of X20
Deactivate throttle of X20
Change KM to Mile(Or change mile to KM) of X20
Lift the speed limit 50km/h (31mph) of X20
Setting the speed limit 25km/h (15.53mph) of X20

Q7: I need to buy parts, how can I buy them?
We recommend that you consult with the corresponding seller to purchase. If your seller does not provide it, you can contact
Customer Service email: service@engwe-bikes.com

Q8: X26/X24/X20 Can't turn on or lose power while riding:
Please click here to view the video steps.

Down
Down

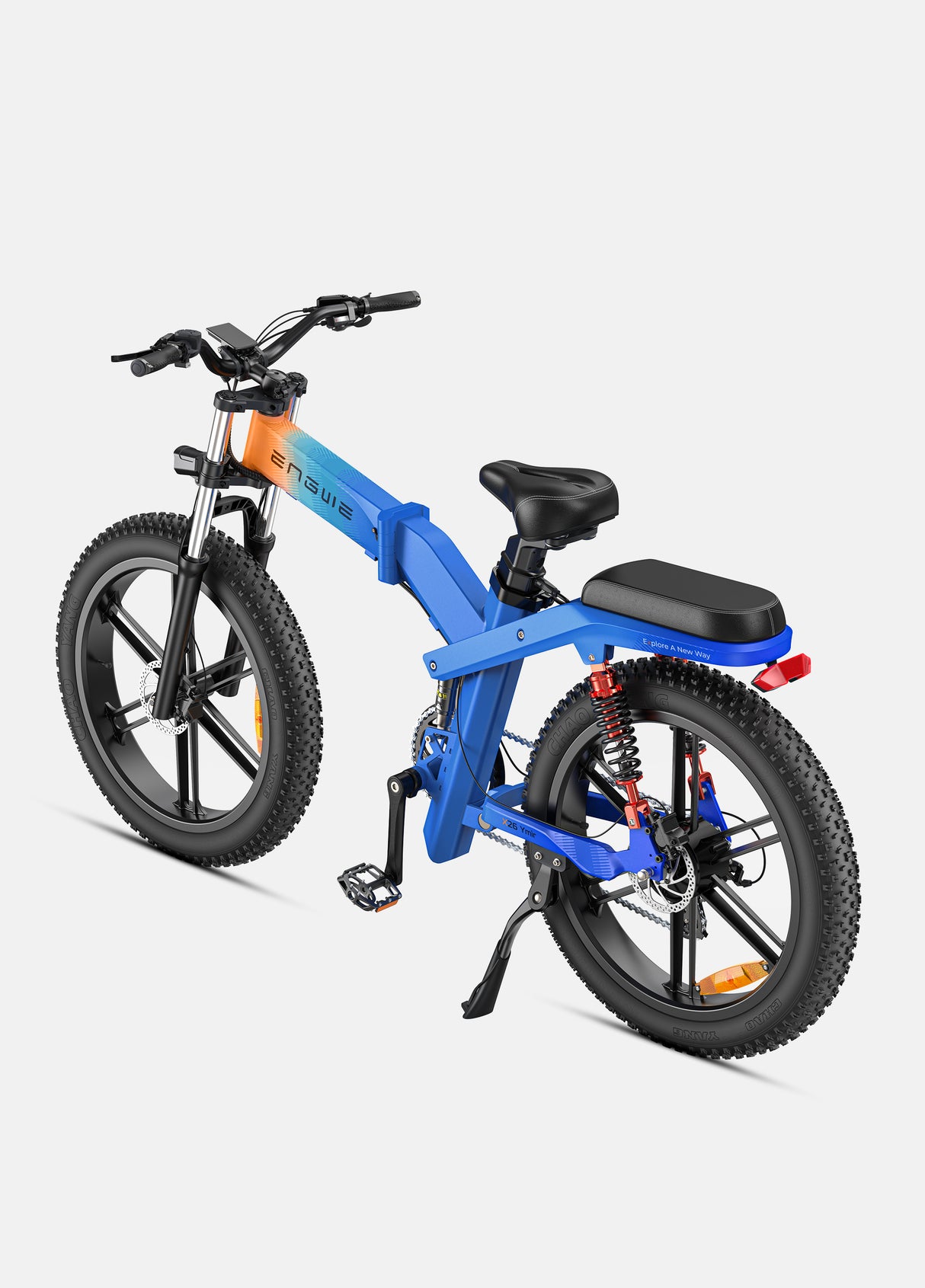

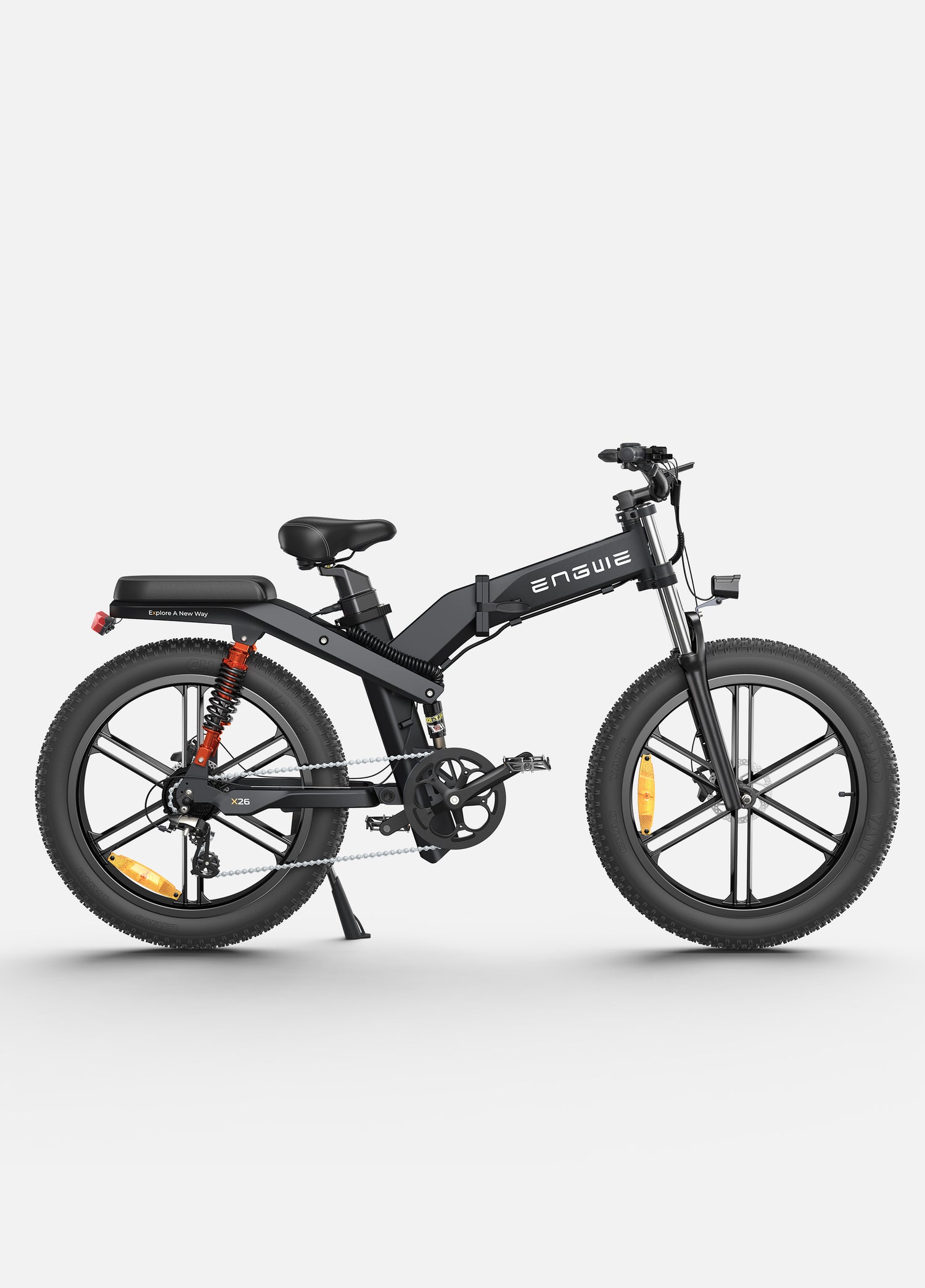

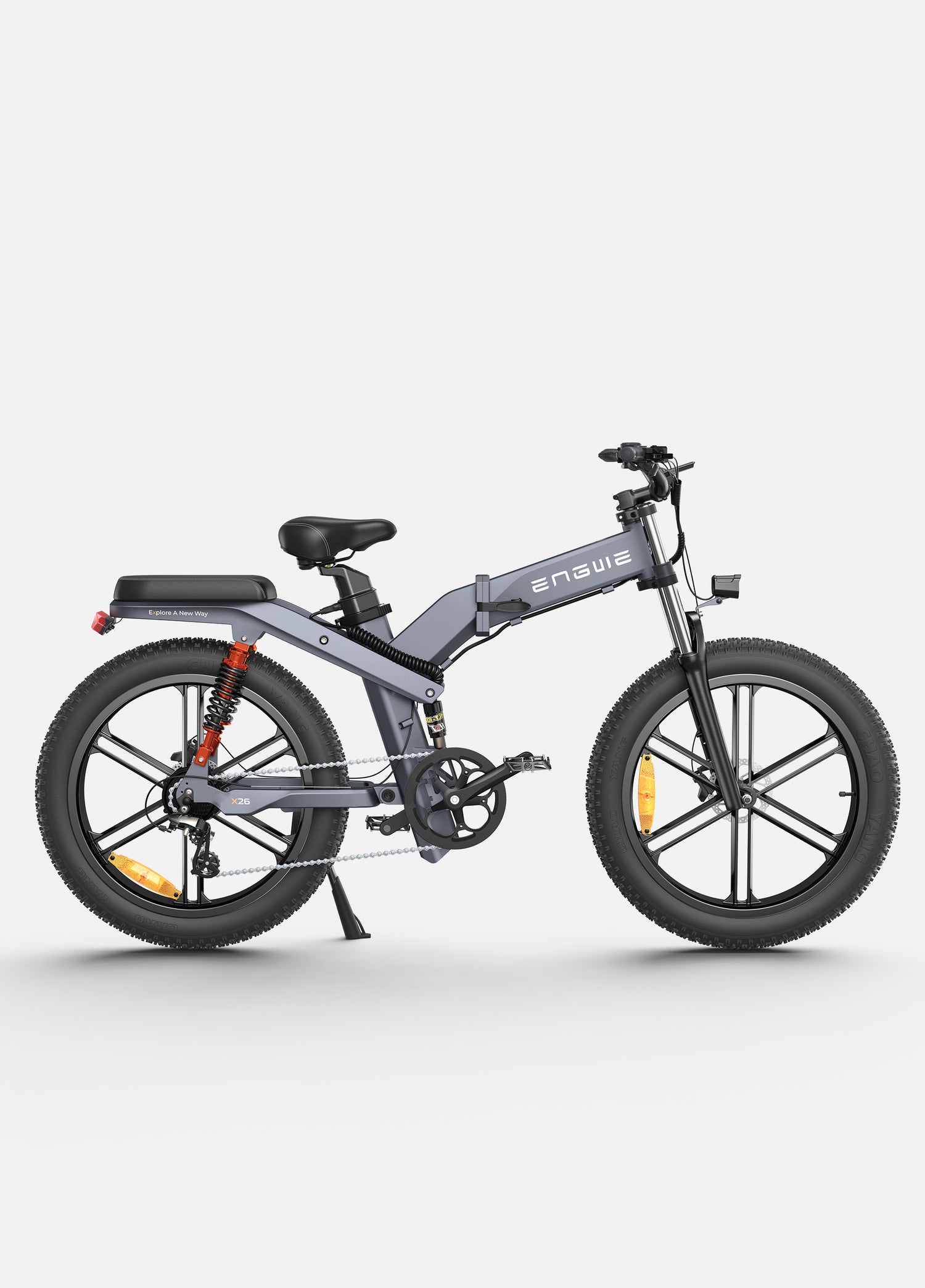

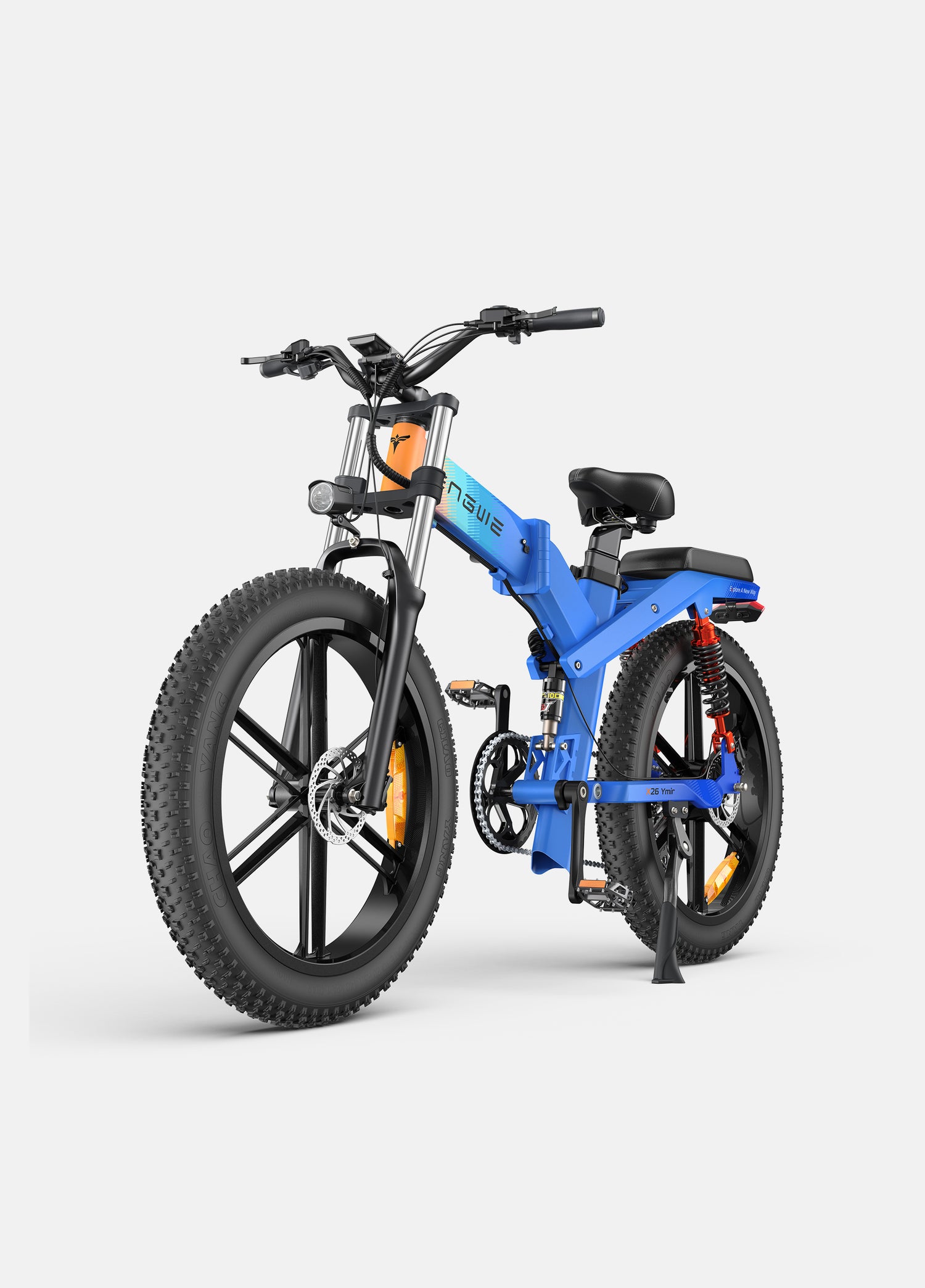

X26
X24

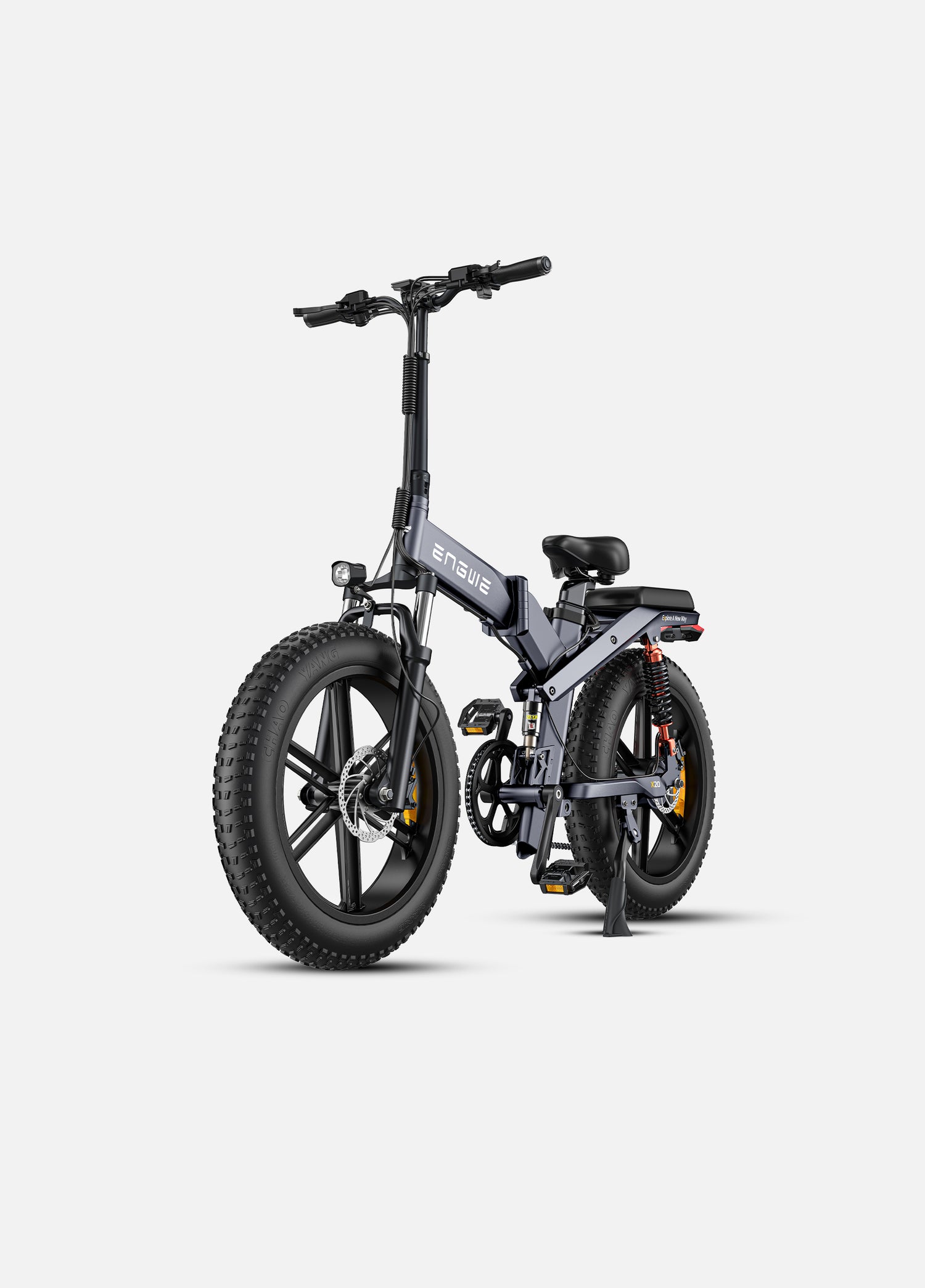

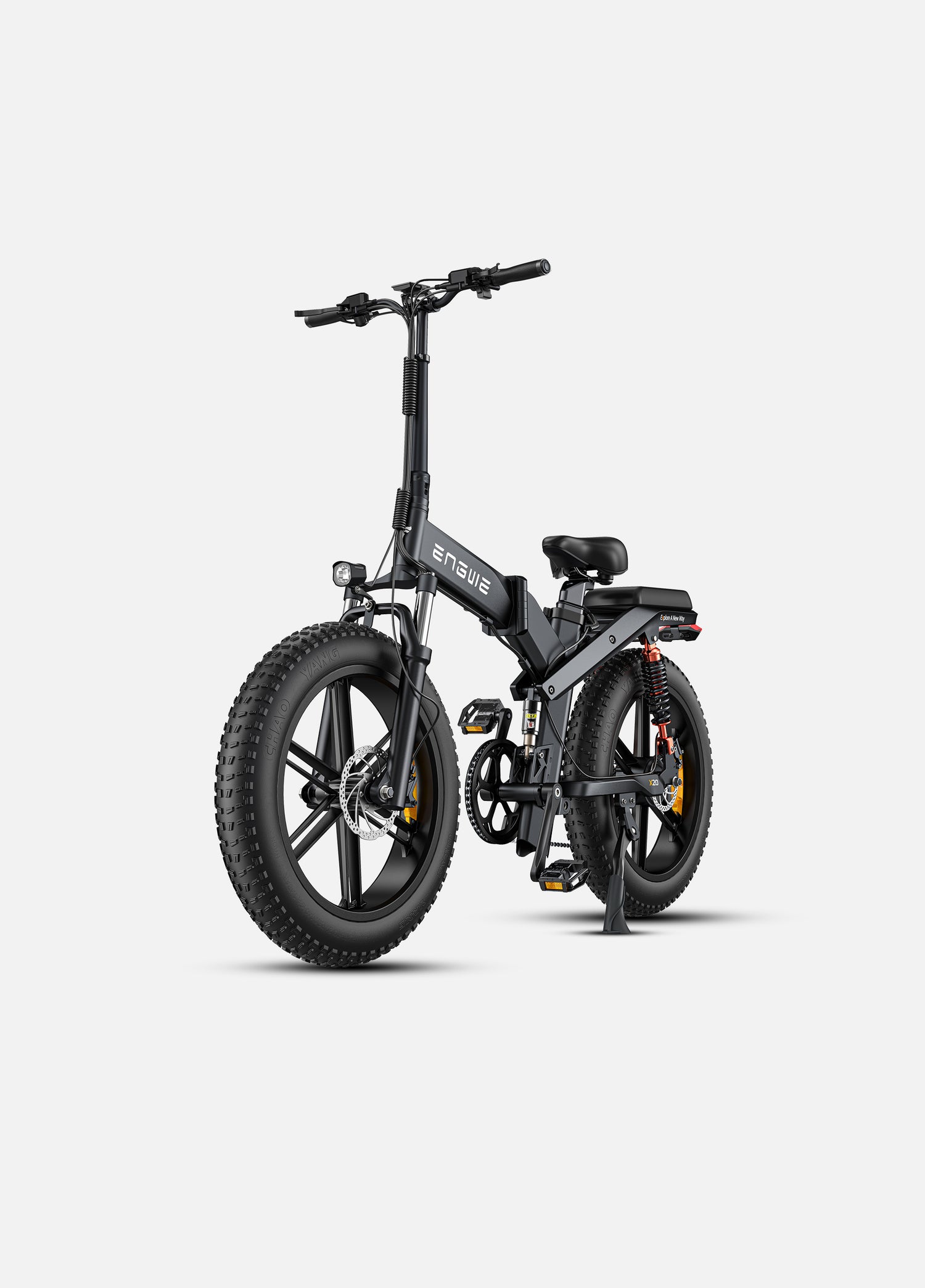

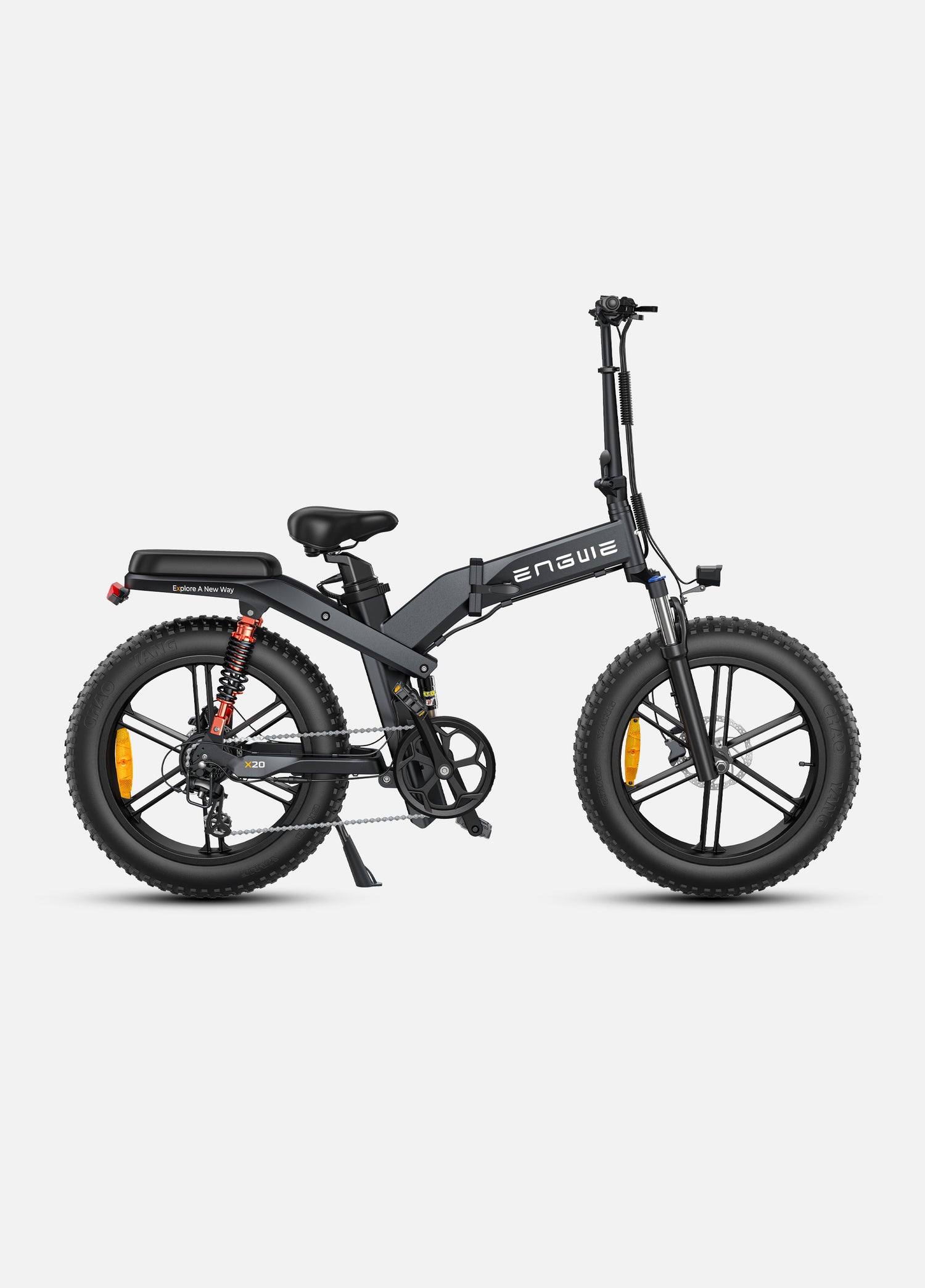

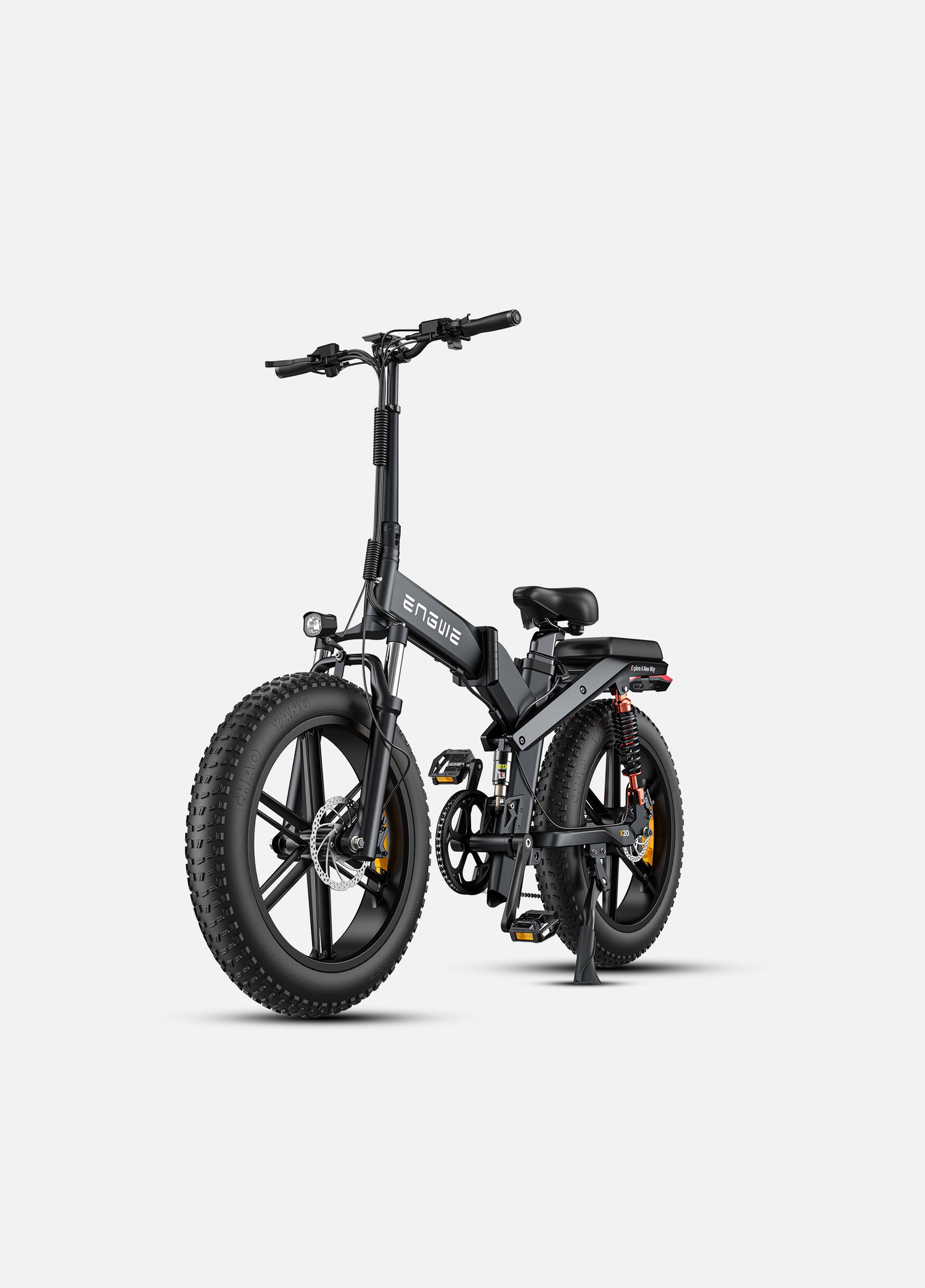

X20
X26/X24
X20

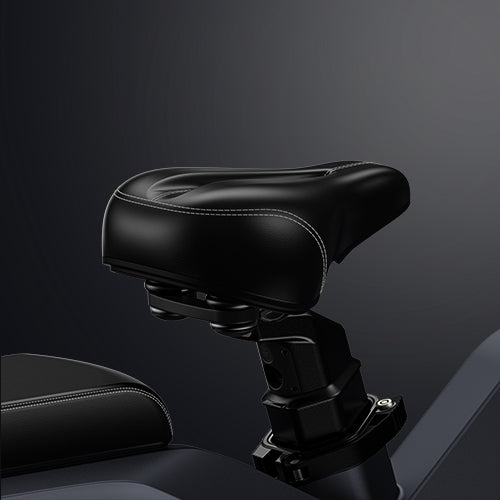

Leather Seat

Height Adjustable-Max Comfortability-Max Range Up to 25cm

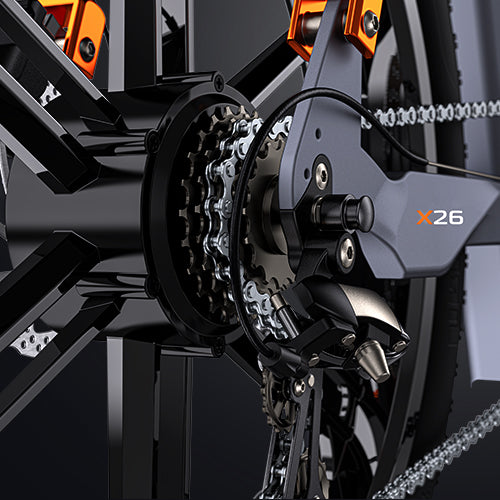

Shimano 8-Speed Gears

Smooth Transmission-IP65 Waterproof Speed Sensor160mm Disc Brac Rotor

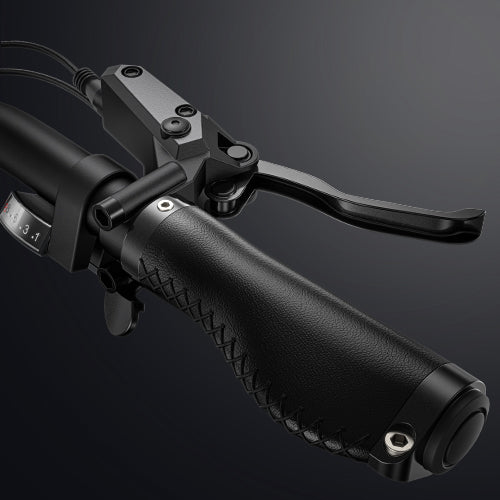

Hydraulic Disc Brakes

Front Brake&Rear Brake-Excellent Braking Power-Max Braking Distance:12m

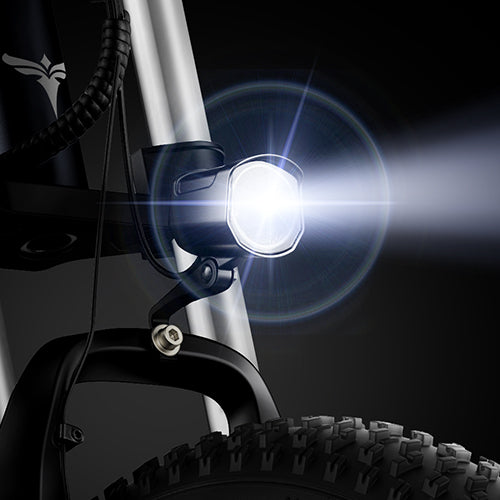

Keeping You Safe，light the way ahead

High-brightness front LED light has a long range, without fear of the black night road.

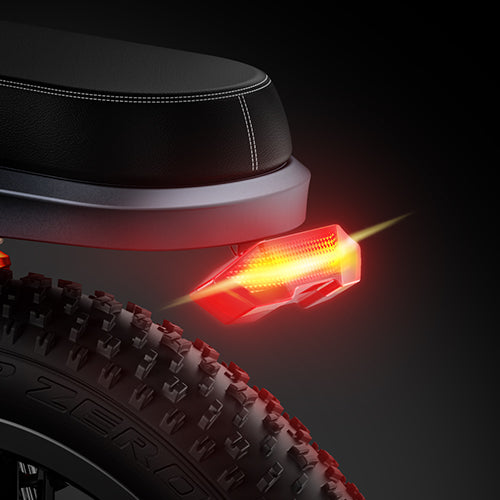

Ride Smarter, Ride Safer

Bright pulsing rear indicators,so other road users know your next move.Keep you visible to all.

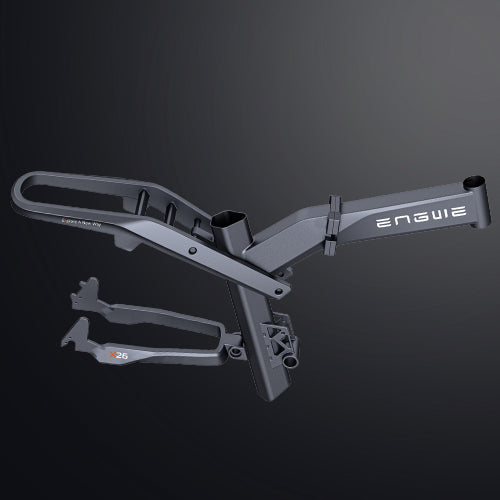

Aluminum Alloy Fram

High Strength-Light Weight-Antioxidant

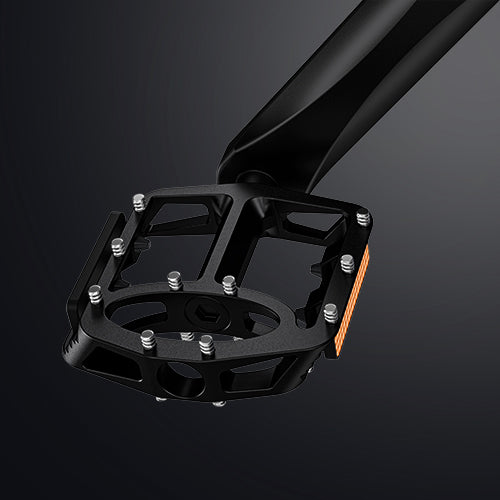

Alloy Pedals&Cleats

Anti-Skid Cleats-Durable and Stable-Wider Pedal Area:80mm

Side-By-Side Comparison

X26 X24 X20
Power1000W 1000W 750W
Battery19.2Ah + 10Ah 19.2Ah + 10Ah 14.4Ah + 7.8Ah
BrakesHydraulic Disc Brakes Hydraulic Disc Brakes Hydraulic Disc Brakes
Hub & PowerIntegrated Hub Motor with 1000W power Spoke Motor with 1000W power Integrated Hub Motor with 750W power
Color DisplayBC281 BC281 BC281
