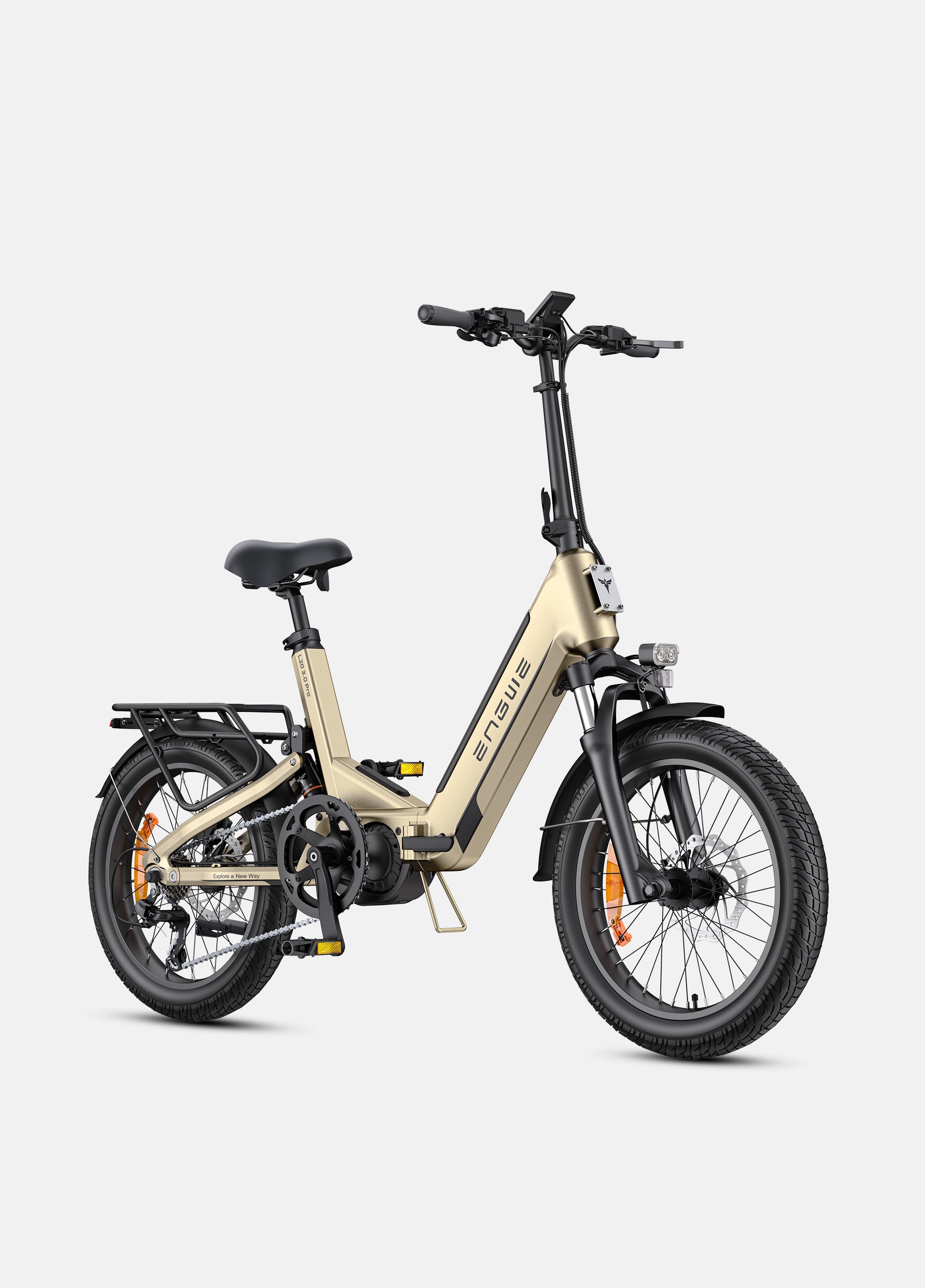

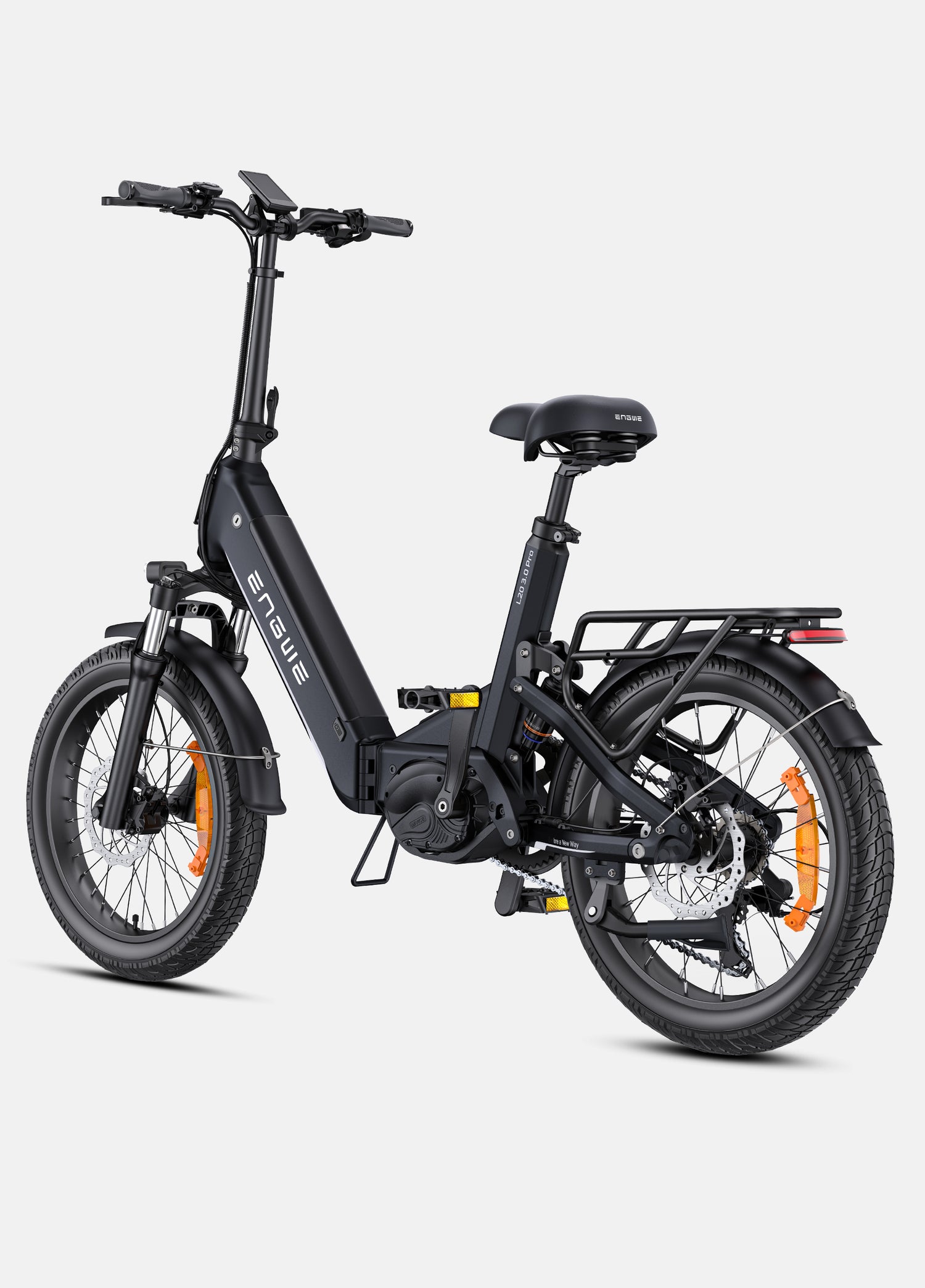

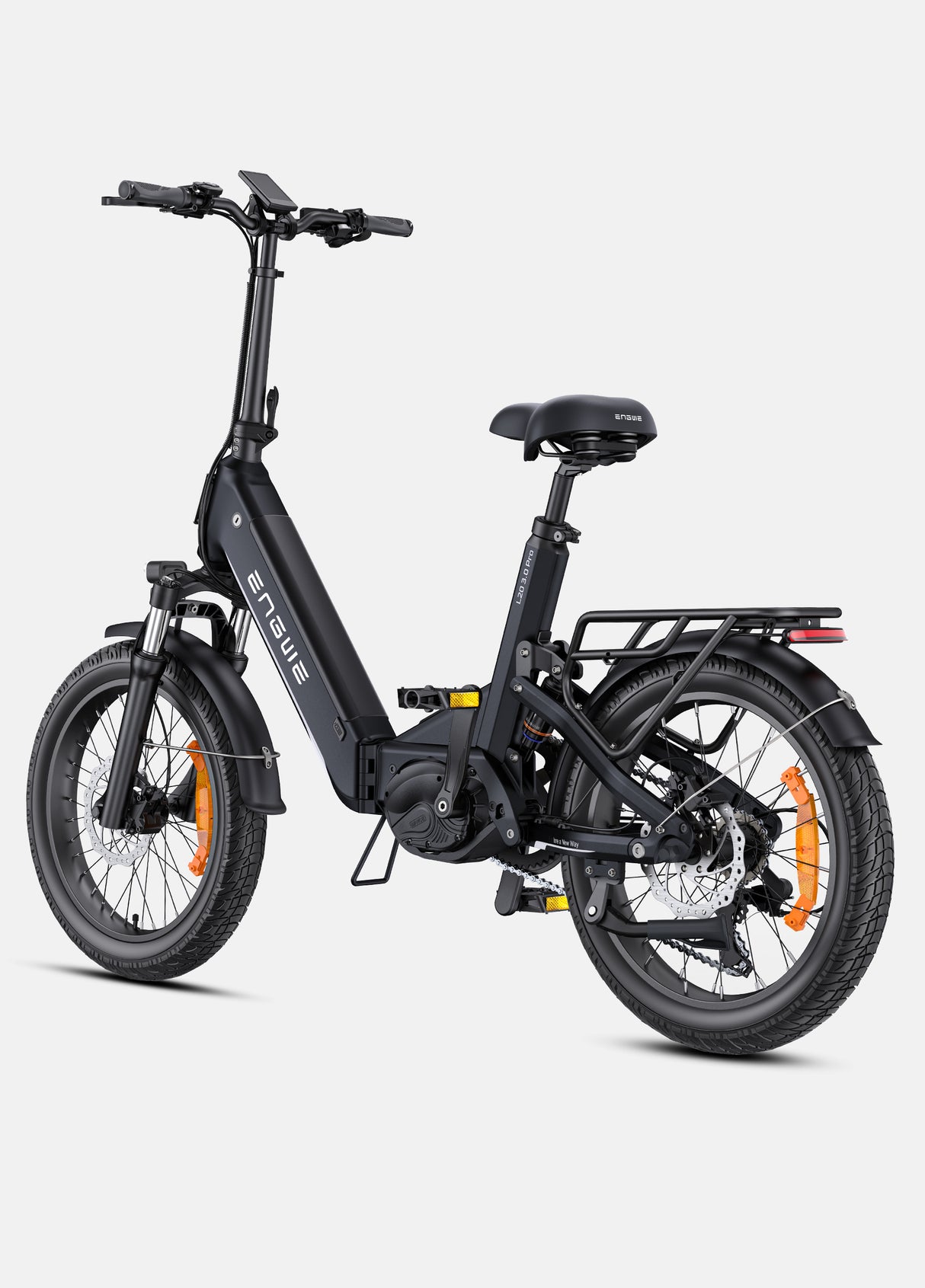

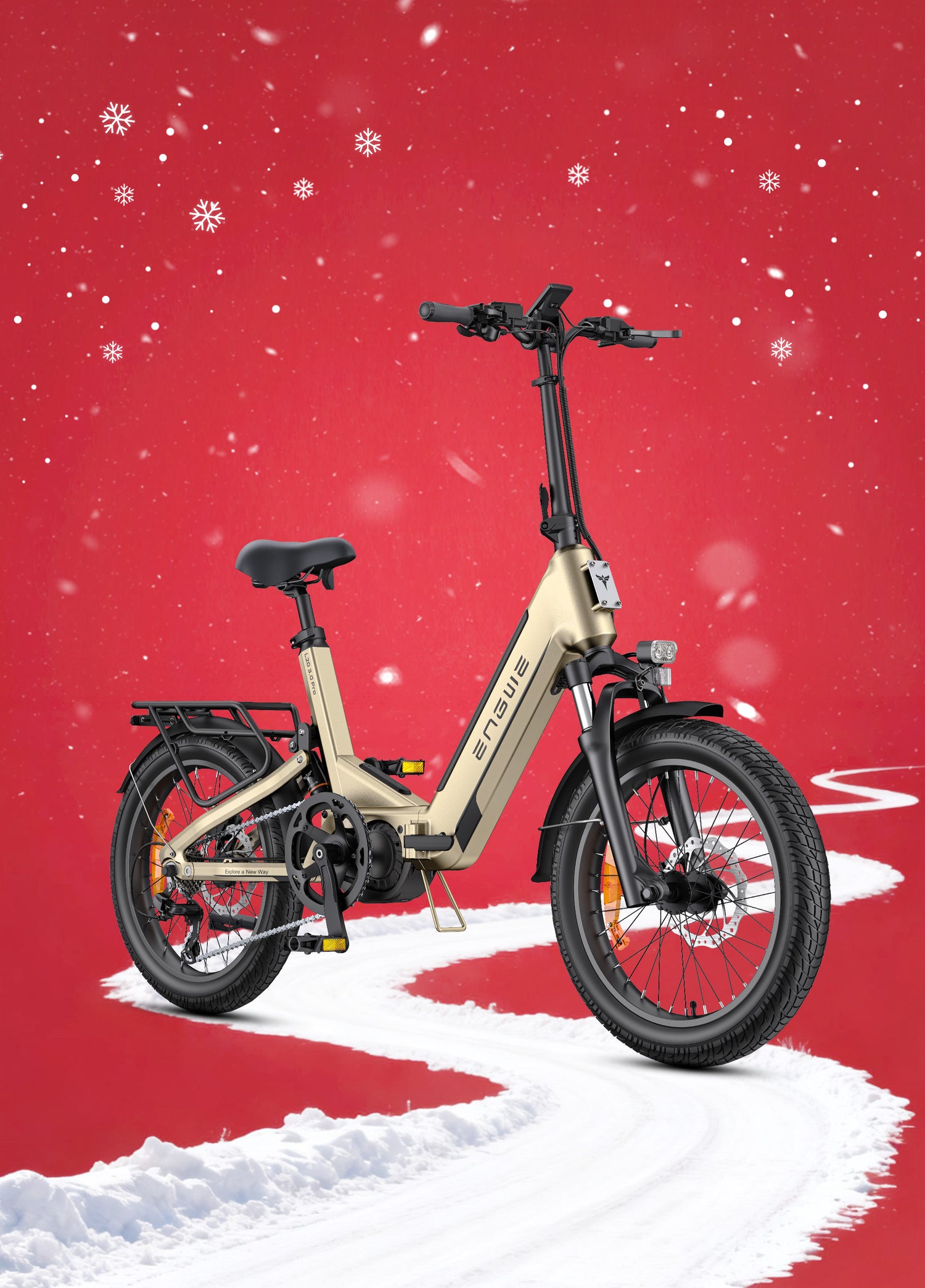

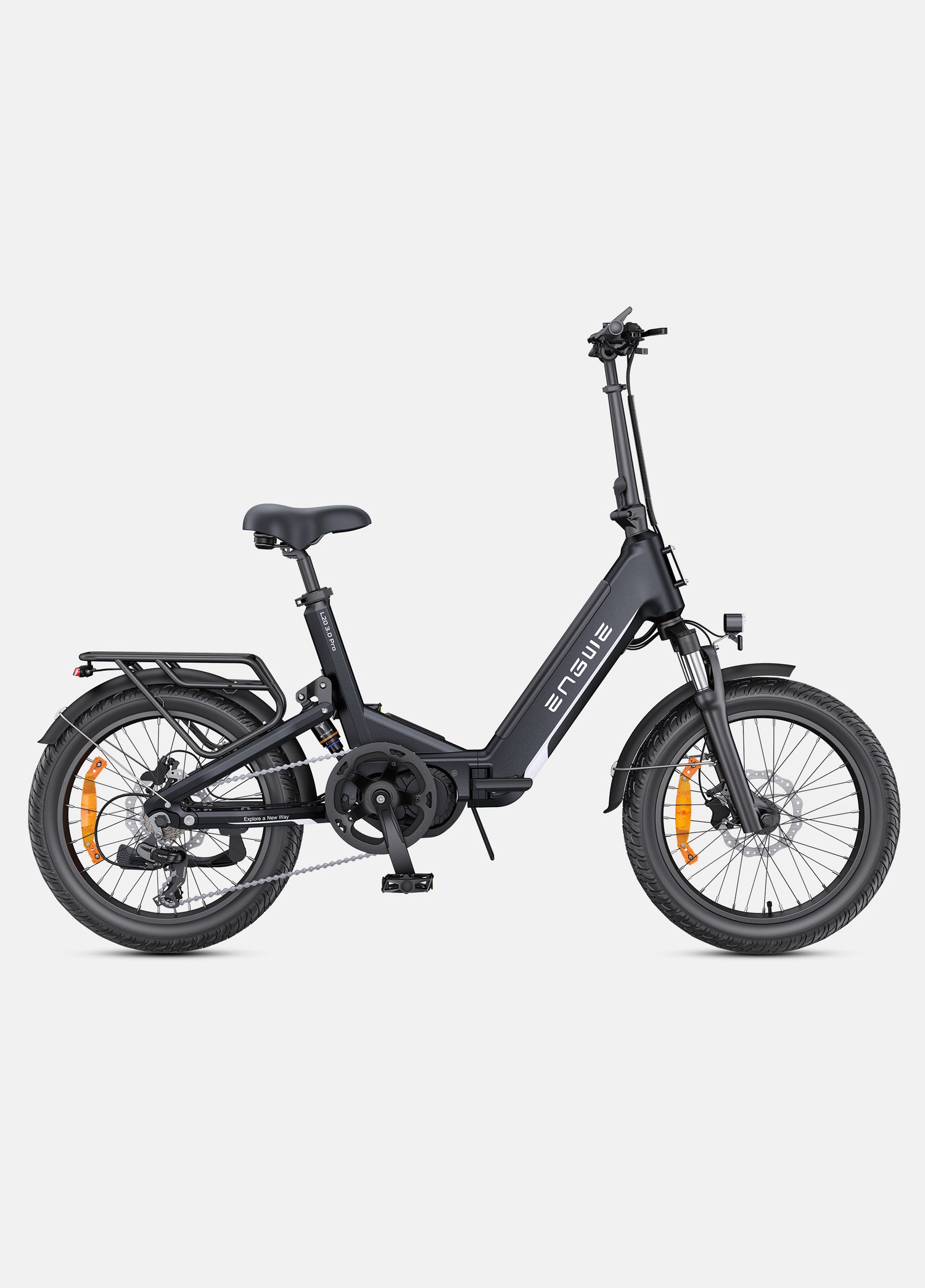

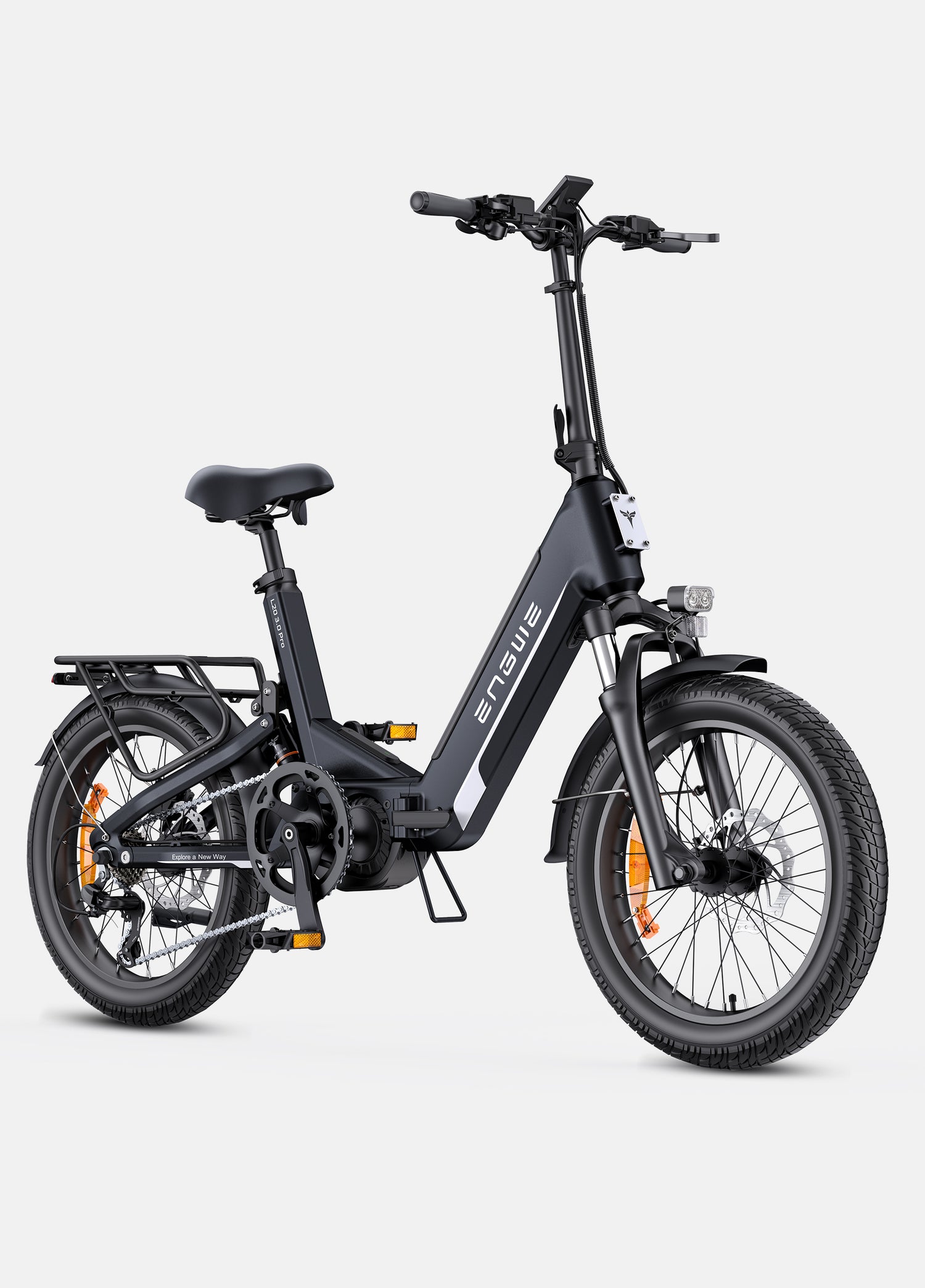

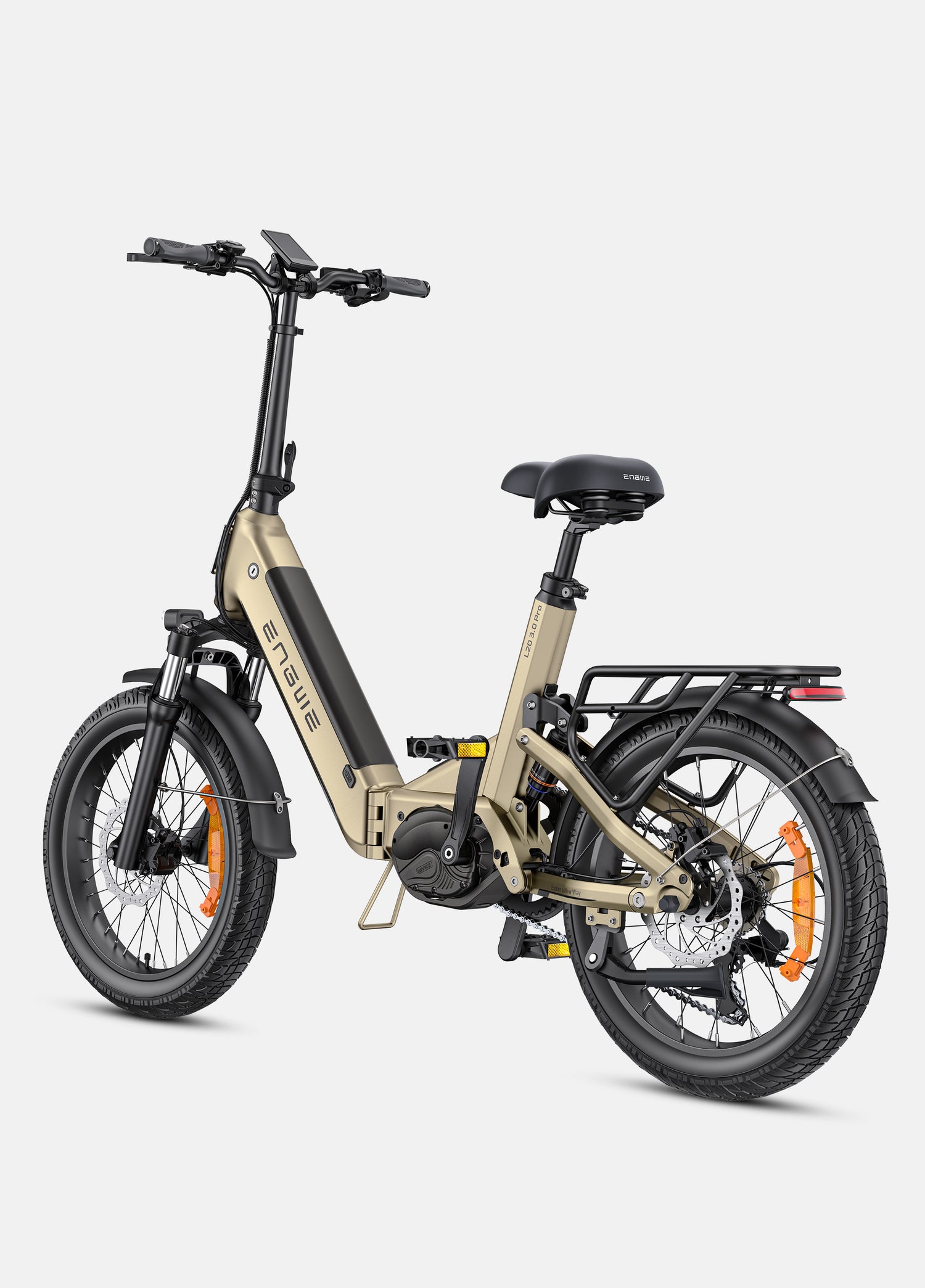

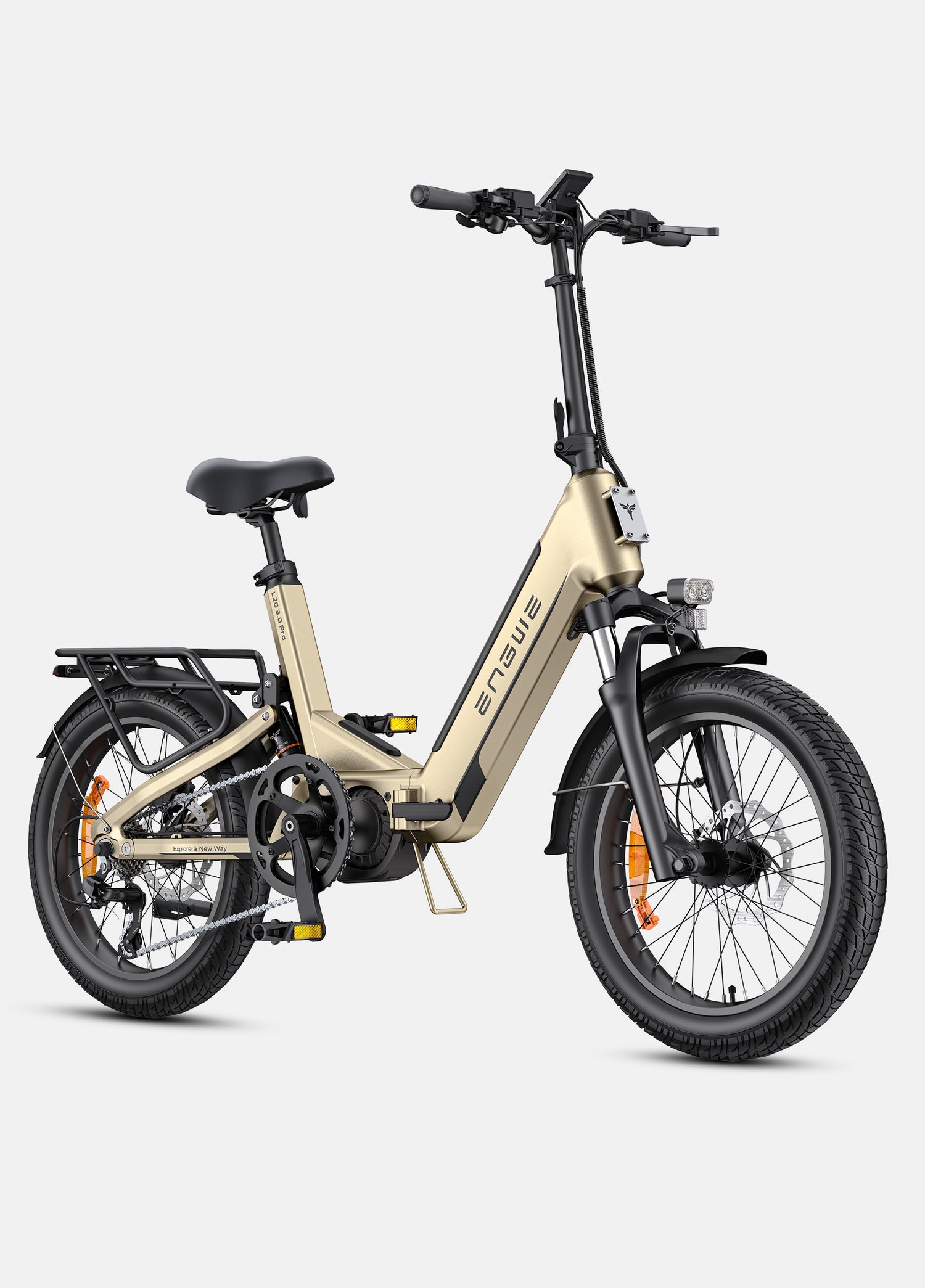

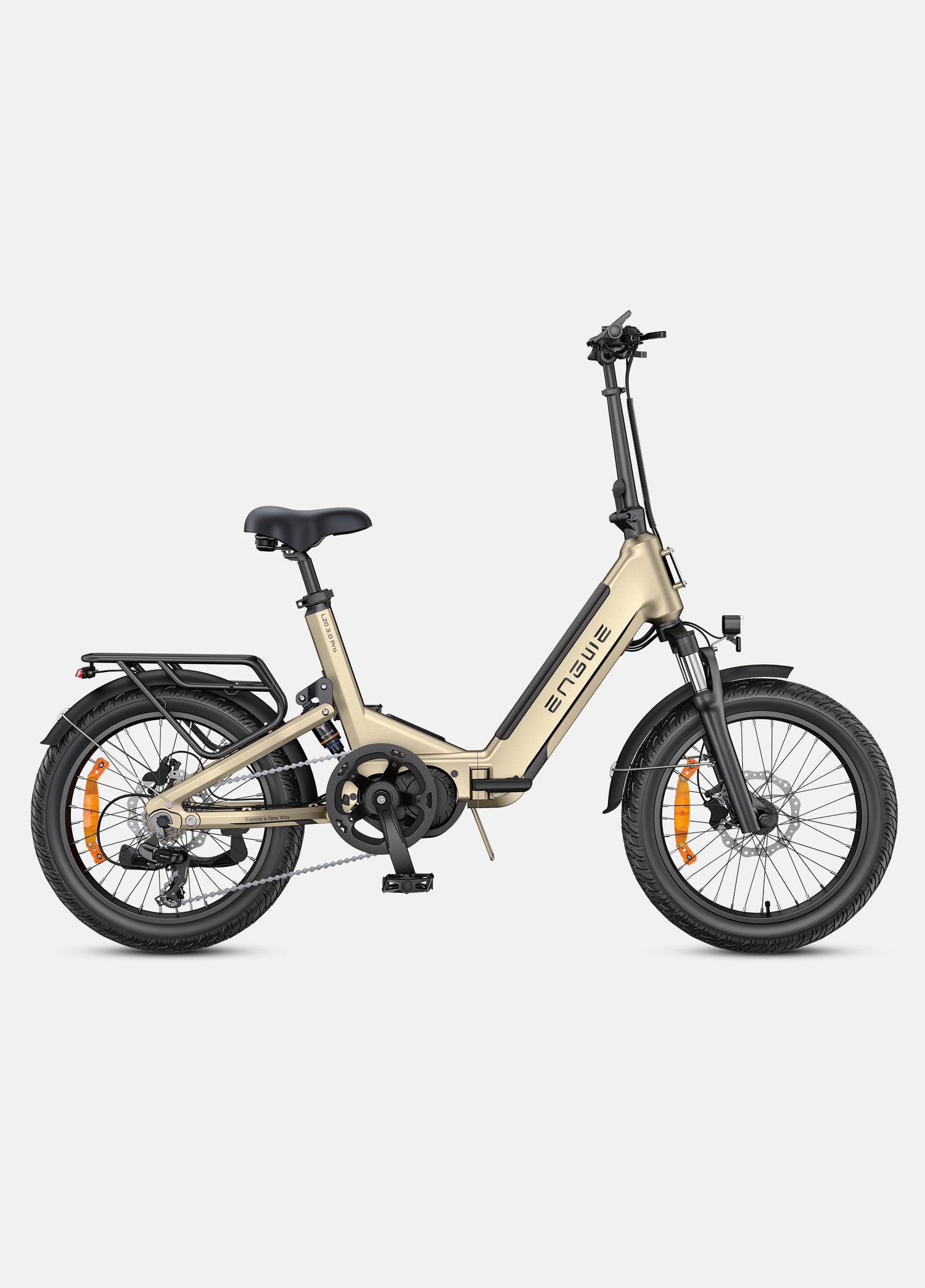

L20 3.0 Pro

250W 100Nm Mid-drive Motor Full Suspension Compact E-bike

£1,699.00 Out of Stock
Pre Sale
Color
Frequently Bought Together
  • +SELECTED
    N1 AIR Rear Rack [Pre-sale]
    £59.00
    £89.00
    Free
    £89.00
  • +SELECTED
    N1 AIR ST Rear Rack [Pre-sale]
    £59.00
    £89.00
    Free
    £89.00
  • +SELECTED
    Anti-Theft Alarm
    £19.00
    £29.00
    Free
    £29.00
  • +SELECTED
    Covers
    £35.00
    £45.00
    Free
    £45.00
  • +SELECTED

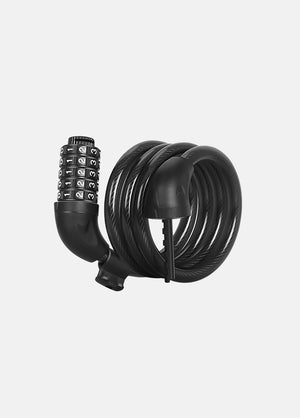

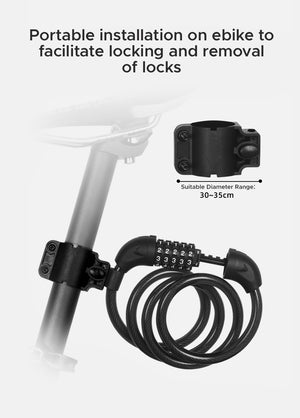

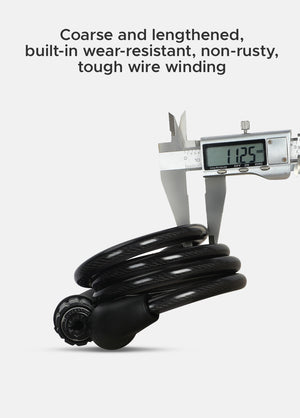

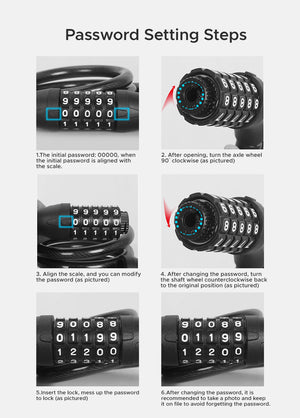

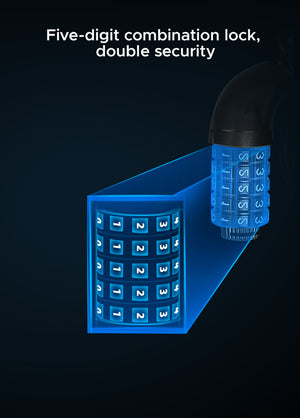

    Bicycle Lock
    £19.00
    £35.00
    Free
    £35.00
  • +SELECTED

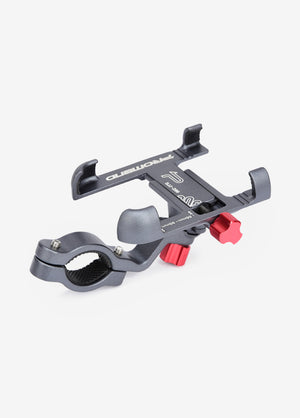

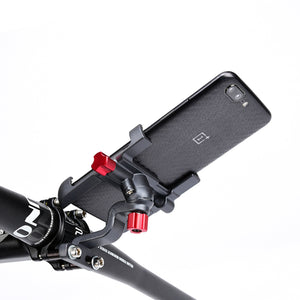

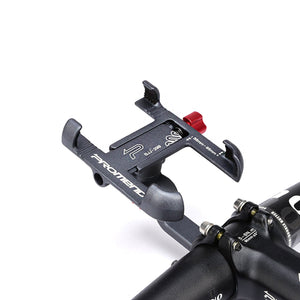

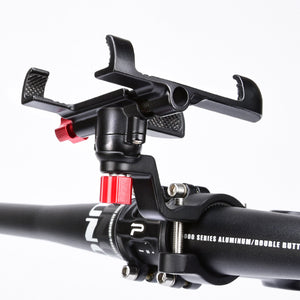

    Phone Mount
    £19.00
    £25.00
    Free
    £25.00
show more Down

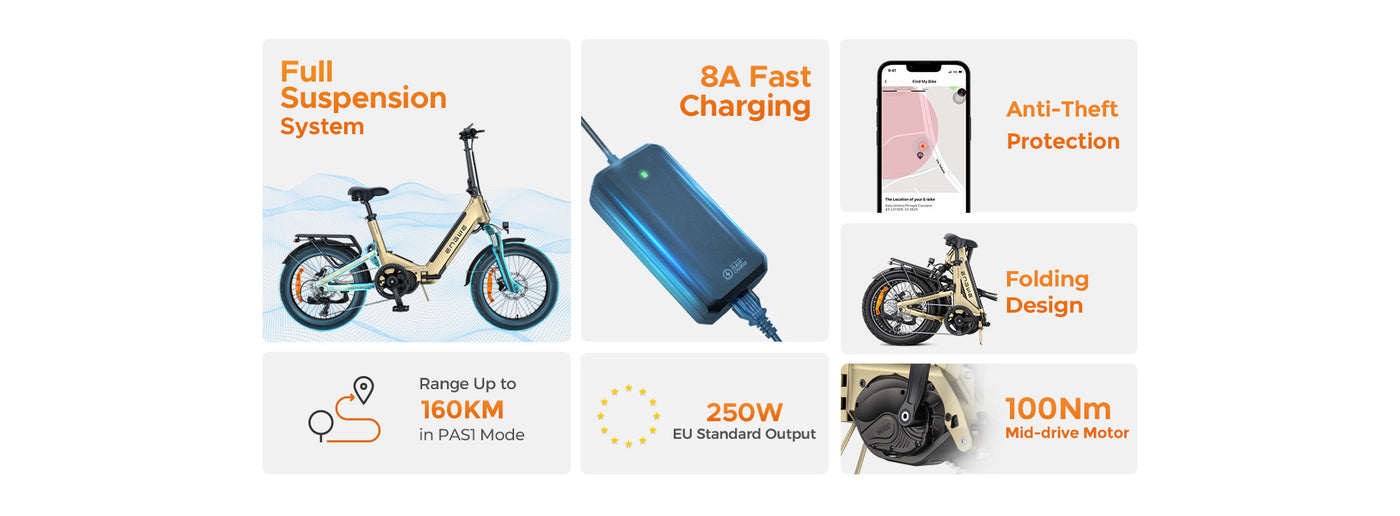

Full Suspension
System

8A
Fast Charging

720Wh
Removable Battery

100Nm
Max torque (Mid-Drive)

160KM
Max Range

TÜV
Certified

Specs
General Info
Model
L20 3.0 Pro
Max Load Capacity
150kg (330 lbs)
Ride Height
5'1" - 6'3" (155cm - 190cm)
Certification
CE (EN15194)
Pedal Assist
5 Levels
Fold
Yes
Lab Tested Range
160 km(Fully Charged)
Real-World Range
140 km(PAS 1)
110 km(PAS 3)
96 km(PAS 5)
Waterproof Ratings
IPX7(Waterproof Wiring)
IPX6(Display & Lights)
IPX5(Motor & Controller)
IPX4(Battery Box)
Terrain
Tarmac Roads & Bicycle Routes
Gravel-Paved Paths
Sandy Beaches & Grass
Country Roads & Paved Trails
Bike Weight
32.8 kg(72.3 lbs)
Gross Weight
Approx. 42kg(92.6 lbs)
Frameset
Frame Material
6061 Aluminum Alloy, Internal Battery, Step-Through Design
Frame Style
Compact, Full Suspension
Fork
Hydraulic, Adjustable Lockout, One-Piece Die-Cast Aluminum
Rear Suspension
30mm Travel
Wheel Set
Tires
20" × 3.0" Urban Hybrid Tires
Puncture Protection
3mm Anti-Puncture Layer
Wheels
20-inch, 12-gauge Spokes, 36-hole, Double-Wall Aluminum, Black
E-Bike System
Motor
Mivice X700 Mid-Drive, 48V
Max Torque
100Nm
IOT
ENGWE IOT Module with GPS, 4G & Bluetooth
Assist System
Torque Sensor
Battery
48V 15Ah (720Wh), Samsung 21700 Cells with BMS
Display
3.5" LCD Color Display, ENGWE-Designed, Mid-Position
ENGWE App
App Control Available
Charger
54.6V 8A Output
Front Light
30 Lux with Integrated E-Horn
Rear Light
Automatically brightens When Braking or Shaking
Brakes
Brake Type
Hydraulic, Dual-Piston
Disc Rotor
180mm Front & Rear
Drivetrain
Chain
KMC E8S Anti-Rust, 112 Links
Chainring
48T
Crank
170mm
Rear Derailleur
Shimano Tourney RD-TY300, 7-Speed
Shifter
Shimano SL-M315-7R
Cassette
7-Speed, 14T-28T
Pedals
Boron Steel, Non-Foldable
Cockpit
Saddle
ENGWE Soft Saddle
Seat Post
10-Level Adjustable
Handlebars
680mm Width
Stem
Foldable
Seat Clamp
Quick-Release
Size

Unfolded

Ride Height: 5'1" - 6'3" (155cm - 190cm)
Max Load Capacity: 150kg (330 lbs)
Package Dimensions: 144*27*64 cm

A-Handlebar Height
110.2cm
B-Total Length
172.0cm
C-Reach
51.2cm
D-Standover Height
38.0cm
E-WheelBase
116.5cm
F-Minum saddle Height
82.0cm
G-Maximum saddle Height
-102.0cm
Please note: There may be a difference of 0~5 cm between measured and actual data.

Folded Size: 102*53*78 cm

A-Height
78 cm
B-Length
102 cm
C-Width
53 cm
Please note: There may be a difference of 0~5 cm between measured and actual data.
What's in the box?
L20 3.0 Pro E-Bike
*1
Battery
48V 15Ah Samsung Lithium-Ion*1
Charger
54.6V 8A *1
Pedals
*2

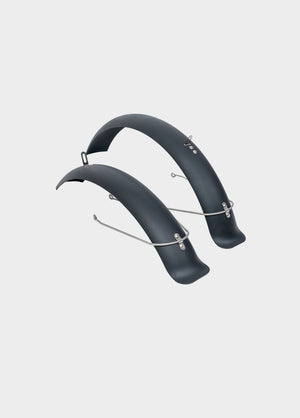

Front & Rear Fenders
*1
Rear Rack
*1
Bike Kickstand
*1
Assembly Tools
*1
User Manual
*1
Please note: The product you receive is based on the option you selected to order.
FAQ

Q1: About shipping
*In Stock: Once your order confirmation is complete, we will begin shipping within the next 2 business days. This means that your item will start shipping on the 3rd business day after your order is confirmed.
*Pre Sale: Please refer to the product page for detailed pre-order shipping times.
*Out Of Stock: This means there is no stock in recently half a month.

*Shipped from UK warehouse, it takes approximately 5-7 working days to receive your e-bike. (Remote areas and islands are excluded from delivery.)
*If you have other special requirements or urgent delivery date, please communicate with our customer service team when placing your order, we will try our best to meet your needs.

  • Important:
    Please make sure your delivery address and phone number are accurate and available when placing an order.

    If your order is shipped by BJS carrier, the delivery person will contact the recipient twice by phone to reserve a delivery time.

    Change the delivery time for free(Please call the BJS carrier at 01922 645 650):
    You must change the new delivery time 1 day before the reserved delivery time. (For example, if you reserved a delivery at 1 pm today, you must reserve a new delivery time before 1 pm yesterday).

    You have to bear the re-delivery cost:
    Under the premise that the delivery time has been agreed upon with you if the delivery person arrives at the delivery address and no one receives the goods, the goods will be returned to the warehouse. You need to pay the re-delivery cost. To avoid the cost of re-delivery, you can call the delivery person and ask your family or neighbors to sign for the package if you are inconvenient to sign the package at that time.
    If you change the delivery time between 24 hours from the agreed delivery time, the re-delivery cost will be incurred. (For example, if you reserved a delivery at 1 pm today, your reserve request was made after 1 pm yesterday).

    Please note: The express delivery company cannot be specified. We will arrange the most suitable express delivery for your delivery address.

Please Note: Remote areas will incur additional shipping charges, our free shipping policy does not cover this additional freight. You need to pay for the additional freight.
Please click here to learn if your location is the remote areas.
We will contact you after you place the order regarding to the details of the freight through email. Please pay close attention to your email after you place the order.

Q2: Compliance with EU regulations
Please click here to view the CE certificate for the L20 3.0 Pro.

Q3: ENGWE L20 3.0 Pro User Manual
Please click here to view Mapfour L20 3.0 Pro User Manual.

engwe uk

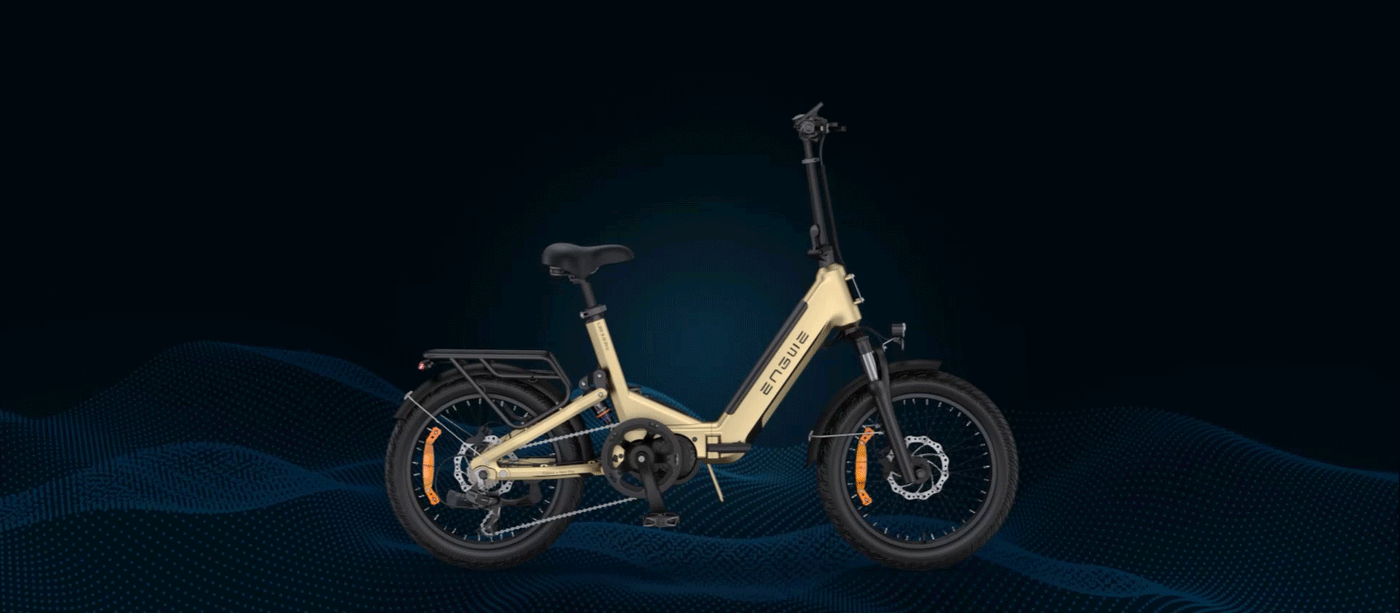

L20 3.0 Pro

The First Compact E-bike With Full Suspension

engwe uk
engwe uk

Compact with Full Suspension

Experience the first compact e-bike with a full-suspension design, perfect for city streets and beyond.

engwe uk

A Smoother Urban Ride

Engineered to absorb up to 90% of vibrations. Enjoy mountain bike-grade shock absorption on city streets

engwe uk

Ultra-Fast 8A Charging

Fully charged in 2 hours with high-quality Samsung cells, retaining 80% capacity after 800 cycles—enough for 80,000 km! The advanced BMS optimizes charging and monitors in real-time for safety and longevity.

Times Faster Charging

Others

engwe uk

Smart Anti-Theft

Integrated with Engwe’s advanced IoT module, providing real-time alerts and GPS tracking to safeguard your ride.

engwe uk

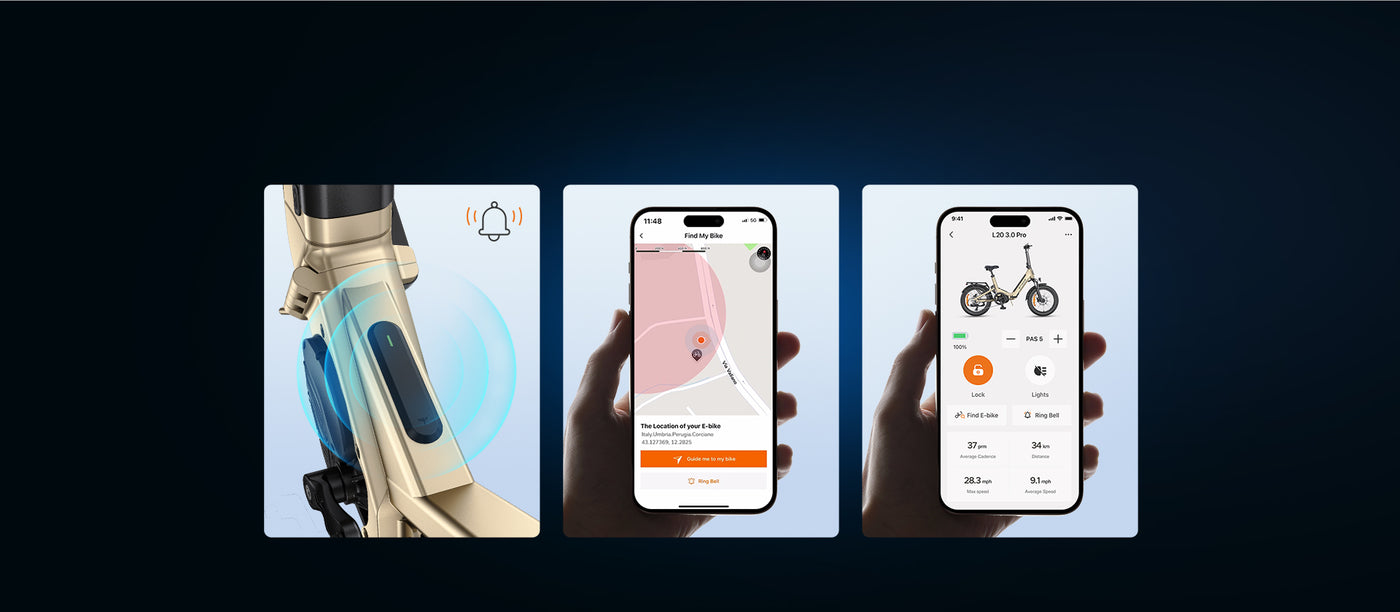

Stay Secure Anytime, Anywhere

Stay in control with motion alerts, GPS positioning, and app-based monitoring, ensuring your e-bike is always within reach.

Motion Detective

GPS Tracking

APP Monitoring

engwe uk

100Nm Mid-Drive Motor

A high-performance 250W mid-drive motor delivers 100Nm of torque for powerful acceleration and effortless hill climbing.

engwe uk

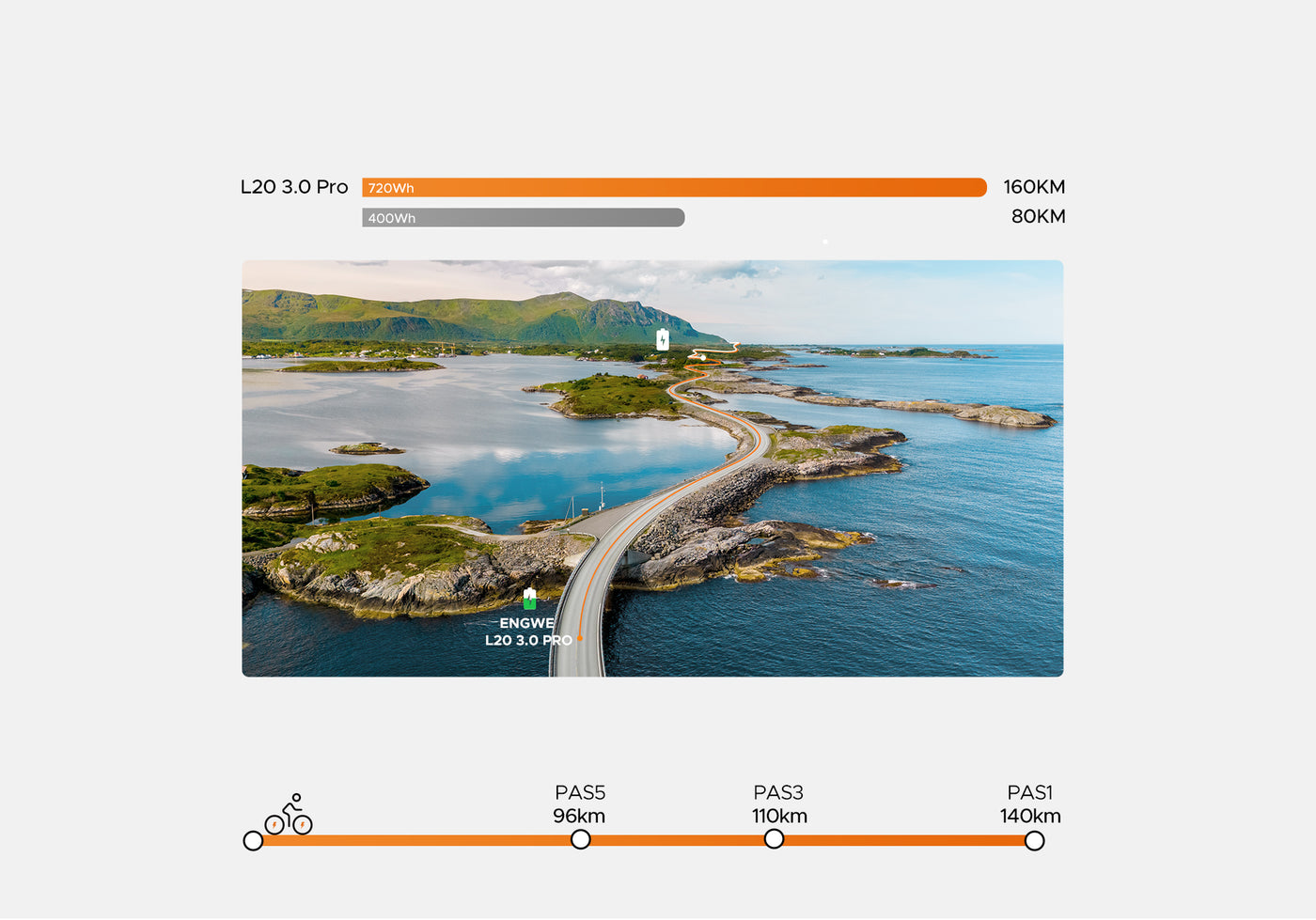

160km Longer Range

A massive 720Wh Samsung battery provides up to 160km on a single charge, eliminating range anxiety for extended adventures.

PAS Mode

Others

Lab test data: The range was tested in the PAS mode 1 by the weight of 75kg with the temperature of 25°.

Real-World Range

Test data: The range was tested in PAS mode by the weight of 75kg with the temperature of 25° on flat road.

engwe uk

Side-By-Side Comparison

Engineered for Performance and Comfort

engwe uk

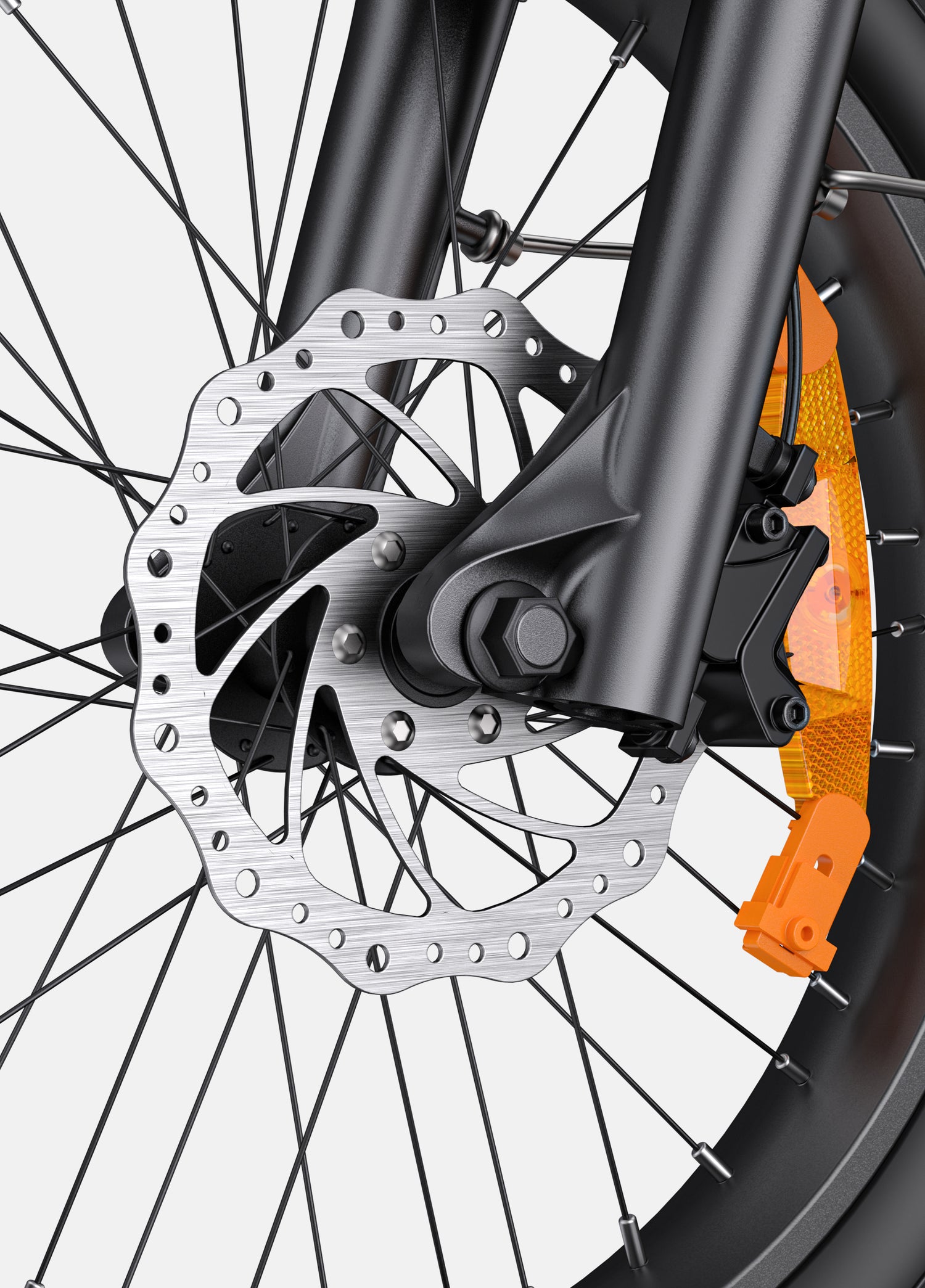

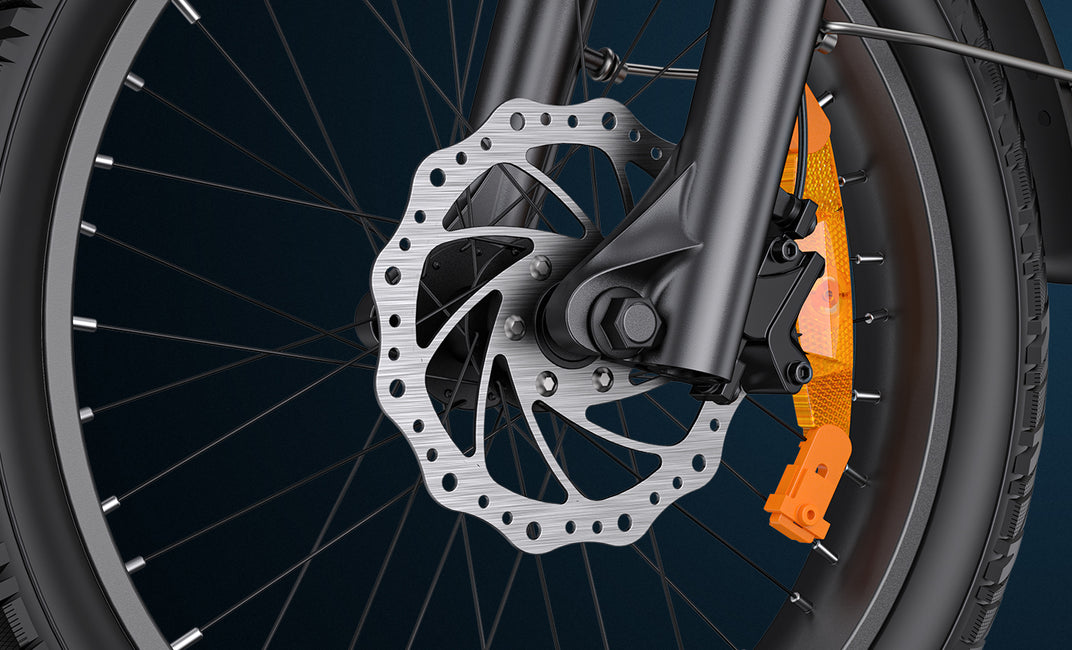

Hydraulic Brakes

Powerful and responsive stopping power for a safer, smoother ride in any weather or terrain.

engwe uk

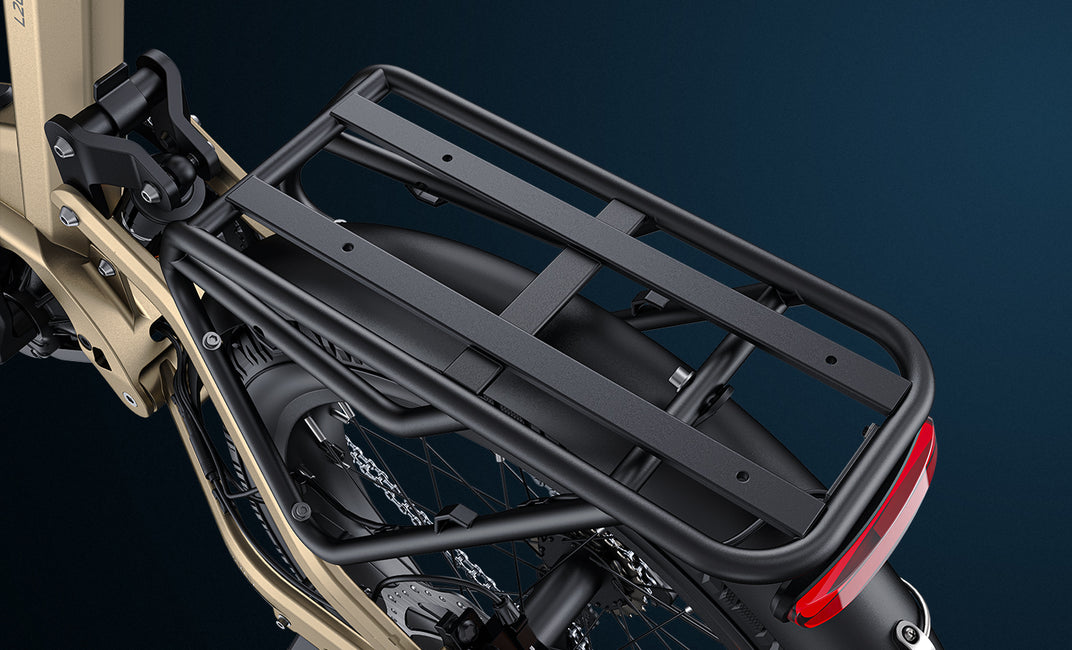

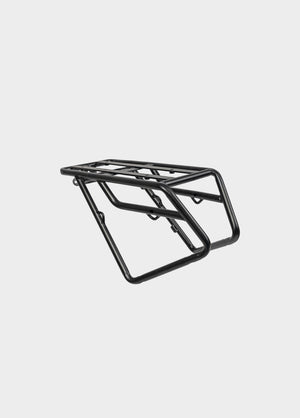

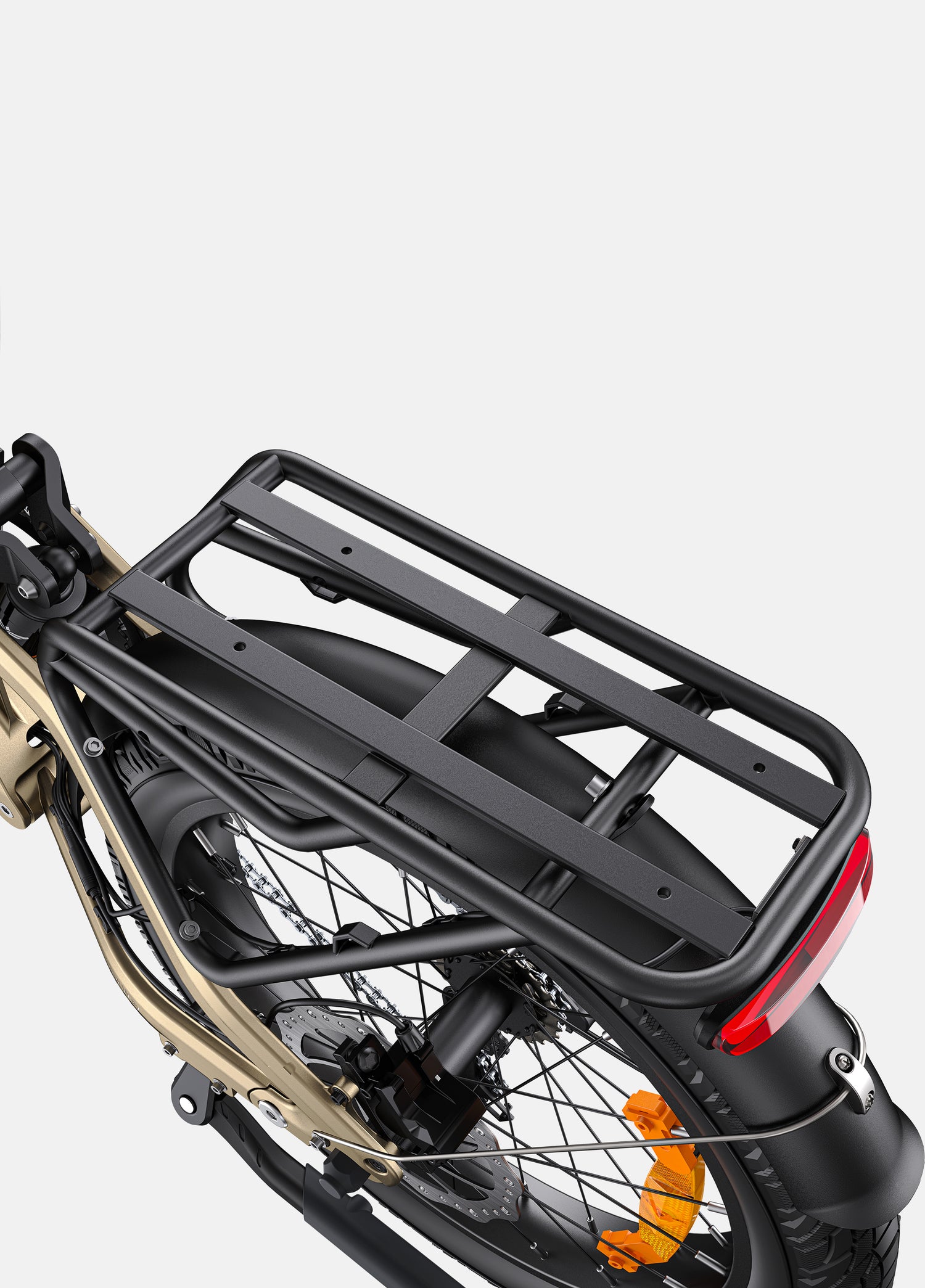

Rear rack

Sturdy, spacious rear rack let you carry groceries, gear, or essentials with ease, making daily errands effortless.

engwe uk

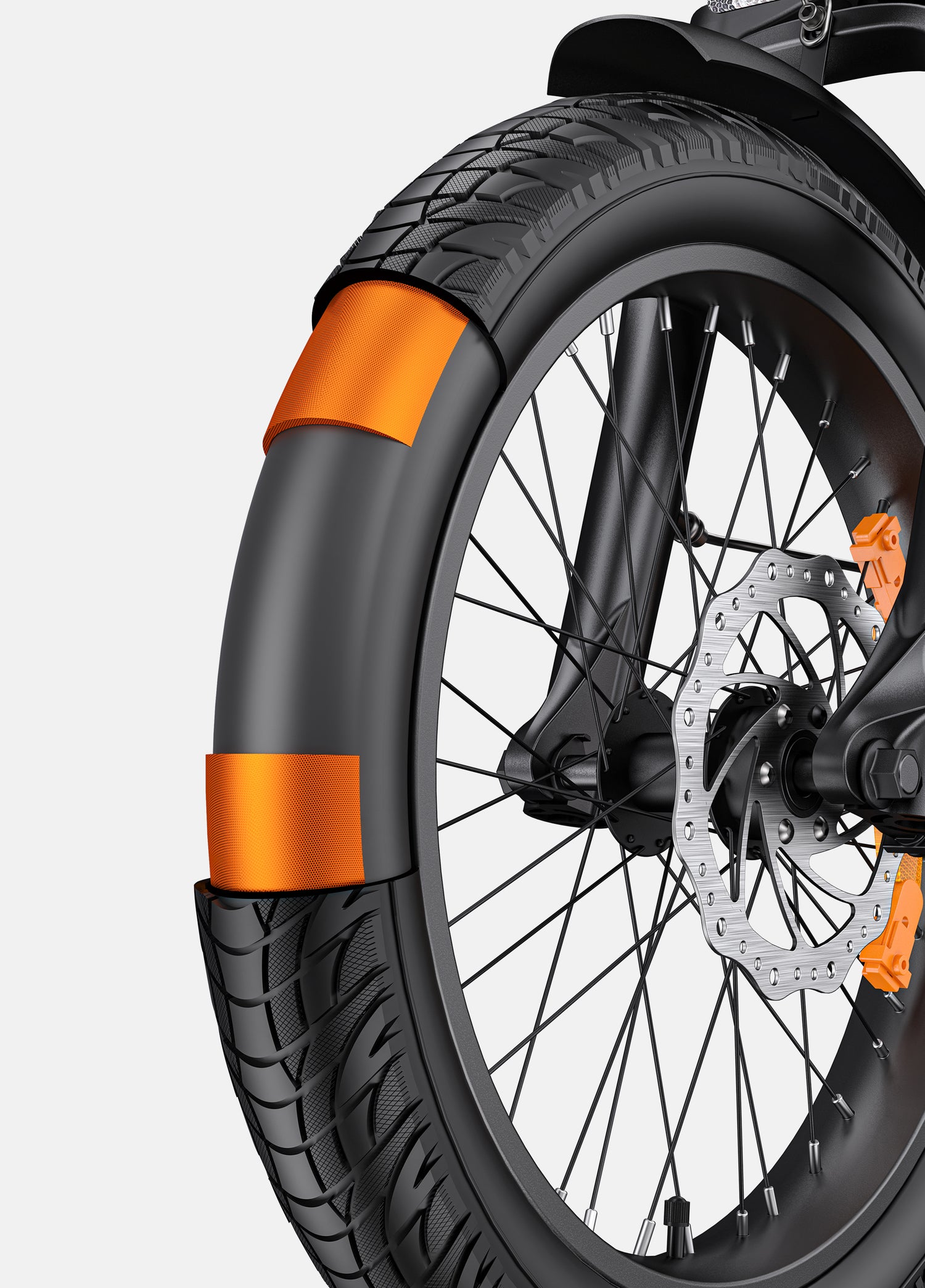

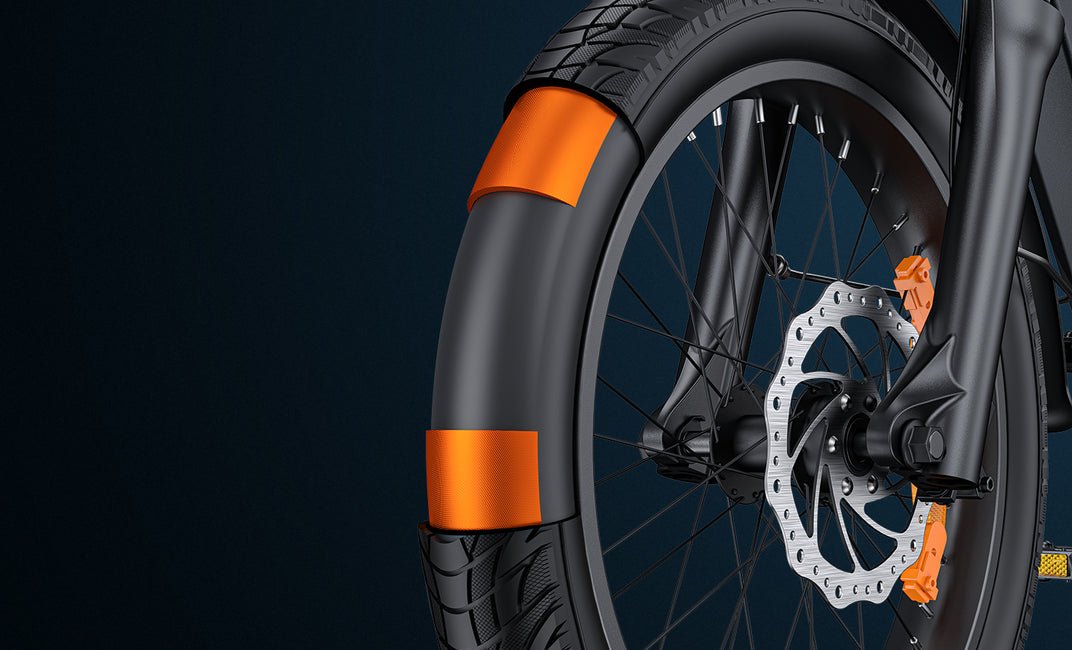

20"×3.0" Puncture Proof Tyre

Enhanced grip, shock absorption, and stability for city streets and trails—plus puncture-resistant tires for a worry-free ride.

engwe uk

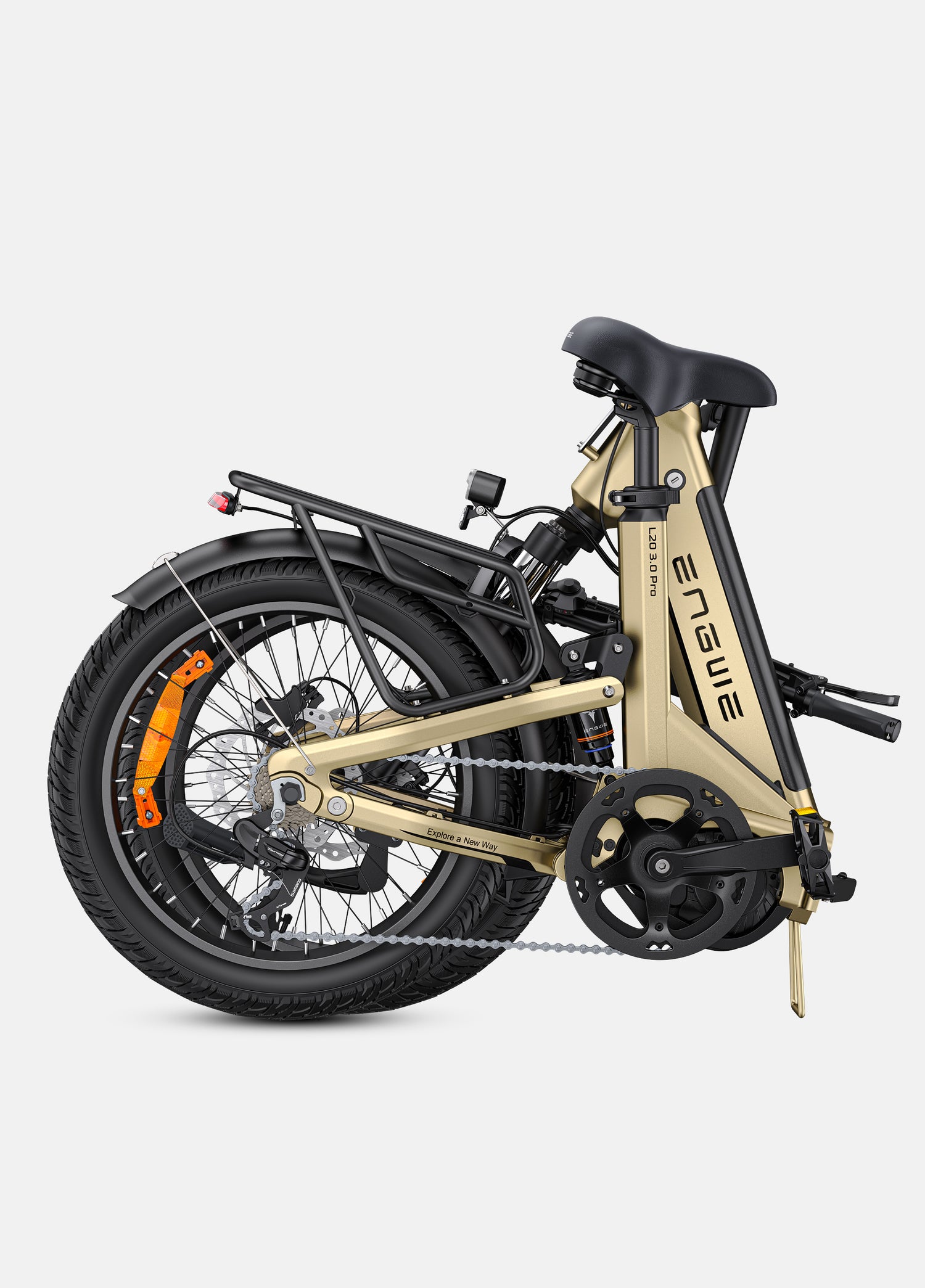

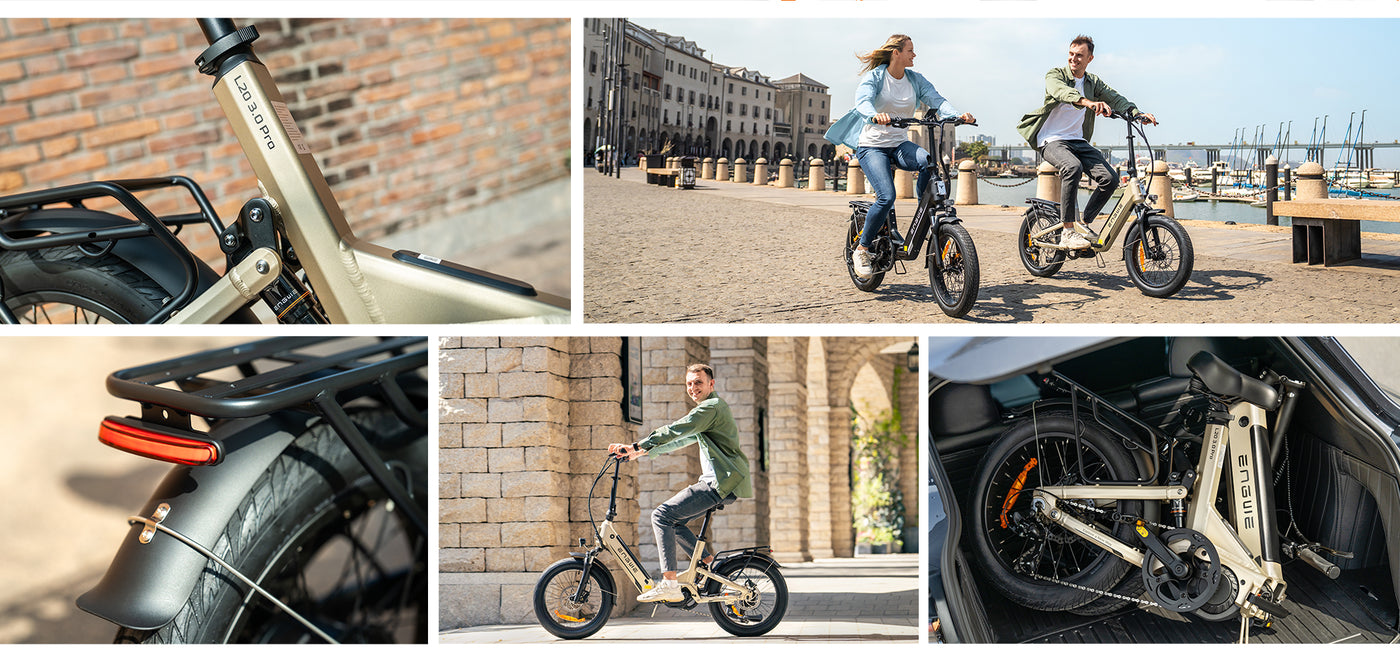

Foldable Frame

Compact, portable, and travel-friendly—store it anywhere and take it everywhere with ease.

engwe uk

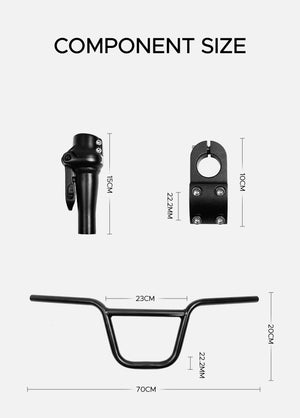

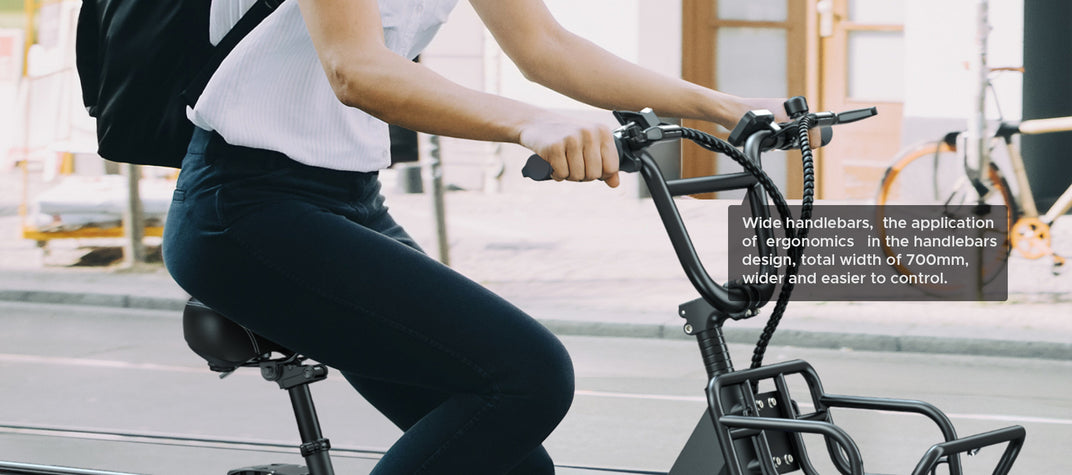

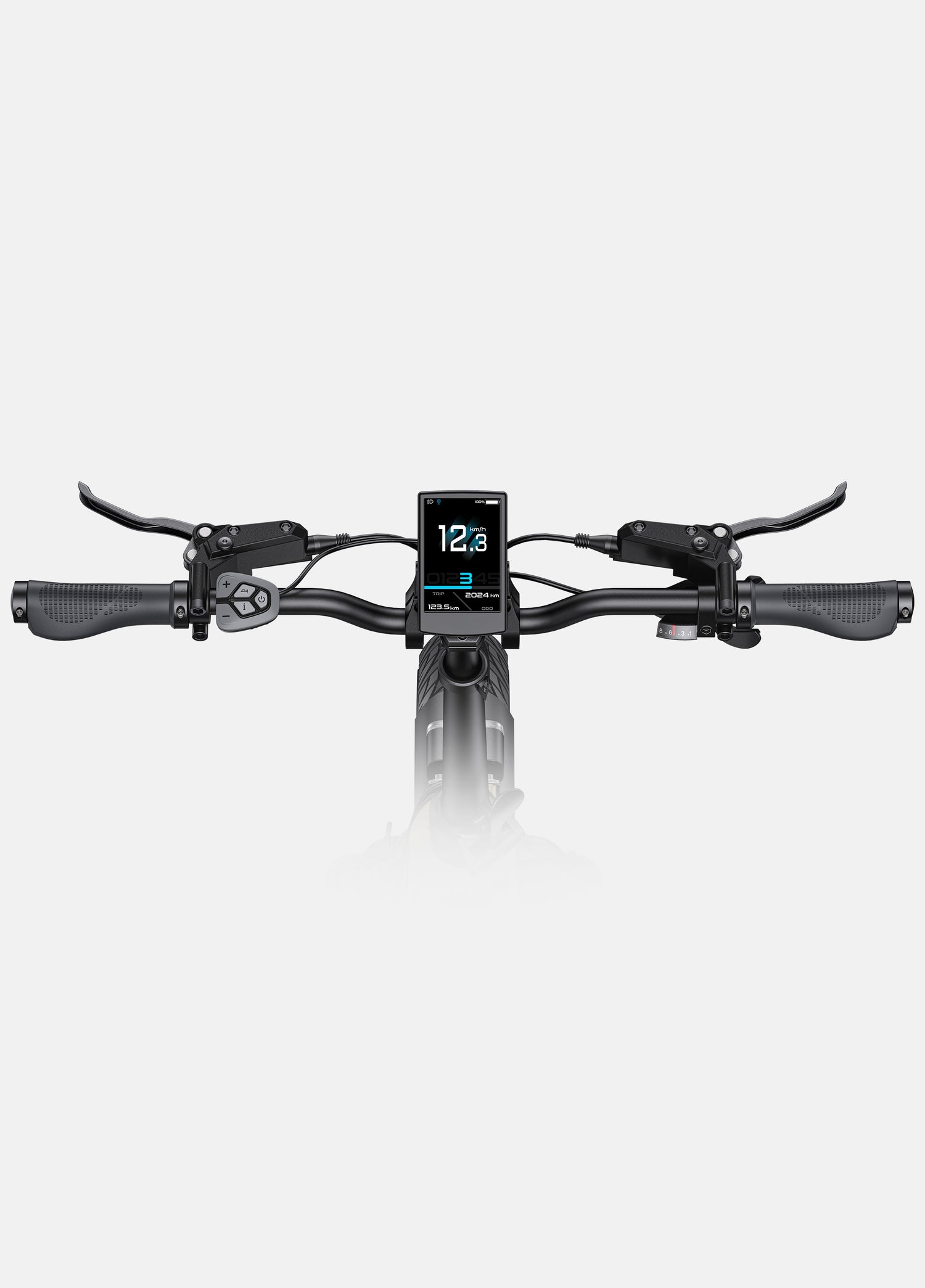

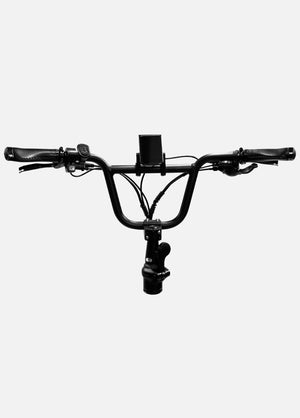

680mm Swallow Handlebar

Designed for agile handling and a relaxed grip, ensuring better control on every journey.

engwe uk

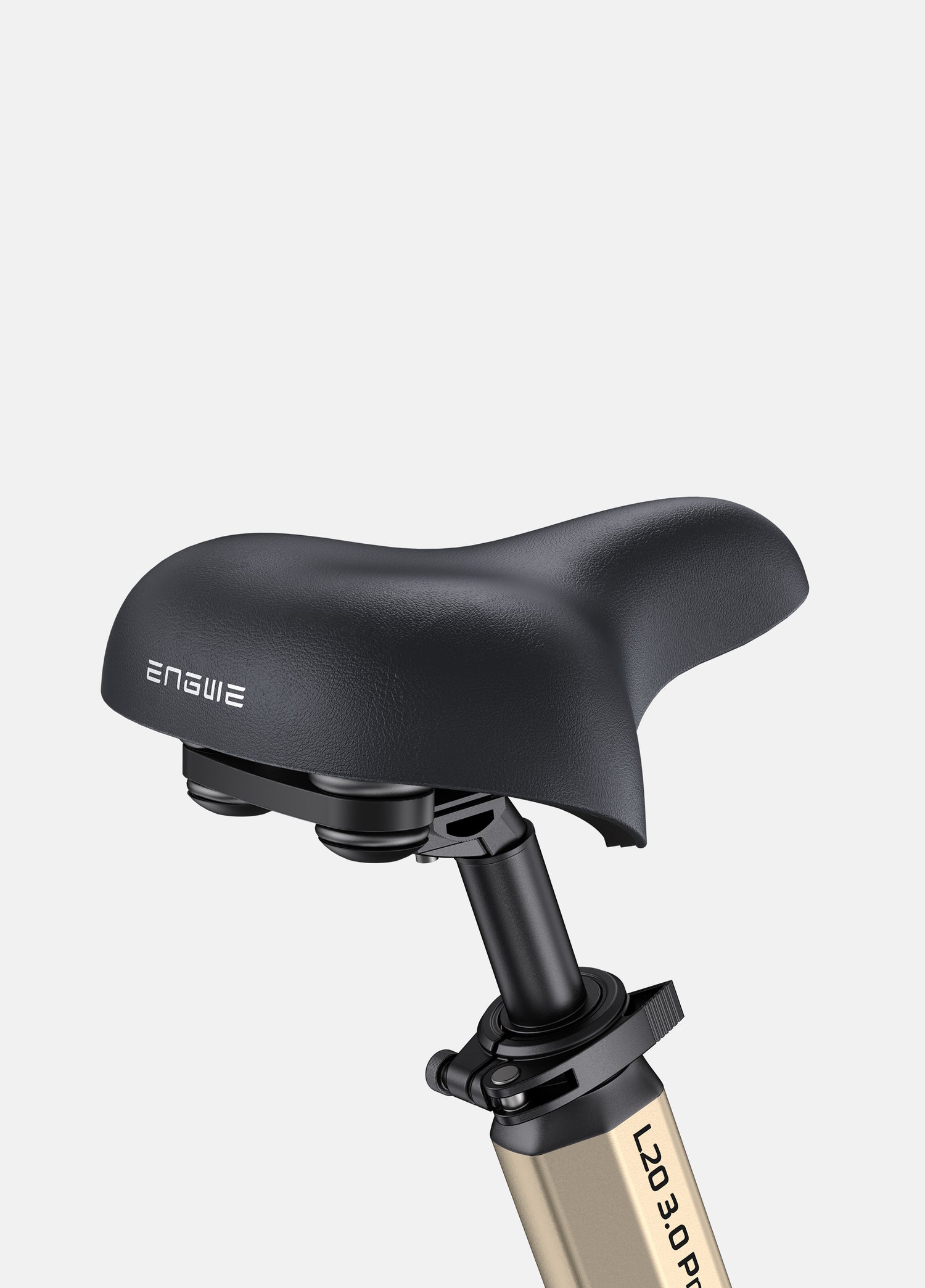

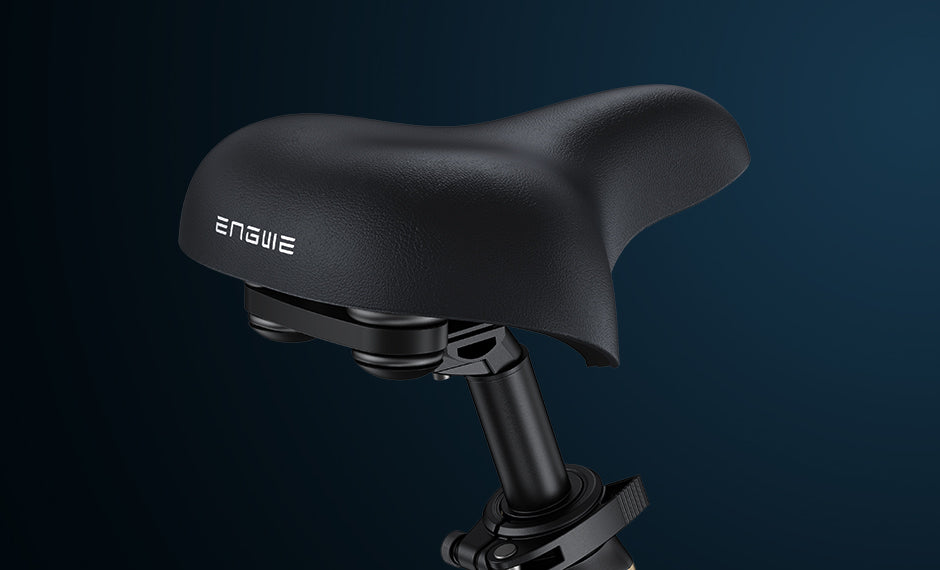

Ergonomic Saddle

Ride longer in comfort with a saddle designed to reduce pressure and enhance support.

engwe uk

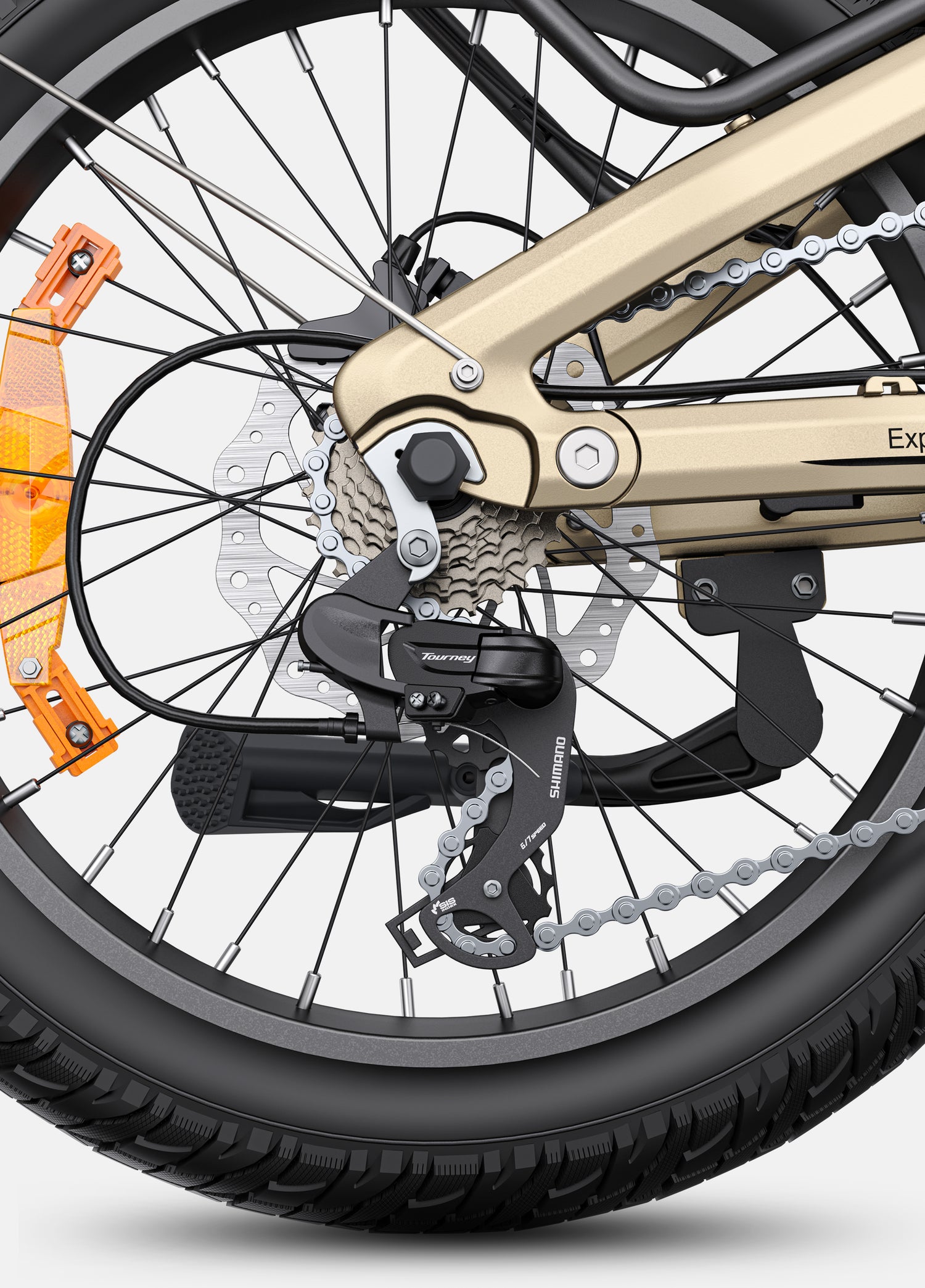

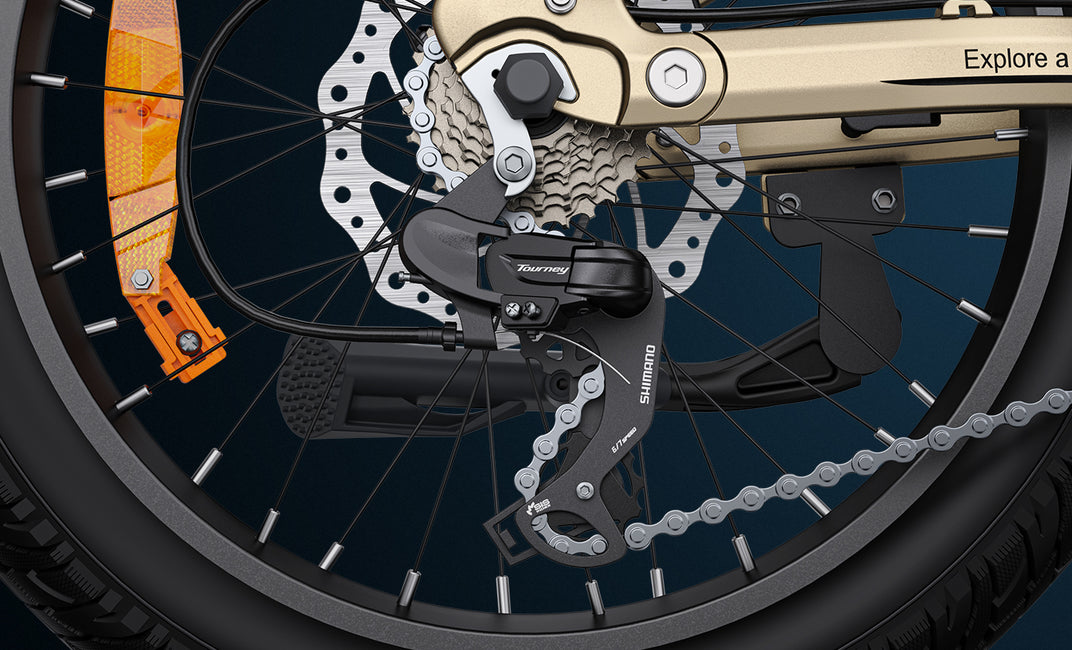

Shimano 7-Speed

Seamless shifting for effortless acceleration, uphill climbs, and smooth cruising on any road.

engwe uk

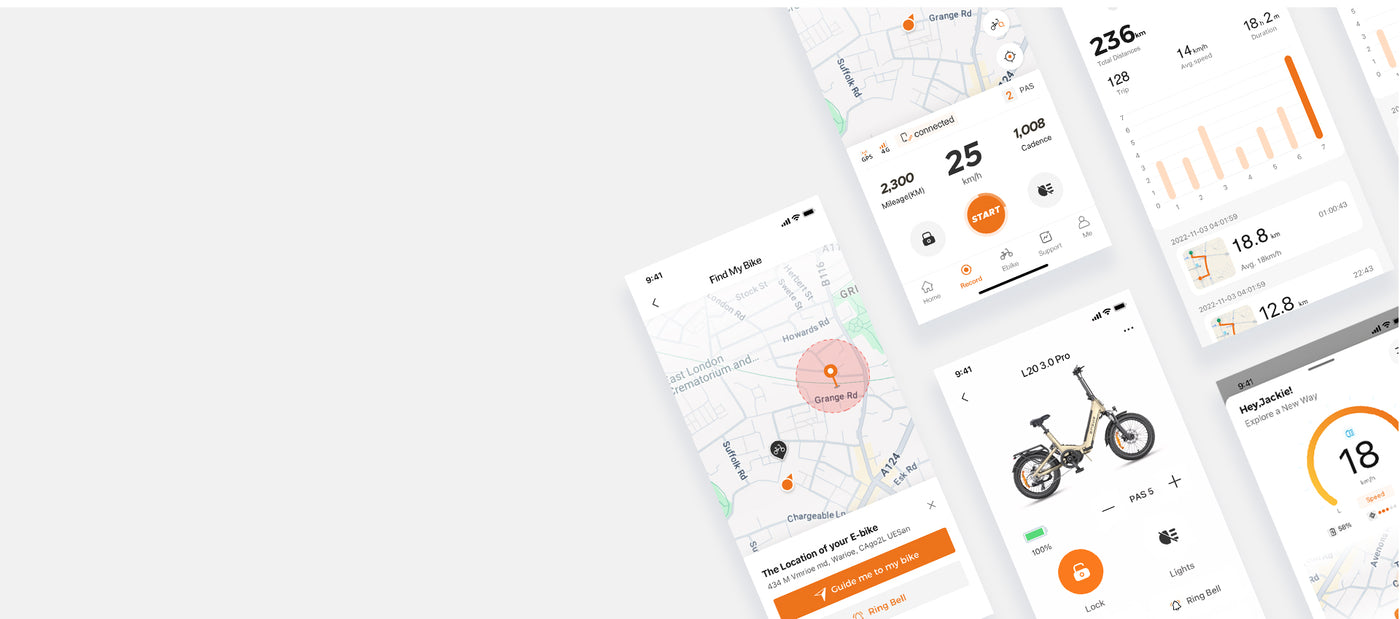

Stay on Track

Record every ride, track your stats, and stay connected. Use the ENGWE App to capture your journeys and ride smarter!

engwe uk
