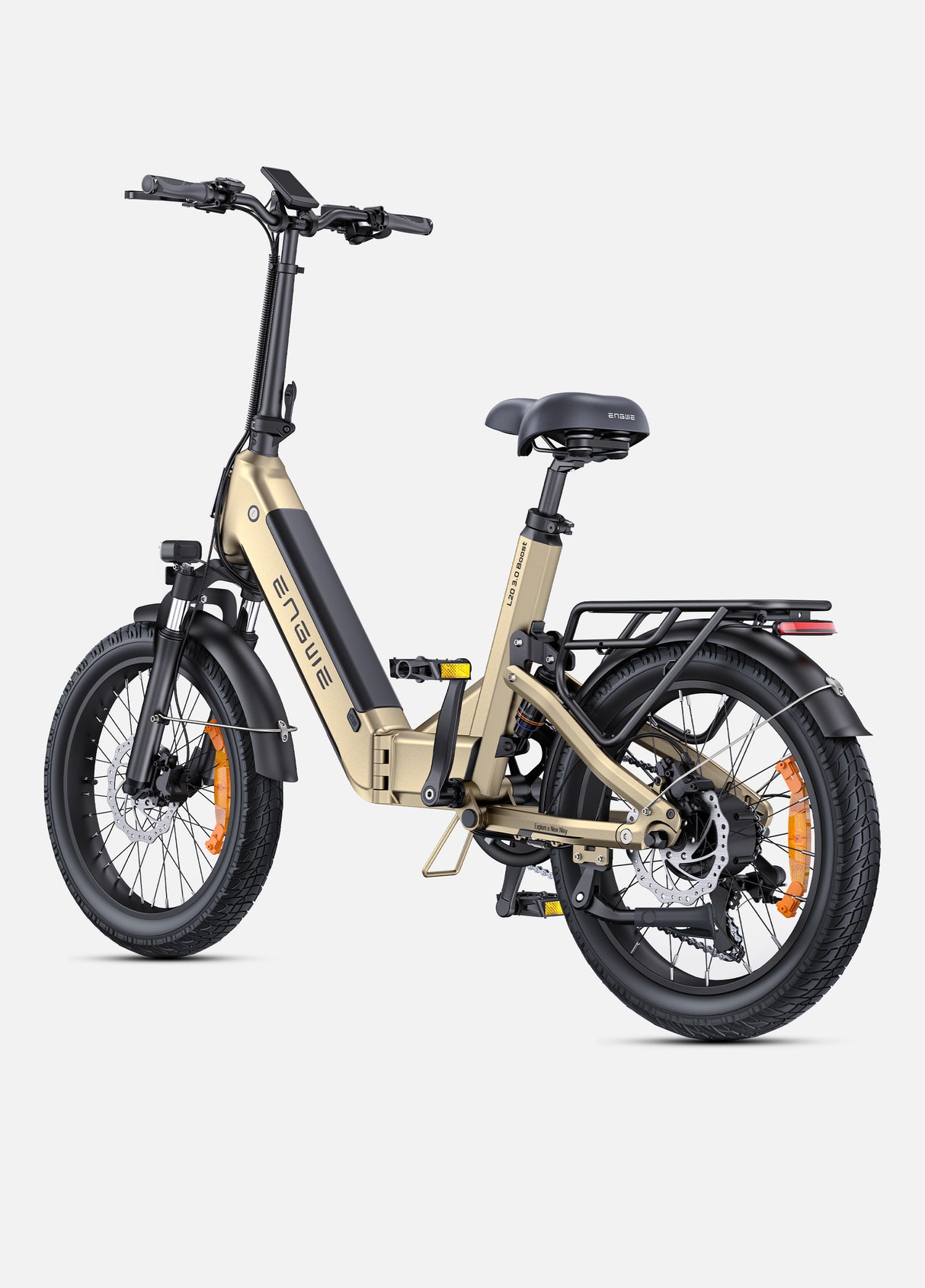

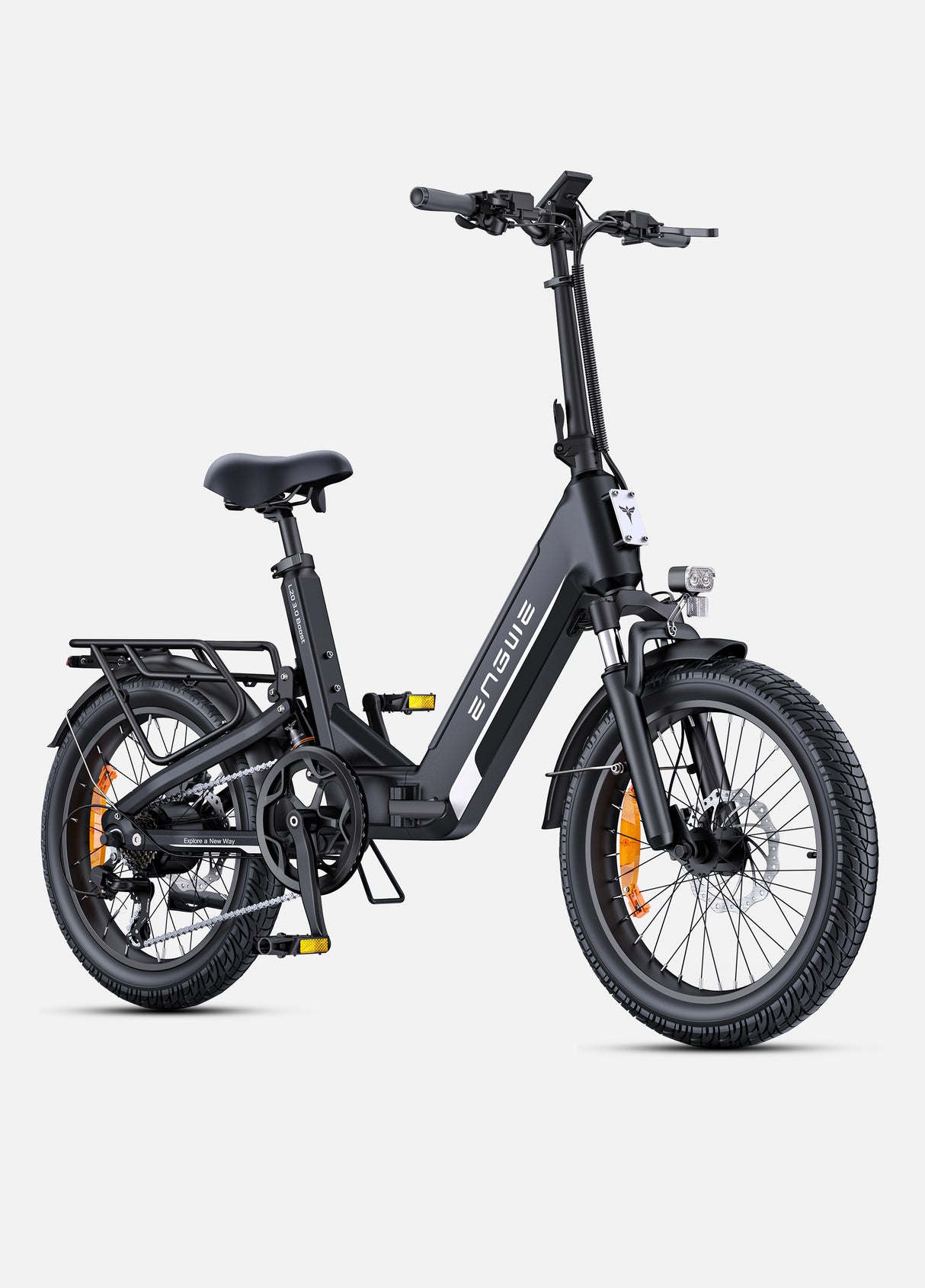

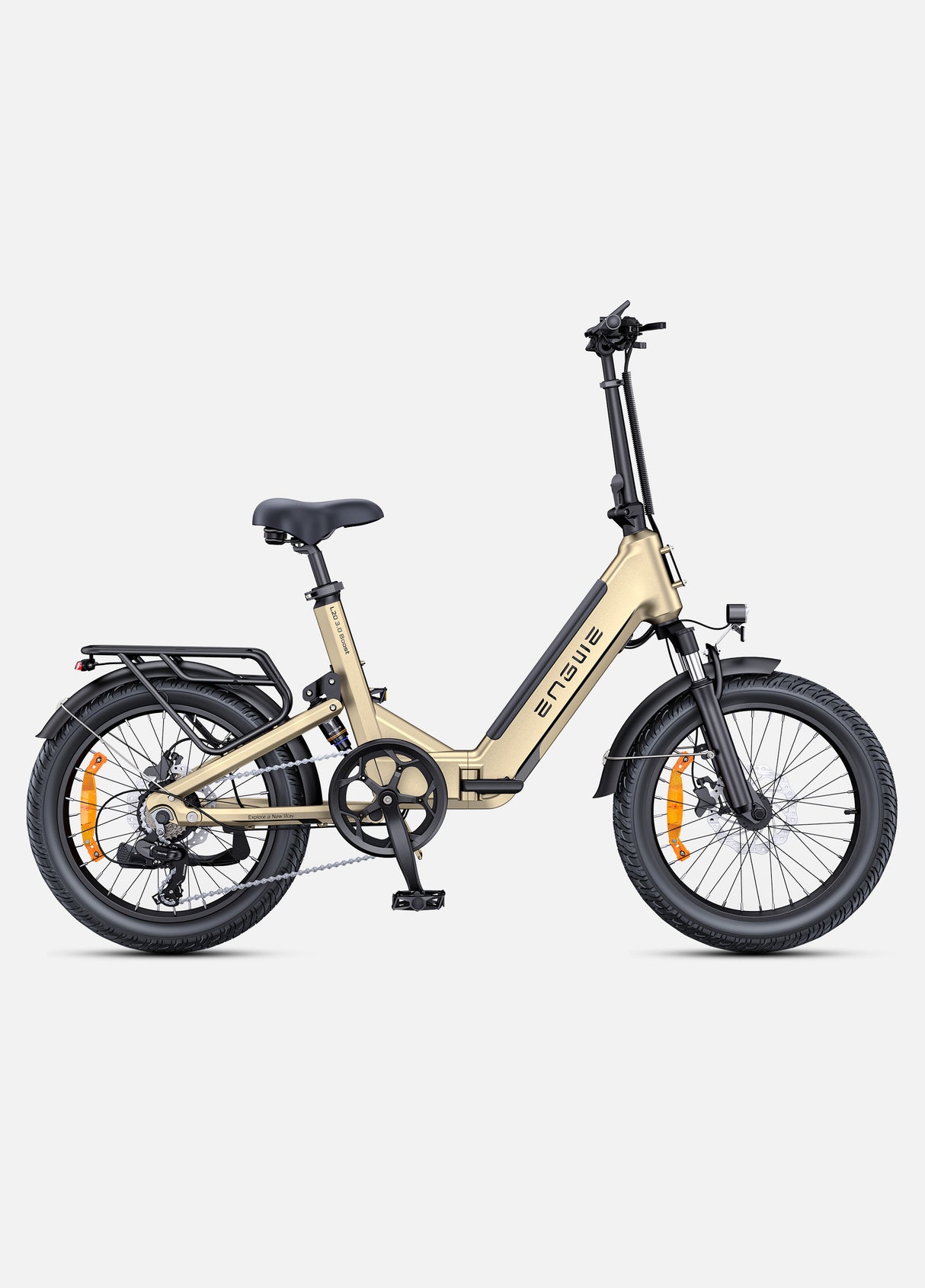

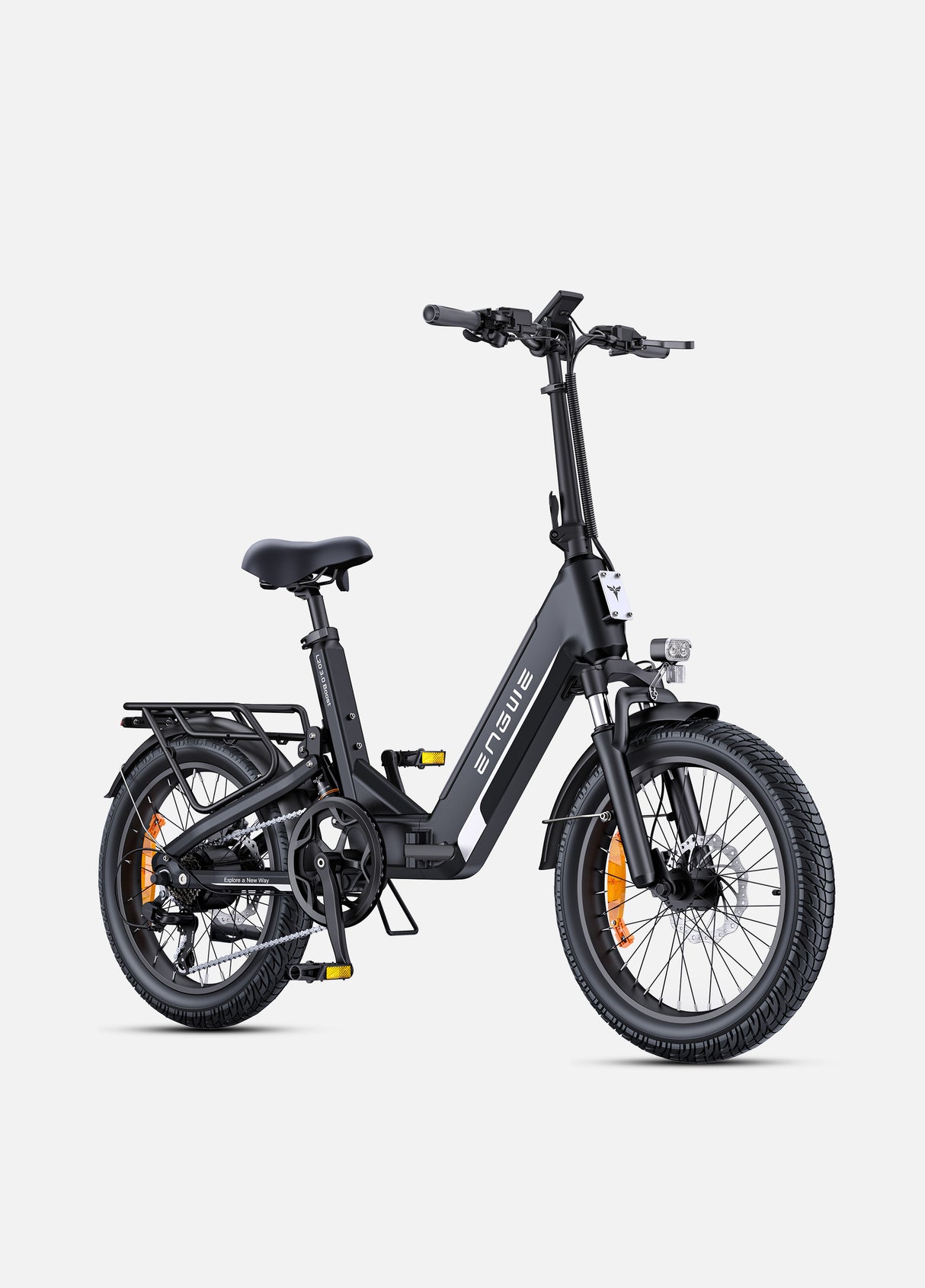

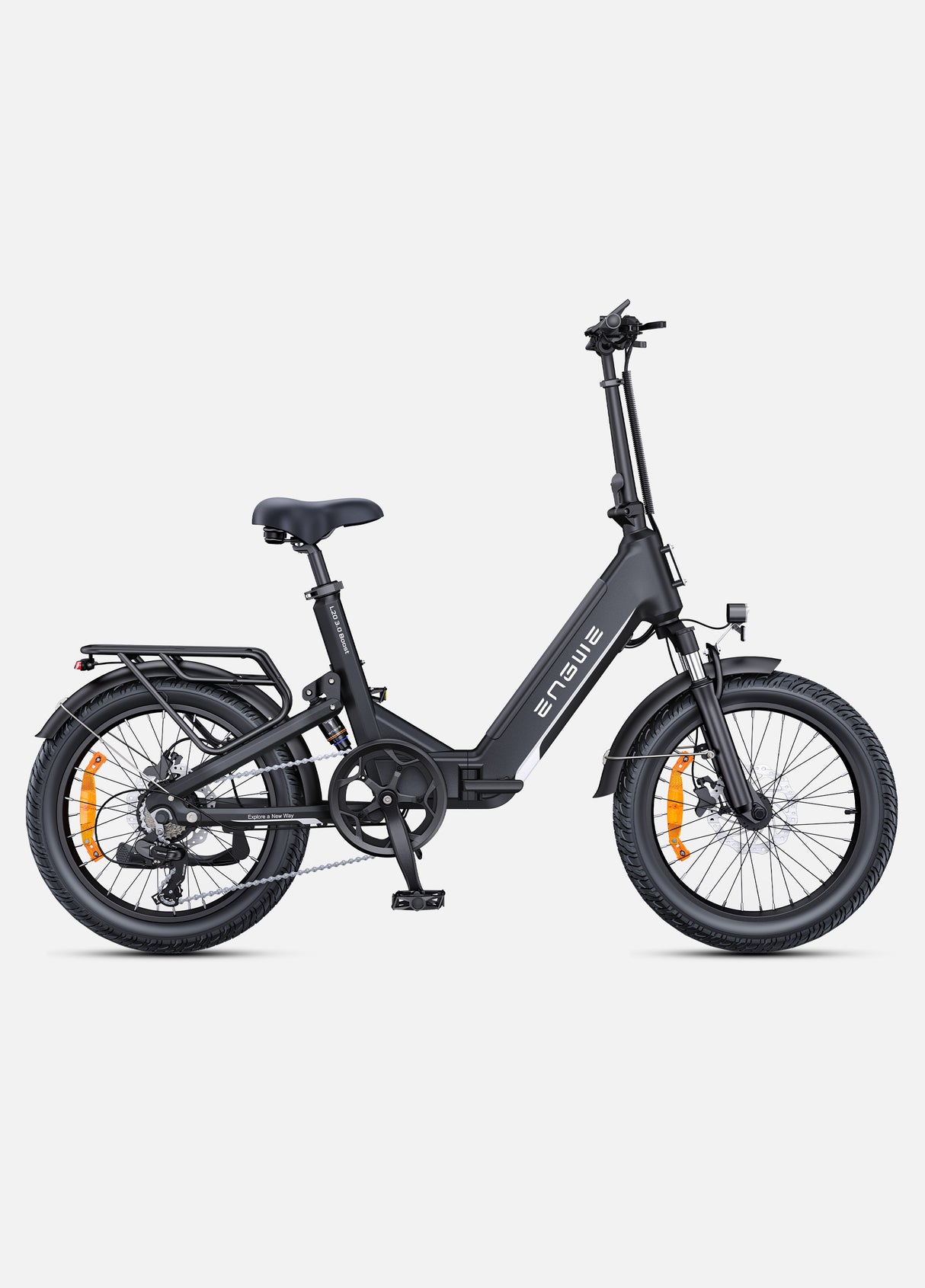

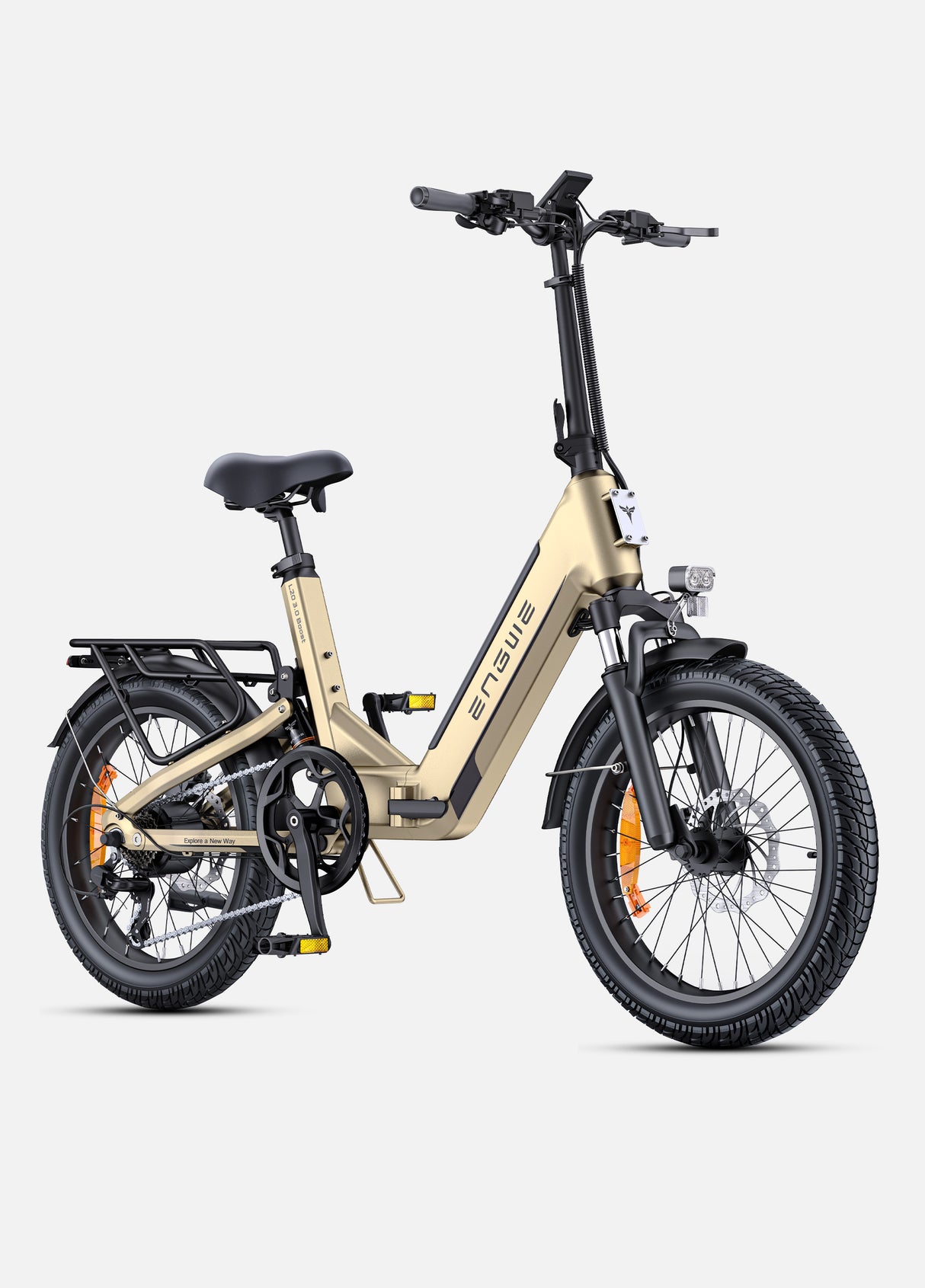

L20 3.0 Boost

250W 100Nm Mid-drive Motor Full Suspension Compact E-bike

£1,399.00 Out of Stock
Pre Sale
Color
Frequently Bought Together
  • +SELECTED
    N1 AIR Rear Rack [Pre-sale]
    £59.00
    £89.00
    Free
    £89.00
  • +SELECTED
    N1 AIR ST Rear Rack [Pre-sale]
    £59.00
    £89.00
    Free
    £89.00
  • +SELECTED
    Anti-Theft Alarm
    £19.00
    £29.00
    Free
    £29.00
  • +SELECTED
    Covers
    £35.00
    £45.00
    Free
    £45.00
  • +SELECTED
    Bicycle Lock
    £19.00
    £35.00
    Free
    £35.00
  • +SELECTED
    Phone Mount
    £19.00
    £25.00
    Free
    £25.00
show more Down

Full Suspension
System

8A
Fast Charging

648Wh
Removable Battery

75Nm
Mid-drive Torque

135KM
Max Range

TÜV
Certified

Specs
General Info
Model
L20 3.0 Boost
Max Load Capacity
150kg (330 lbs)
Ride Height
5'1" - 6'3" (155cm - 190cm)
Certification
CE (EN15194)
Pedal Assist
5 Levels
Fold
Yes
Lab Tested Range
135 km(Fully Charged)
Real-World Range
120 km(PAS 1)
100 km(PAS 3)
85 km(PAS 5)
Waterproof Ratings
IPX7(Waterproof Wiring)
IPX6(Display & Lights)
IPX5(Motor & Controller)
IPX4(Battery Box)
Terrain
Tarmac Roads & Bicycle Routes
Gravel-Paved Paths
Sandy Beaches & Grass
Country Roads & Paved Trails
Bike Weight
33.2 kg(73.2 lbs)
Gross Weight
Approx. 42kg(92.6 lbs)
Frameset
Frame Material
6061 Aluminum Alloy, Internal Battery, Step-Through Design
Frame Style
Compact, Full Suspension
Fork
Hydraulic, Adjustable Lockout, Aluminum & Iron
Rear Suspension
30mm Travel
Wheel Set
Tires
20" x 3.0" Urban Hybrid Tires
Puncture Protection
3mm Anti-Puncture Layer
Wheels
20-inch, 12-gauge Spokes, 36-hole, Double-Wall Aluminum, Black
E-Bike System
Motor
48V Hub Motor
Max Torque
75Nm
Assist System
Torque Sensor
Battery
48V 13.5Ah (648Wh), 21700 Cells, with BMS
Display
3.5" LED Color Display, ENGWE-Designed, Mid-Position, with Bluetooth
ENGWE App
App Control Available
Charger
54.6V 8A Output
Front Light
30 Lux with Integrated E-Horn
Rear Light
Automatically brightens When Braking or Shaking
Brakes
Brake Type
Hydraulic, Dual-Piston
Disc Rotor
180mm Front & Rear
Drivetrain
Chain
C8R8 Anti-Rust, 116 Links
Chainring
52T
Crank
170mm
Rear Derailleur
Shimano Tourney RD-TY300, 7-Speed
Shifter
Shimano SL-M315-7R
Cassette
7-Speed, 14T-28T
Pedals
Boron Steel, Non-Foldable
Cockpit
Saddle
ENGWE Soft Saddle
Seat Post
10-Level Adjustable
Handlebars
680mm Width
Stem
Foldable
Seat Clamp
Quick-Release
Size

Ride Height:5'1" - 6'3" (155cm - 190cm)
Max Load Capacity: 150kg (330 lbs)
Package Dimensions: 140*27*64 cm

A-Handlebar Height
110.2cm
B-Total Length
168.0cm
C-Reach
47.2cm
D-Standover Height
38.0cm
E-WheelBase
112.5cm
F-Minum saddle Height
82.0cm
G-Maximum saddle Height
102.0cm
Please note: There may be a difference of 0~5 cm between measured and actual data.

Folded Size: 100*51*75 cm

A--Height
75 cm
B--Length
100 cm
C--Width
51 cm
Please note: There may be a difference of 0~5 cm between measured and actual data.
What's in the box?
L20 3.0 Boost E-Bike
*1
Battery
48V 13.5Ah Lithium-Ion*1
Charger
54.6V 8A *1
Pedals
*2
Front & Rear Fenders
*1
Rear Rack
*1
Bike Kickstand
*1
Assembly Tools
*1
User Manual
*1
Please note: The product you receive is based on the option you selected to order.
FAQ

Q1: About shipping
*In Stock: Once your order confirmation is complete, we will begin shipping within the next 2 business days. This means that your item will start shipping on the 3rd business day after your order is confirmed.
*Pre Sale: Please refer to the product page for detailed pre-order shipping times.
*Out Of Stock: This means there is no stock in recently half a month.

*Shipped from UK warehouse, it takes approximately 5-7 working days to receive your e-bike. (Remote areas and islands are excluded from delivery.)
*If you have other special requirements or urgent delivery date, please communicate with our customer service team when placing your order, we will try our best to meet your needs.

  • Important:
    Please make sure your delivery address and phone number are accurate and available when placing an order.

    If your order is shipped by BJS carrier, the delivery person will contact the recipient twice by phone to reserve a delivery time.

    Change the delivery time for free(Please call the BJS carrier at 01922 645 650):
    You must change the new delivery time 1 day before the reserved delivery time. (For example, if you reserved a delivery at 1 pm today, you must reserve a new delivery time before 1 pm yesterday).

    You have to bear the re-delivery cost:
    Under the premise that the delivery time has been agreed upon with you if the delivery person arrives at the delivery address and no one receives the goods, the goods will be returned to the warehouse. You need to pay the re-delivery cost. To avoid the cost of re-delivery, you can call the delivery person and ask your family or neighbors to sign for the package if you are inconvenient to sign the package at that time.
    If you change the delivery time between 24 hours from the agreed delivery time, the re-delivery cost will be incurred. (For example, if you reserved a delivery at 1 pm today, your reserve request was made after 1 pm yesterday).

    Please note: The express delivery company cannot be specified. We will arrange the most suitable express delivery for your delivery address.

Please Note: Remote areas will incur additional shipping charges, our free shipping policy does not cover this additional freight. You need to pay for the additional freight.
Please click here to learn if your location is the remote areas.
We will contact you after you place the order regarding to the details of the freight through email. Please pay close attention to your email after you place the order.

Q2: Compliance with EU regulations
Please click here to view the CE certificate for the L20 3.0 Boost.

Q3: ENGWE Mapfour L20 3.0 Boost User Manual
Please click here to view Mapfour L20 3.0 Boost User Manual.

engwe uk

L20 3.0 Boost

The First Compact E-bike With Full Suspension

engwe uk
engwe uk

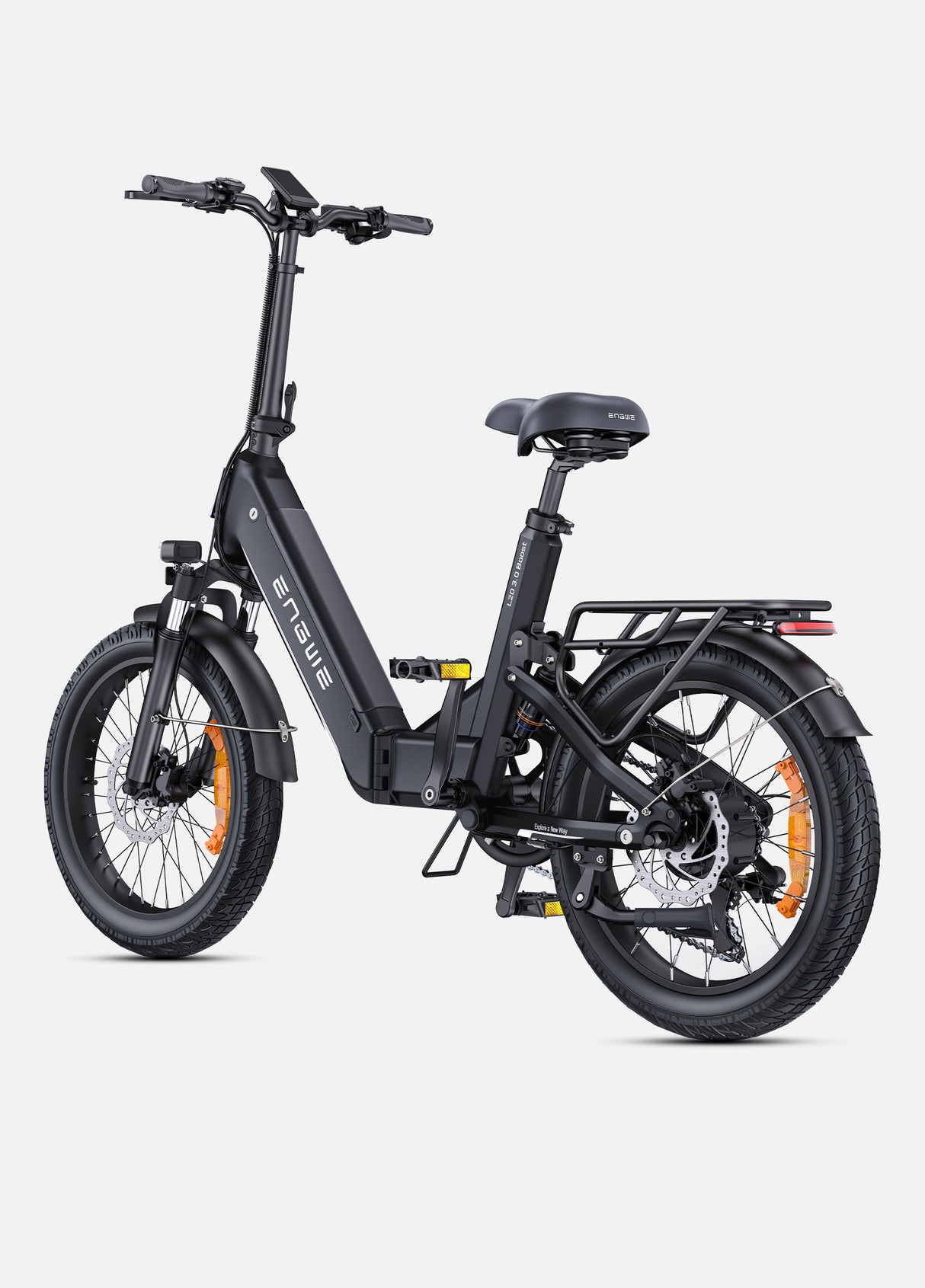

Compact with Full Suspension

Experience the first compact e-bike with a full-suspension design, perfect for city streets and beyond.

engwe uk

Ultimate Comfort

Engineered to absorb up to 90% of vibrations. Enjoy mountain bike-grade shock absorption on city streets.

engwe uk

Ultra-Fast 8A Charging

Ready in just 2 hours. No waiting, no hassle. The upgraded hidden battery design keeps it sleek and easily removable for convenience.

Times Faster Charging

Others

engwe uk

Boost Mode: Power Meets Compliance

Delivering an instant surge of 75Nm power, while ensuring full compliance with local regulations—giving you the best of both performance and legality.

engwe uk

135km Long-Range Battery

Powered by a high-capacity 648Wh battery. More distance, fewer recharges—designed for urban explorers.

Others

*Lab test data: The range was tested in the PAS mode 1 by the weight of 75kg with the temperature of 25°.

engwe uk

Real-World Range

*Test data: The range was tested in PAS mode by the weight of 75kg with the temperature of 25° on flat road.

engwe uk

Best 4+2 Travel Companion

The L20 3.0 Boost folds down compactly, taking up ≤0.3m³ of space for easy storage. Perfect for 4+2 travel, it fits seamlessly in your car, RV, or public transport, making every journey effortless.

engwe uk

Side-By-Side Comparison

Engineered for Performance and Comfort

engwe uk

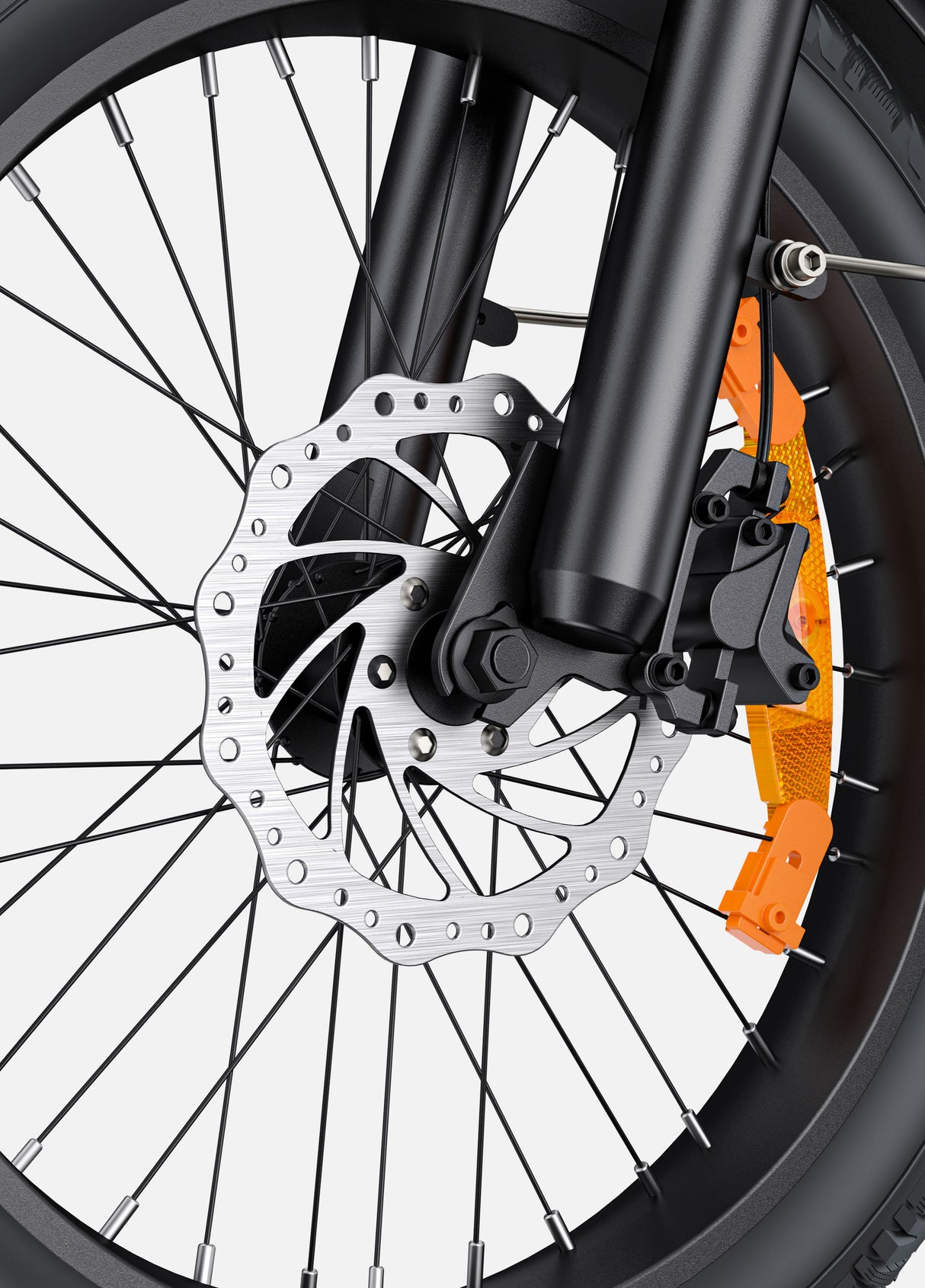

Hydraulic Brakes

Advanced hydraulic braking system delivers precise, effortless stopping power, ensuring safety and control on any terrain.

engwe uk

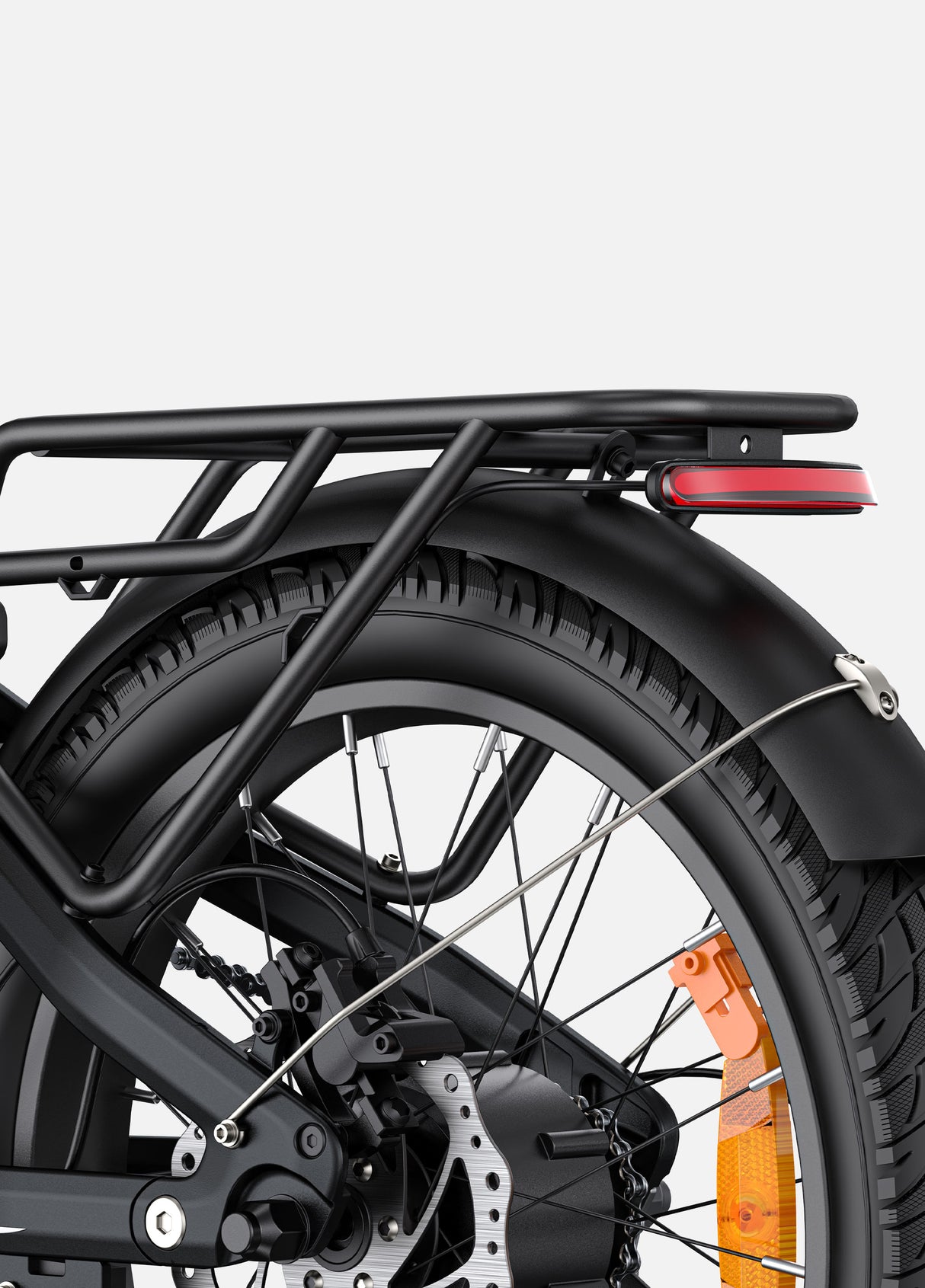

Rear rack

Sturdy, spacious rear rack let you carry groceries, gear, or essentials with ease, making daily errands effortless.

engwe uk

20"×3.0" Puncture Proof Tyre

Enhanced grip, shock absorption, and stability for city streets and trails—plus puncture-resistant tires for a worry-free ride.

engwe uk

250W Hub Motor

A reliable 250W hub motor delivers smooth acceleration, efficient energy use, and quiet operation for urban rides and daily commutes.

engwe uk

680mm Swept-Back Handlebar

Record every ride, track your stats, and stay connected. Use the ENGWE App to capture your journeys and ride smarter!

engwe uk

Ergonomic Saddle

Seamlessly shift between seven gears for smooth pedaling, effortless hill climbs, and optimal speed control in any riding condition.

engwe uk

Shimano 7-Speed

Seamless shifting for effortless acceleration, uphill climbs, and smooth cruising on any road.

engwe uk

Stay on Track

Record every ride, track your stats, and stay connected. Use the ENGWE App to capture your journeys and ride smarter!

engwe uk
